The rich functions and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. Multiple fusion modes and heating modes are available to meet various customers’ demands. Fiber loading becomes more convenient and accurate.thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance.

Previous
Next

    6481 Optical Fiber Fusion Splicer



    The splicer is capable ofdual-directional fusion.

    The auto environmental compensation system greatly improves adaptability of the splicer to extreme environments to ensure your work smoothly and continuously

    Request a quote
    Process

    realizes the integration of optics, mechanics and electronics, and it shall be kept clean and from strong vibration or shock during use

    Application

    mainly used for the permanent connection of fiber and is production test of fiber communication engineering and optical passive devices.

    Technology

    The high-brightness light source is used to illuminate the fiber, and the fiber is imaged on the CMOS sensor via a special microscope


    Parameter
    Precise fiber core alignment
     5mm fusion splicing for fibers of ultra-short cutting length
    7s fast fusion splicing
    64 images storage
     320 times image magnification
    10000 groups of fusion records
    300 groups of fusion splicing modes
    100 groups of heating modes
    Dual-direction splicing
    automatic splicing, intelligent pyrocondensation
     USB and SD card interfaces
    U-disk automatic software upgrade
    Built-in modular lithium battery
    supports 220 times of splicing and heating cycles
    6481 Fusion Splicer tools

    Water-resistant, dust-resistant, shock-resistant, greater environment adaptability
    Meet IP52 requirements.

    All-in-one fixer

    The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulated wires with a cladding diameter of 80～150μm.

    Graphical interfaces and touch screen

    6481 uses entirely new GUI and touch screen in design. Operators can set up the splicer and get to know relevant information of it
    simply and directly by graphical interfaces.

    Intelligent heat shrink

    A detection unit is embedded in the heater. The heating function will only be enabled when the protection sleeve is put in the heater, to avoid mishandling.

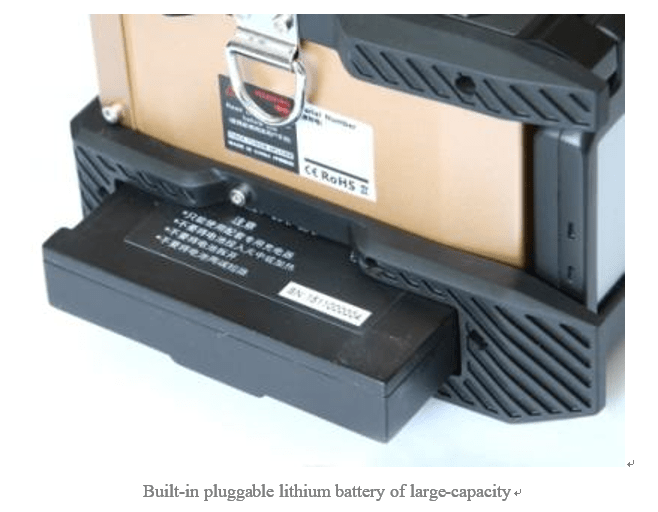

    Pluggable lithium-ion battery of large-capacity

    The built-in pluggable lithium-ion battery of large capacity can answer working demand lasting all day long (typical 220 counts of splicing and heating cycles).
    Built-in pluggable lithium battery of large-capacity-min

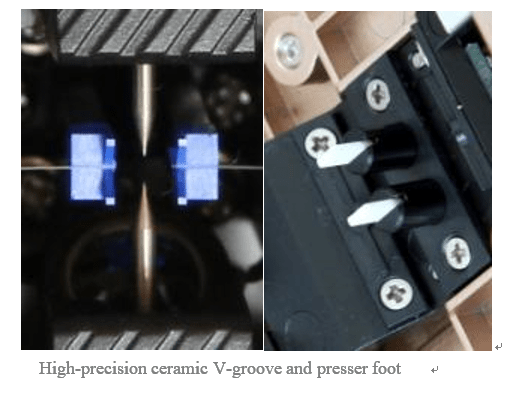

    Ceramic V-groove and ceramic presser foot

    Ceramic V-groove with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.
    High-precision ceramic V-groove and presser foot
    Prices

    Carrying case

    The carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.



    TYPICAL APPLICATIONS

    6481 Optical Fiber Fusion Splicer is compact equipment deploying the design of ergonomics, which delivers convenient operation and handy carrying case. Event very short fibers can be spliced easily. It’s capable of construction and maintenance of optical fiber line projects (including trunk), emergency repair, production and test of optical fiber devices and research and study in institutes.

    Fusion splicer typical application
