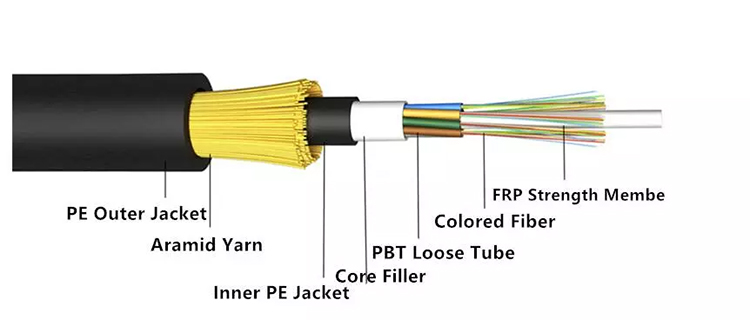

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.

    Structure

    covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member

    Application

    AFL-ADSS® (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required

    Technology

    Double jacket designs provide additional protection to the fibers for longer span lengths and higher strength requirements

    Model
    fiber cores
    OD (outer dia.)
    Weight
    kg/km
    Tensile
    Strength Long
    /Short Term
    Crush Resistance
    Long/Short Term N
    /100mm
    Bending Radius
    Static
    /Dynamic mm
    ADSS
    6-288
    7-20mm
    70-300
    3500/7000N
    300/1000
    15D/30D

     As its name indicates, there are no metallic components and the cable does not require a support or messenger wire. These attributes allow the cable to be installed live-line and in the power space of distribution lines.

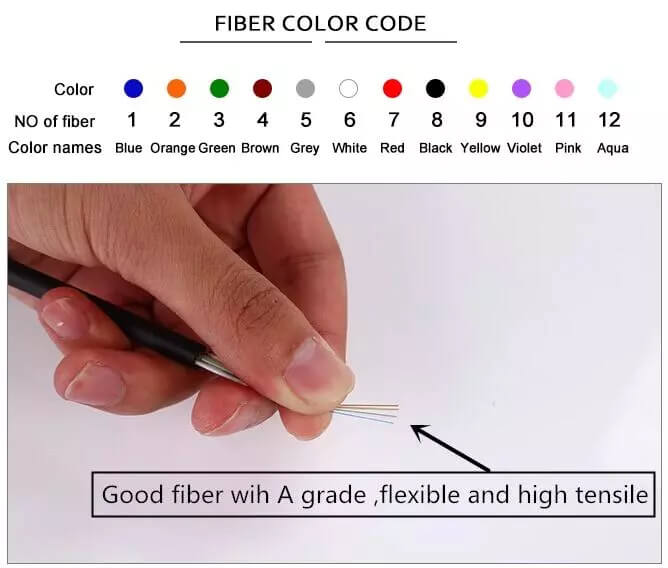

    fiber cable color

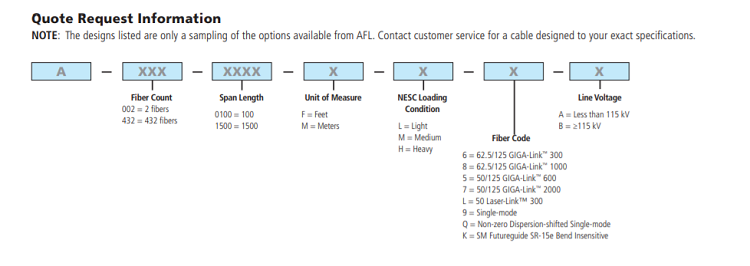

    adss fiber cable design

    AFL manufactures its own line of attachment hardware which simplifies the network design phase of a project while ensuring compatibility between the cable and related components.


    adss single jacket cable
    optical cable adss
    Packing

    1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer’s requirements are also welcomed;
    2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battenswet.
