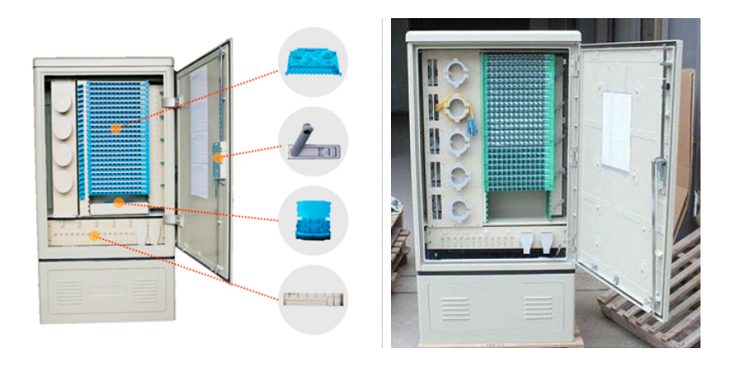

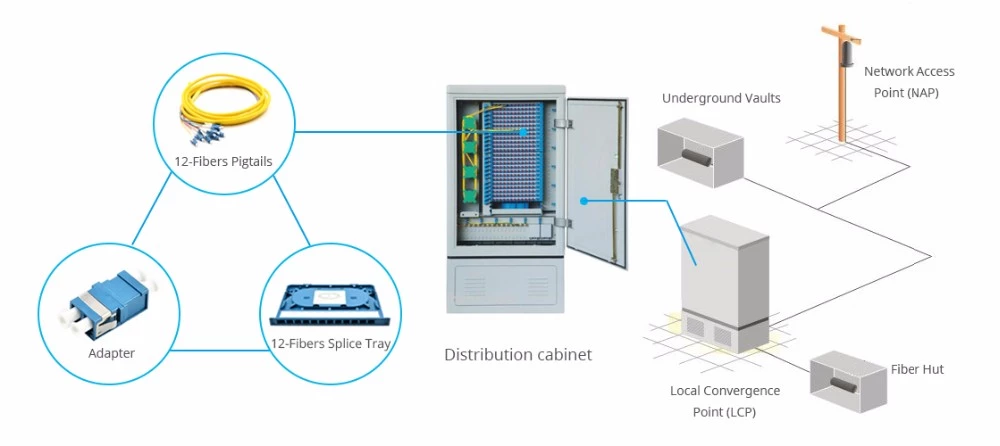

Fiber optic connection cabinet is an outdoor optical equipment that especially desig ned for outdoor optical fiber access network. Achieve the optical fiber connection, splicing, storage and distribution. It has two kinds of installation methods: floor mounted and aerial.
$99.99 – $155.90 / Piece | 1 Piece/Pieces (Min. Order)
Standard case body, made of high intensity, anti-corrosive, anti-aging special composit e material(SMC), adapting various bad weather condition, with reliable sealing, water-pro of and damp proof.
Process
Single/double door, dust proof and water proof. And protection level: 1P65.And the adapter can be ST, FC, SC etc.
Function
Fiber inlet, fixation and protection device should be provided. The fibers will be protected from being damaged when they are let in and fixed in the frame through these devices.
Technical
Connector Loss (included repeatability and exchangeability ): ≤0.50dB Insertion loss: ≤0.20dB. Return loss: PC≥45.0dB ,UPC≥50.0dB,APC≥60.0dB Insulating resistance: ≥2×104MΩ/500V (DC)
Operating Temperature | -40°C~+60°C |
Relative humidity | ≤95%(40°C) |
Atmospheric pressure | 70kpa-106kpa |
Insulated resistance | ≥2x10000M/500V(DC) |
Connector loss (insert, repeat) | ≤0.5db |
Return loss | pc ≥ 40db, UPC ≥ 50dB, APC ≥ 60dB |
Mechanical Durability Test | ≥1000 times |
Warranty time | 50 years |

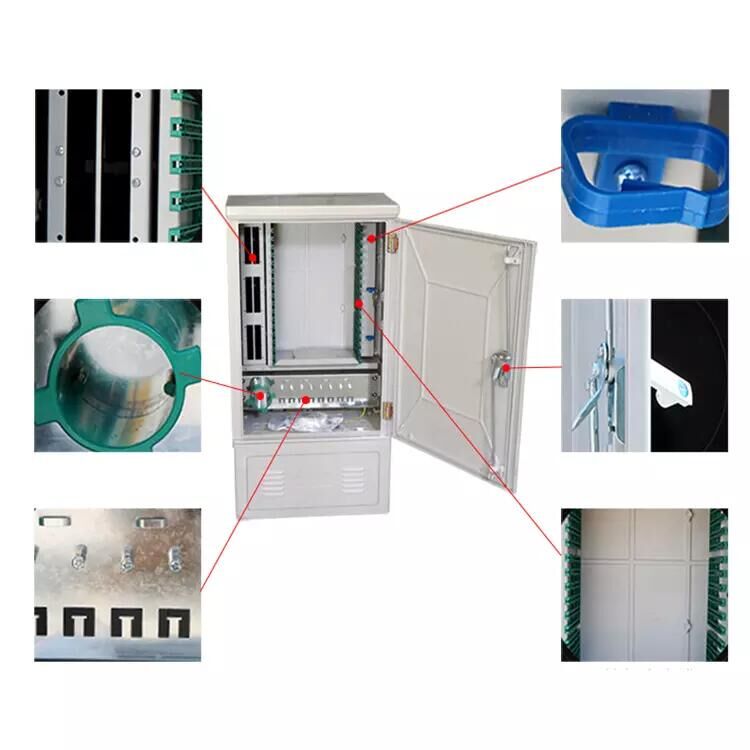

Termination device should be provided, which is used for the connection operation, construction, installation & maintenance. It could fix and protect the connector and make sure the connector even but not displaced and free from external influence, guarantee the coiled fibers and pigtails not damaged;
The protection of the fibers and pigtails The fibers are protected with protective device after being peeled and then will be fixed and let in to fiber termination device;
Capacity The capacity of each cabinet and each unit (according to the quantity of the adapters) should be regulated. The termination device, the coiling device for pigtails, adapter holders, pigtail & adapters should be compatible when fully collocated
