Loose tube is made of a high modulus plastic. The tubes are both filled with the water-resistant gel compound. We also use the phosphating steel wire as the central stength member here. The material of the sheath is PE, also can do the LSZH .

    Function

    outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable,

    Application

    suitable for installation in aerial or duct environment for long haul communication, LAN, especially suitable for the situation of high requirements to lateral pressure resistance.

    Technology

    The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. Metal strength member provides excellent strain performance.

    XS

    2-96 fibers
    98-288fibers
    Max. Tension (N)
    Short-term
    1500
    3000
    Max. Tension (N)
    Long-term
    600
    1000
    Max. Crushing Resistance (N/100mm2)
    1000
     Temperature range(°C)
    -40°C-- +70°C
    Min. Bending Radius(mm)
    Install
    20D
    Min. Bending Radius(mm)
    Static
    10D

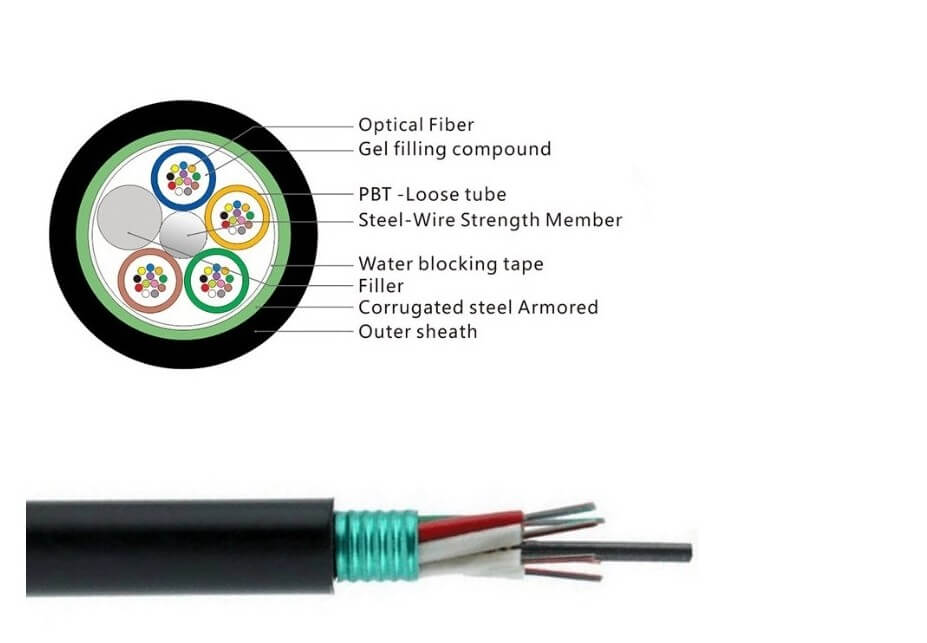

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with
    a water-resistant filling compound.

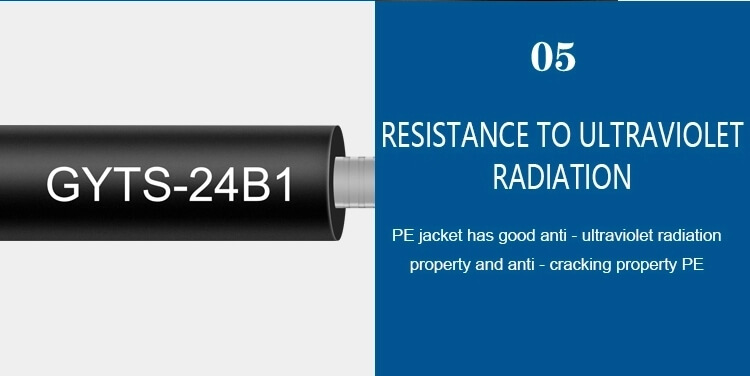

    gyts-24b1 optical cable
    high quality beam tube
    gyts pbt loose tube
    gyts cable imported grease
    fiber optic cable for gyts

    Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.


    gyts optic fiber cable
    Packing

    1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer’s requirements are also welcomed;
    2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battenswet.
