GYXTW Optic Fiber Cable

    GYXTW fiber optic cable is a type of fiber optic cable that is widely used in aerial application. This type of fiber optic cable has been praised due to its exceptional performance in Long Distance Symmetric role.

    Process

    realizes the integration of optics, mechanics and electronics, and it shall be kept clean and from strong vibration or shock during use

    Application

    suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation

    Technology

    the loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.double wire as strength member provides excellent strain performance.

    Fiber
    count

    Cable
    dia.(mm)
    Cable net
    weight(Kg/km)
    Min. bending
    radius(mm)
    Min. tensile
    strength(N)
    Min. crush
    pressure(N/100mm)
    Static state Dynamic
    state
    Short term Long term Short term Long
    term
    2-6 10.1 104 110 220 1500 600 1000 300
    8-12 10.6 114 110 220 1500 600 1000 300
    14-24 11.2 128 120 240 1500 600 1000 300

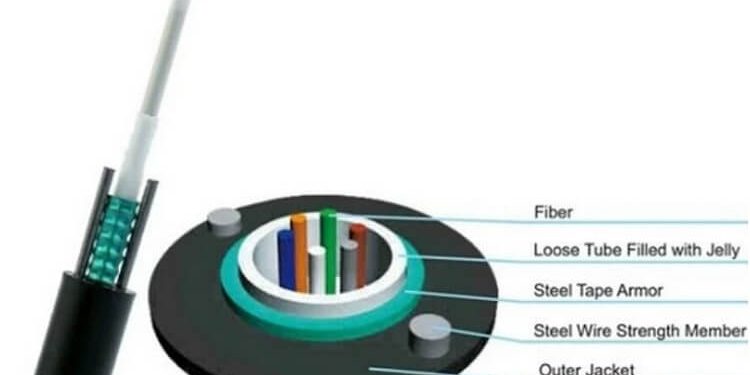

    The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.

    gyxtw fiber optic cable outdoor

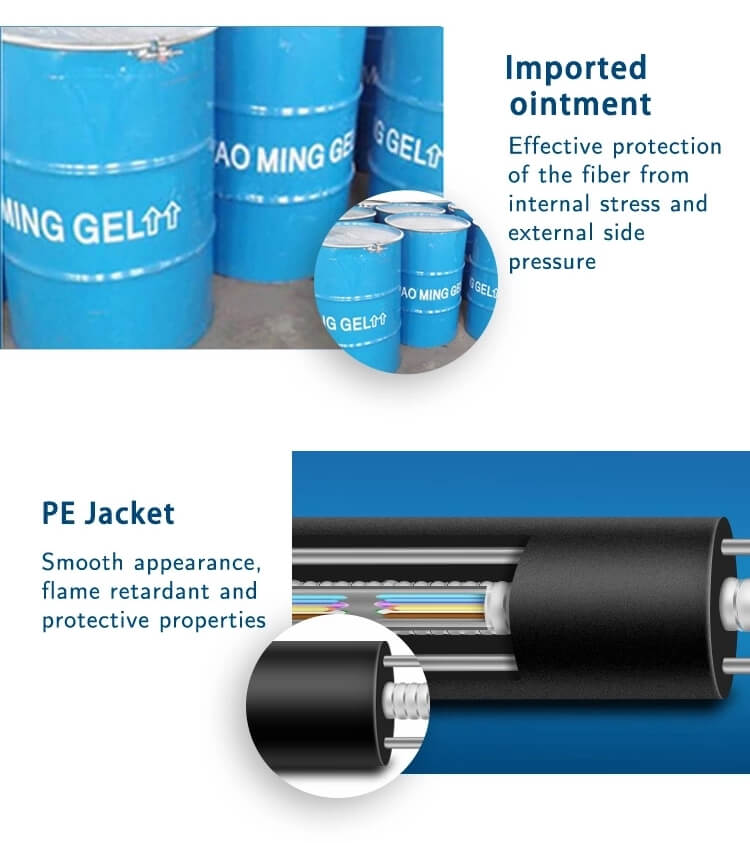

    GYXTW cable PE jacket

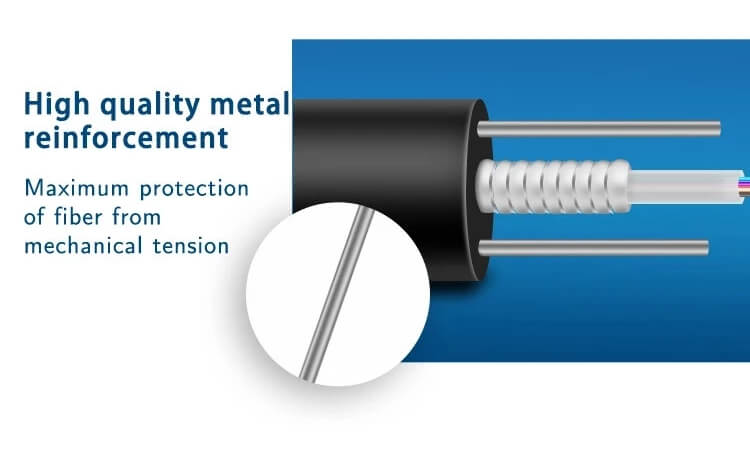

    Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.

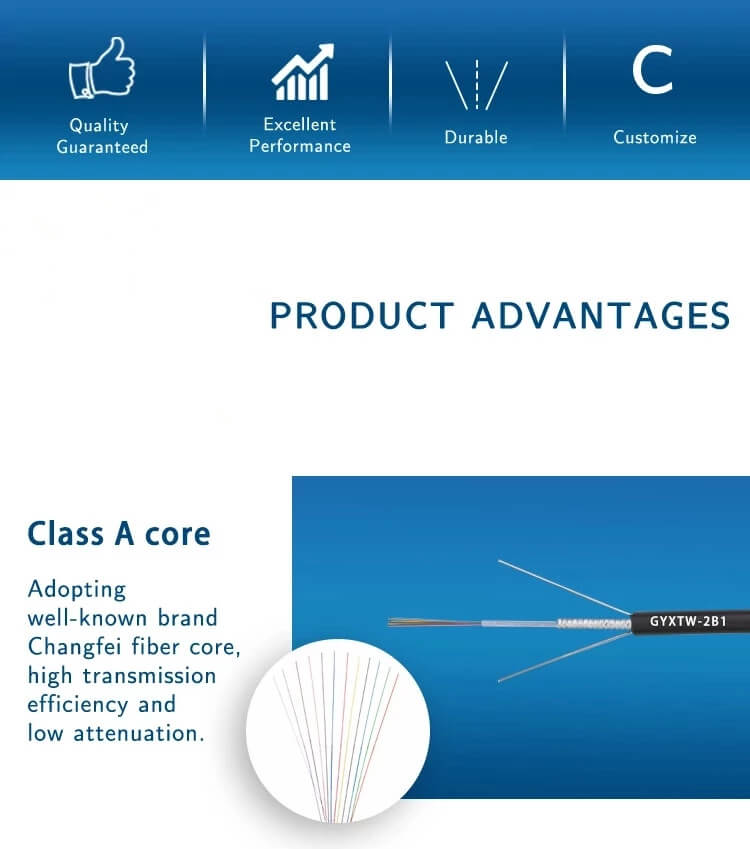

    GYXTW Fiber Cable

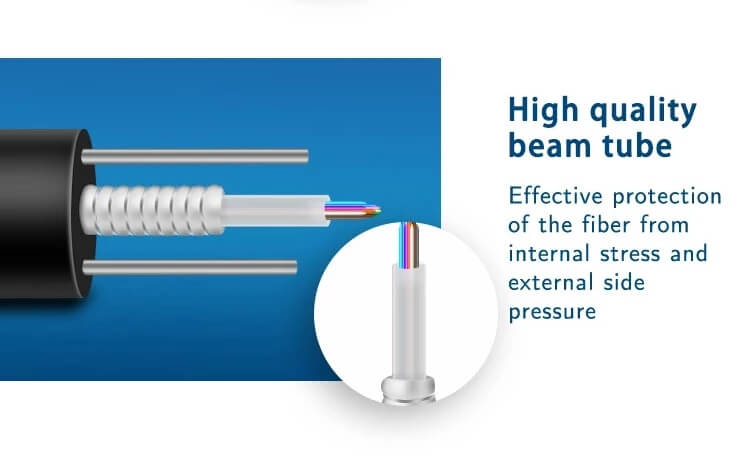

    high quality beam tube

    The central loose tube optical fiber cable GYXTW is suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network.

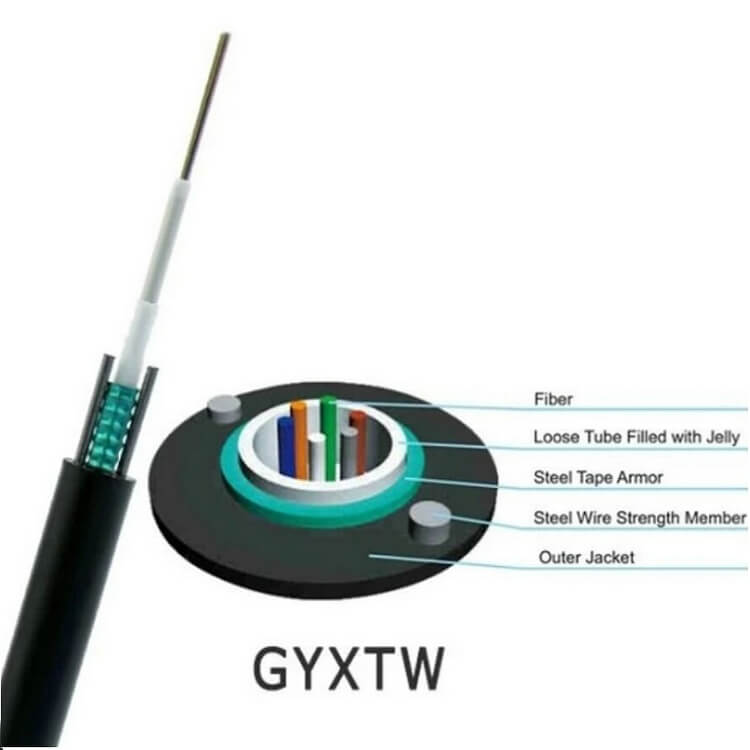

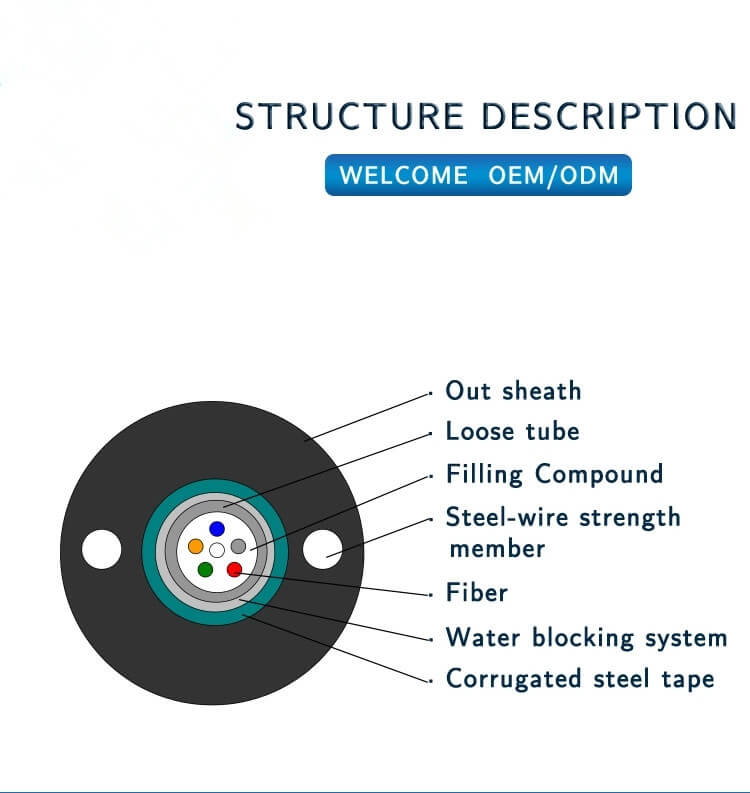

    GYXTW cable structure

    These central loose tube optical fiber cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.


    GYXTW Optic Fiber Cable
    Packing

    1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer’s requirements are also welcomed;
    2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battenswet.
