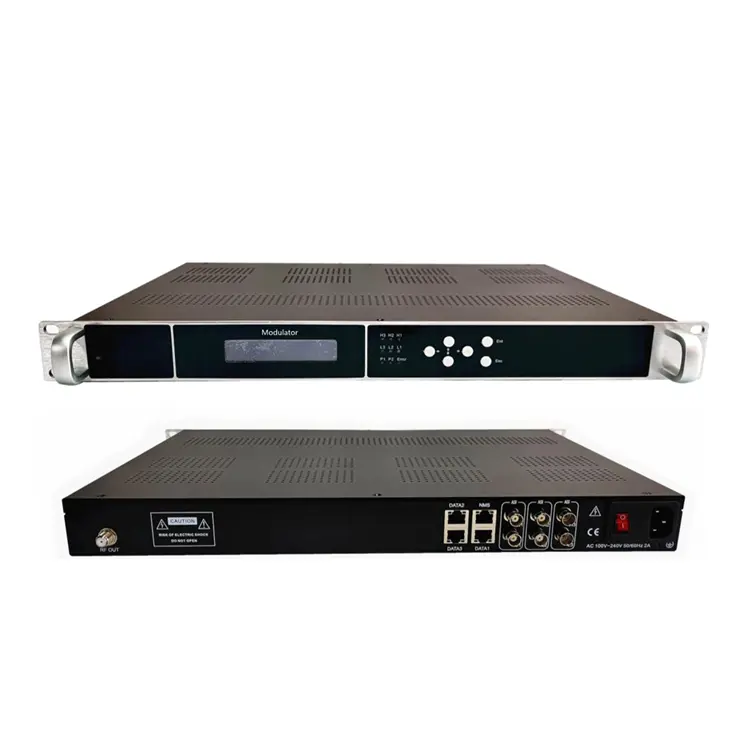

HPM316 is a cost-effective ISDB-T modulator developed according to ISDB-T (ARIB STD-B31) standard. It has 128*3 IP inputs. After
multiplexing and modulating process, it gives 16 ISDB-T non-adjacent carriers (50MHz~900MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Key Features
Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
Support 8 MPTS Output
Support 16 carriers ISDB-T modulating
Support 6 Serials ASI input (Any Multiplexing)
RF output : 50~900MHz , Any Settings
Integrated multiplexing and modulating functions
Web-based NMS management
Specification：
|
Modulation
|
Standard
|
ARIB STD-B31
|
||
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|||
|
Bandwidth
|
6M
|
|||
|
MER
|
≥40db
|
|||
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|||
|
Transmission Mode
|
2K, 4K, 8K
|
|||
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|||
|
RF frequency
|
50~960MHz，1kHz step
|
|||
|
RF output level
|
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
|
|||
|
RF Output
|
16 non-adjacent carriers output
|
|||
|
Multiplex
|
Max PIDs
|
256 per channel
|
||
|
Functions
|
PID remapping (auto/manually optional)
|
|||
|
PCR accurate adjusting
|
||||
|
PSI/SI table automatically generating
|
||||
|
IP Input
|
3*128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast
|
|||
|
ASI input
|

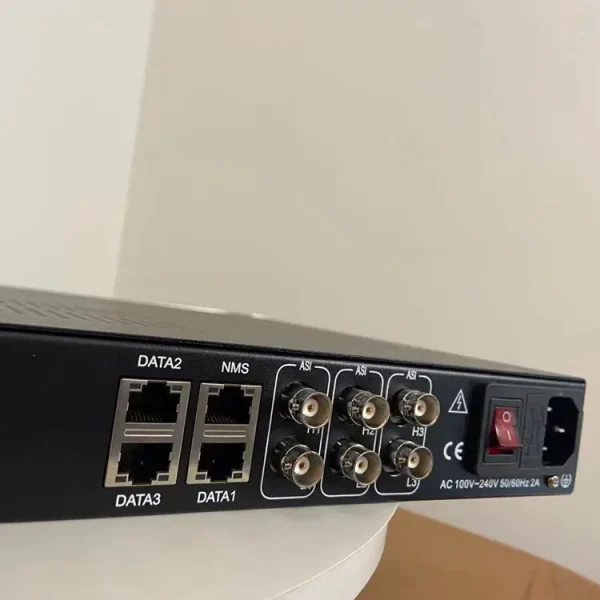

6 ASI input, DVB standard, BNC connector
|
|||
|
System
|
LCD/Keyboard operating and web-based NMS support
|
|||
|
Ethernet software upgrading
|
||||
|
General
|
Dimension (W*D*H)
|
482mm×340mm×45mm
|
||
|
Temperature
|
0~45℃(work)；-20~80℃(storage)
|
|||
|
Power supply
|
AC 110V±10%，50/60HzAC 220V±10%，50/60Hz
|
|||
