Description

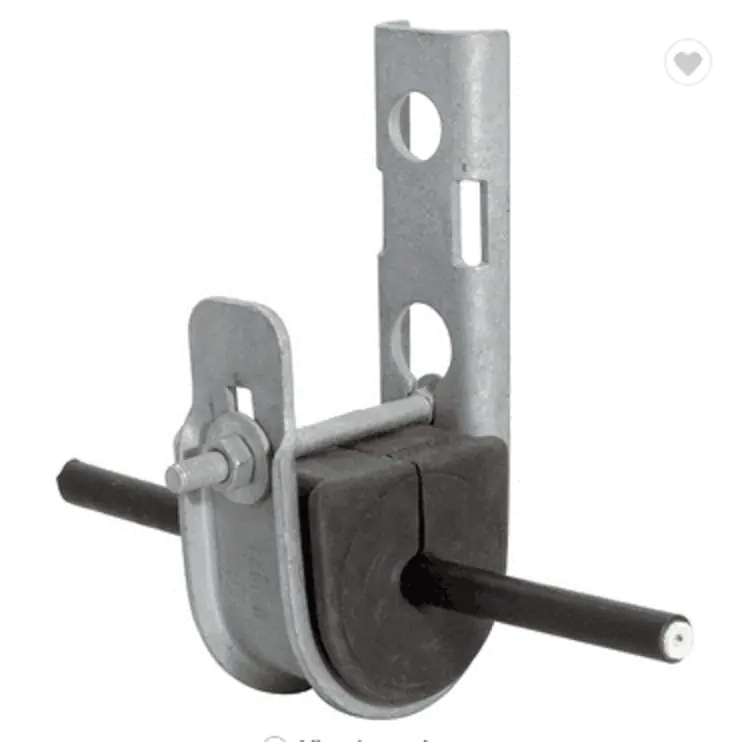

Compact J hook clamps JHC enable the suspension of aerial fiber optic round cables with ADSS structure, Ø 5 to 17mm, deployed on distribution networks with spans up to 70m. JHC suspension clamps can be installed directly on the pole with pole band 20mm or a pole head bolt 1/06. These clamps can also be installed on a pigtail hook bolt BQC Ø 12 / 14 / 16mm, on a suspension bracket with hook bolt CS + BQC 12 x 50mm or above the curved plate and the pole head bolt’s nut with a simple nut HM14 type.

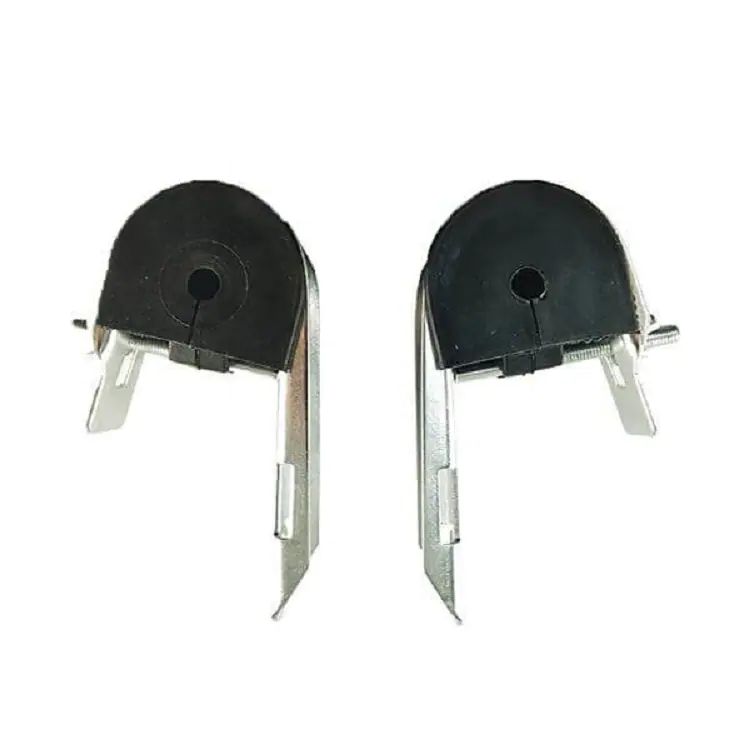

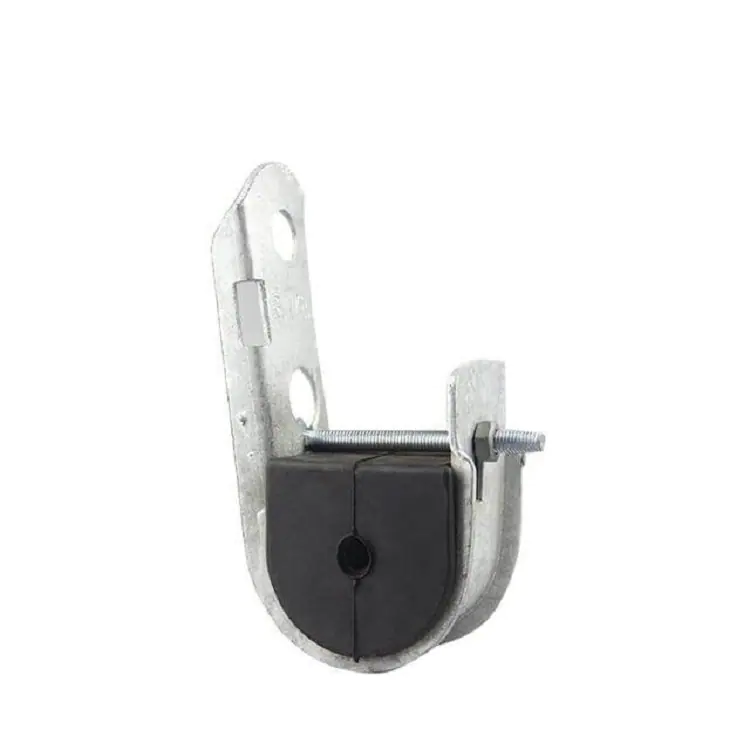

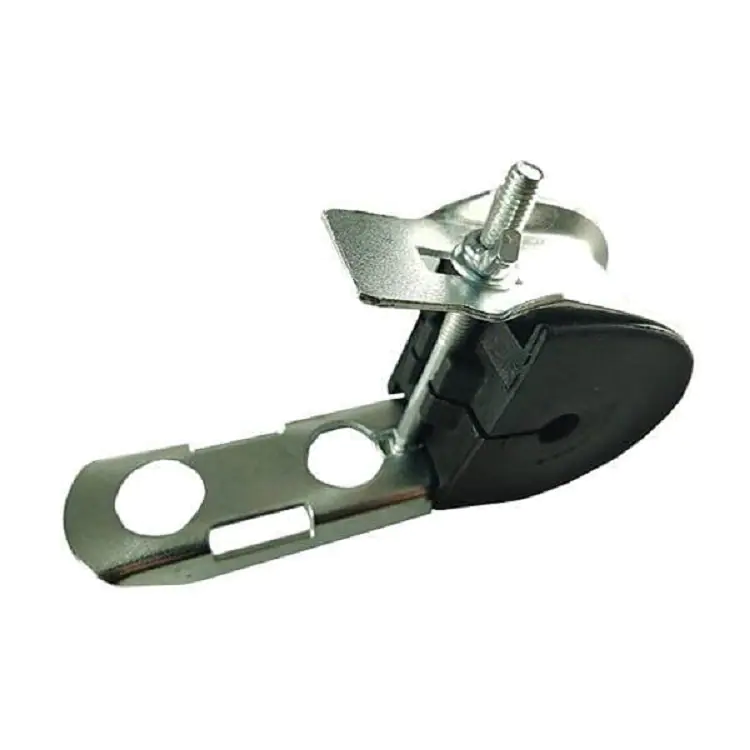

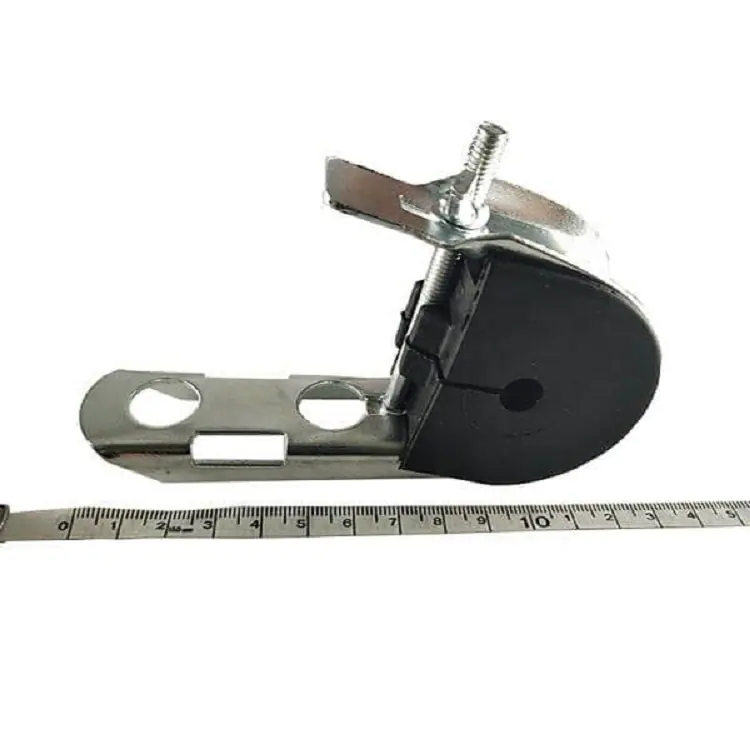

The JHC are designed with a deported galvanized steel body and an elastomer protective sleeve. Clamp fixes with a bolt tightening system.
Key Features:
Cable Type: FO Round
Cable Span: Span up to 100 meters
Breaking Load (KN): 12 Kn
Suitable for Cable: Ø 10~15mm ADSS cable
Material of Body: Galvanised steel
Insert: UV Protected Neoprene
Screw: Pretected steel
Application: Overhead Line Accessories
Weight:0.17Kgs
Item | Parameter | |
Suitable Cable Diameter Range (mm) | Ø10~15 mm | |
Breaking Load (KN) | 12 Kn | |
Cable span | Span up to 100 meters | |
Material | Aluminum; Polyethylene | |
Application | ADSS Suspension clamp, fixed | |
Weight: | 0.17Kgs | |
Insert |
Material |
UV protected Neoprene |
Color | Black | |
Body | Material | Galvanized steel |
Screw: | Pretected steel | |
Screw and Nut | Quantity (set) | 1 |
Material | Steel |
