Sale!

DVP 740 760 Fiber Optical Fusion Splicing machine SM MM fiber fusion splicer

Compact & Light weight
Applied for Fibers ,Cables and SOC(splice-on connector)
Integrated Holder Design
Fully Automatic , Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving function
4.3 inch Color LCD monitor
USB&DC interface

Product Description:
1. It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.
2. 8 Sec. splice time, 40 Sec. tube-heat time.
3. Reversible monitor with control panel on each side.
4. Compact & Light weight (3.3kg with battery).
5. SYSTEM TEST ensures the best working condition.
6. Auto check fiber end face , Auto calibrate parameters.
7. Store 8000 groups of splice results, and can connect to computer
8. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.
9. Large capacity internal battery ( Liion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)

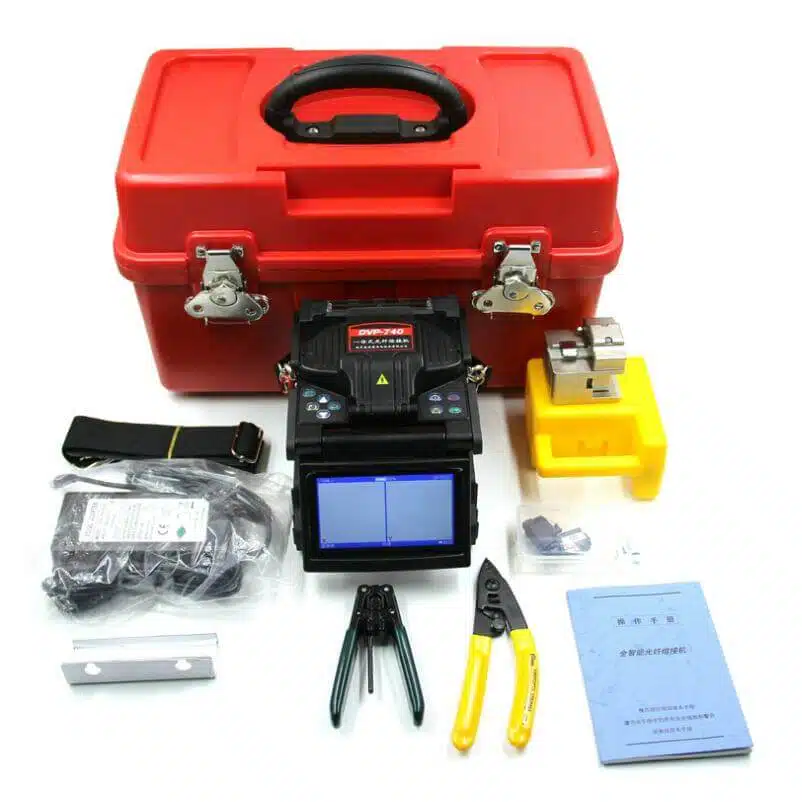

DVP 740 760 5 DVP 740 760 Fiber Optical Fusion Splicing machine SM MM fiber fusion splicer

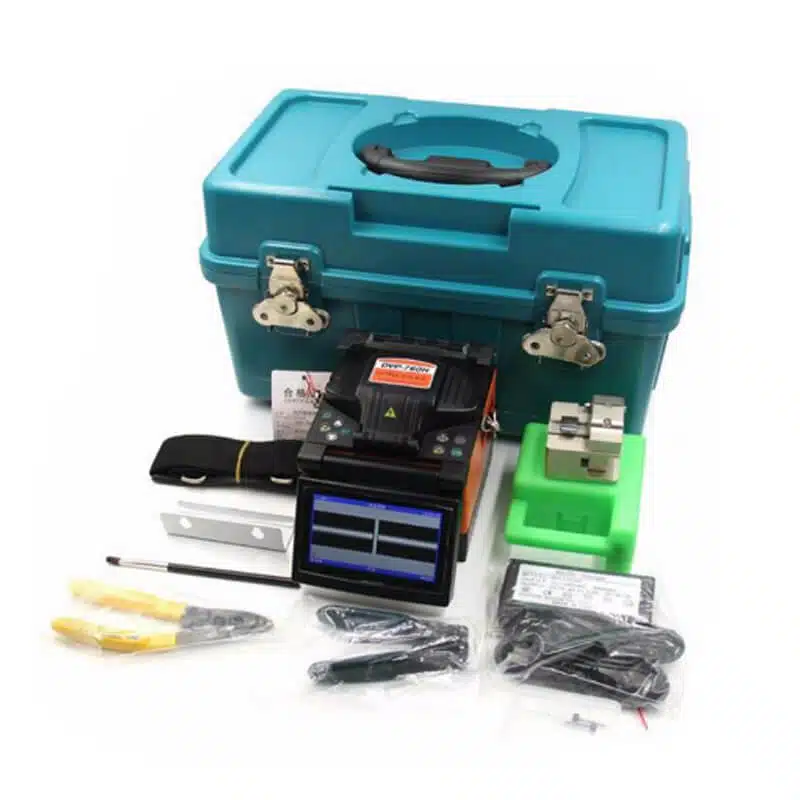

DVP 740 760 2 DVP 740 760 Fiber Optical Fusion Splicing machine SM MM fiber fusion splicer

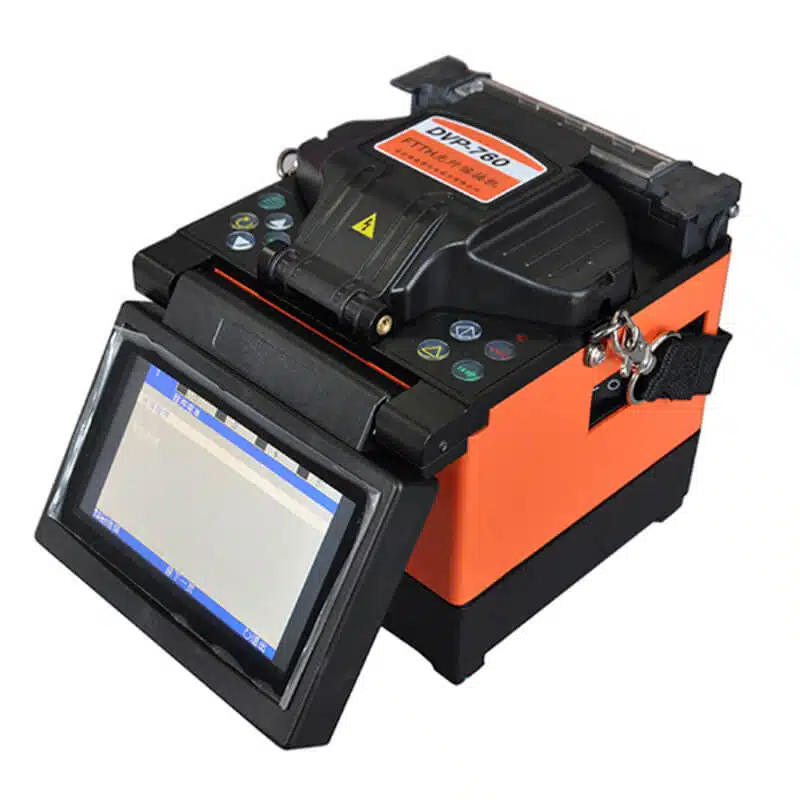

DVP 740 760 4 DVP 740 760 Fiber Optical Fusion Splicing machine SM MM fiber fusion splicer

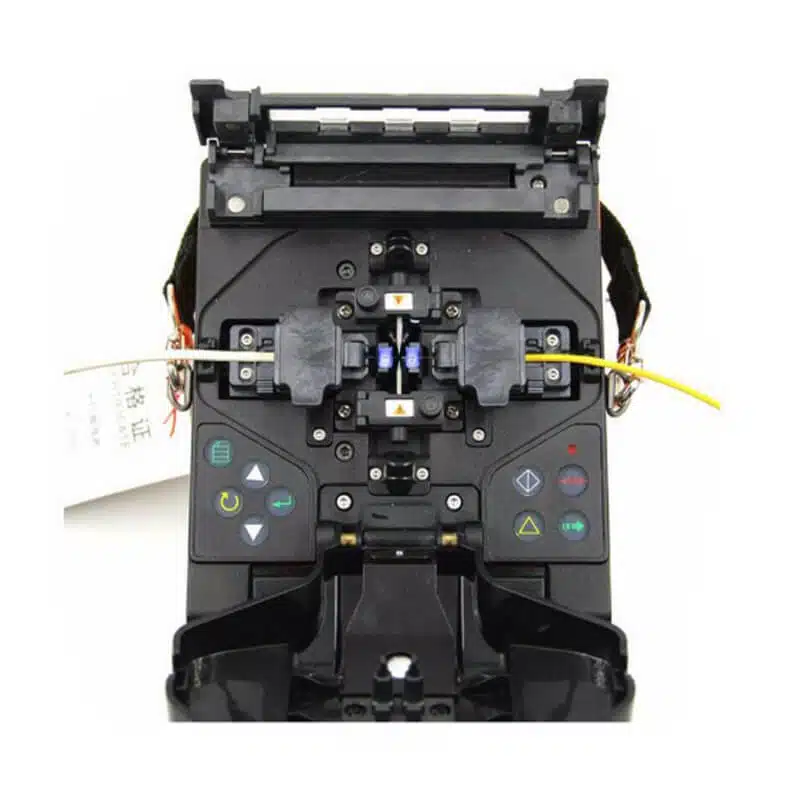

DVP 740 760 3 DVP 740 760 Fiber Optical Fusion Splicing machine SM MM fiber fusion splicer
