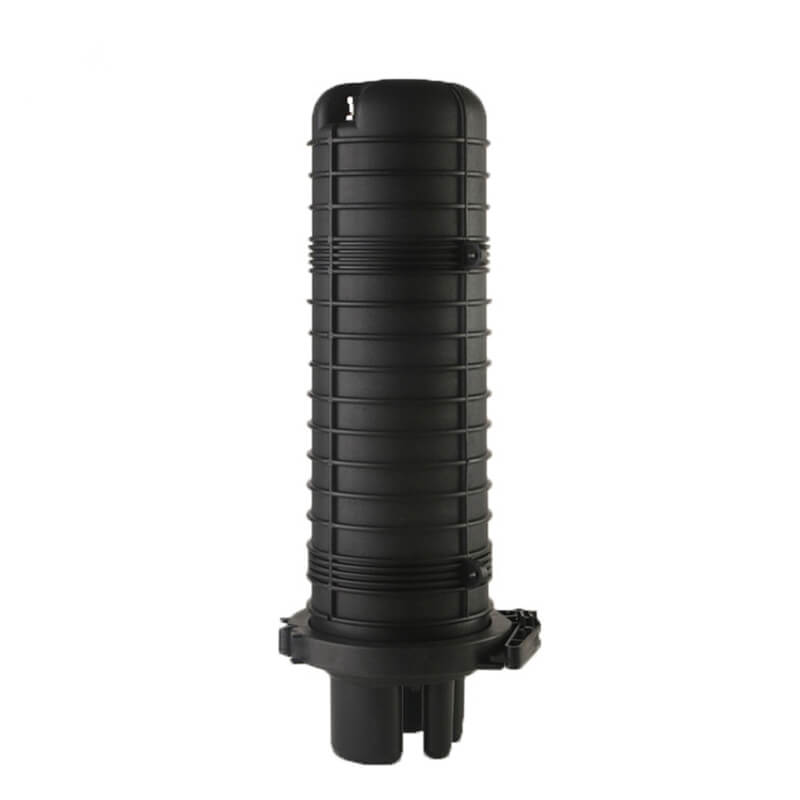

Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure

OEM / ODM /OBM Services

Original price was: $19.00.Current price is: $12.00.

Fiber optic splice closure The closure can be used in duct, buried, overhead..etc
High quality impact material.pp and internal is PP,ABS
Designed for ftth with adapter if need.
Fiber storage with big basket


Description

Product Description

Fiber closure is used for connecting and protecting singal core or bunch cables. It can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always aim to the R&D of communication equipment. Our fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb …(FTTH/FTTC).



Features:

1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material.pp and internal is PP,ABS
1.3 Designed for ftth with adapter if need.
1.4 Fiber storage with big basket
1.5 Modular fiber management system
1.6 Cable diameter range: 8~20 mm
1.7 Sealing way of cables:Mechanical seaing by silicon rubber
1.8 Quality warranty:2 years
1.10 IP rating is IP68



Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure

Key Features

1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.

Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure

Application

1.Be suitable for Aerial,Duct and Direct Buried application.
2.CATV environment, Telecommunications, Customer premises environments, Carrier Networks and fiber optic networks.



Main Technical Parameters
Cable ports
4 Entires(2 on each side)
Number of fiber fusion
12 (bunchy)
Splice tray cores
24 (bunchy)
Max capacity of fiber
96 (bunchy)
Working temperature
-40℃~65℃
Insulation resistance
>2×104MΩ
Opening Type
Anti-removable Screw-Type
Installation Type
Aerial
Sealing structure
Sticky cincture

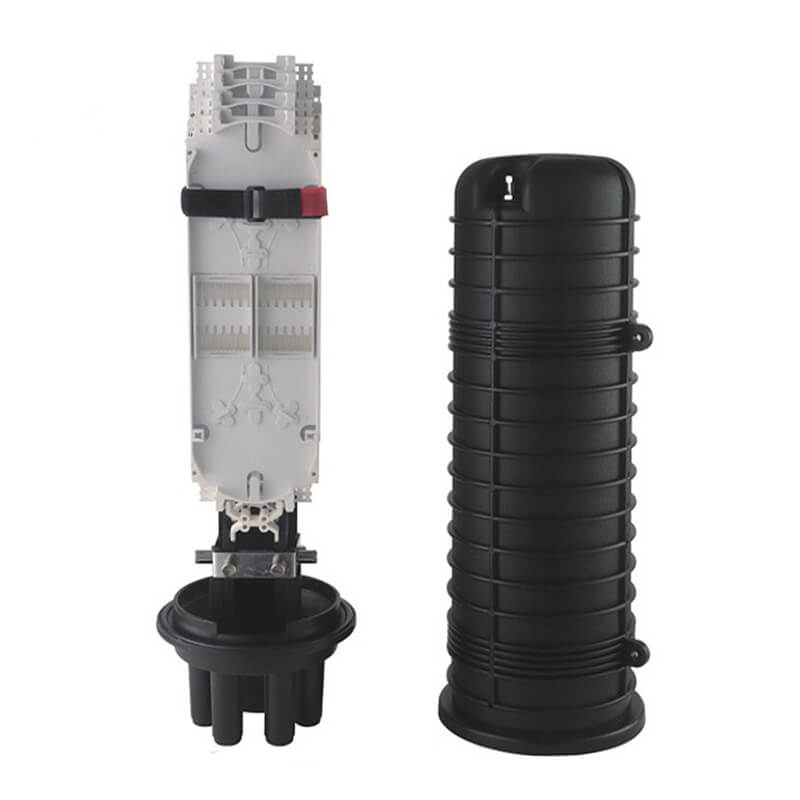

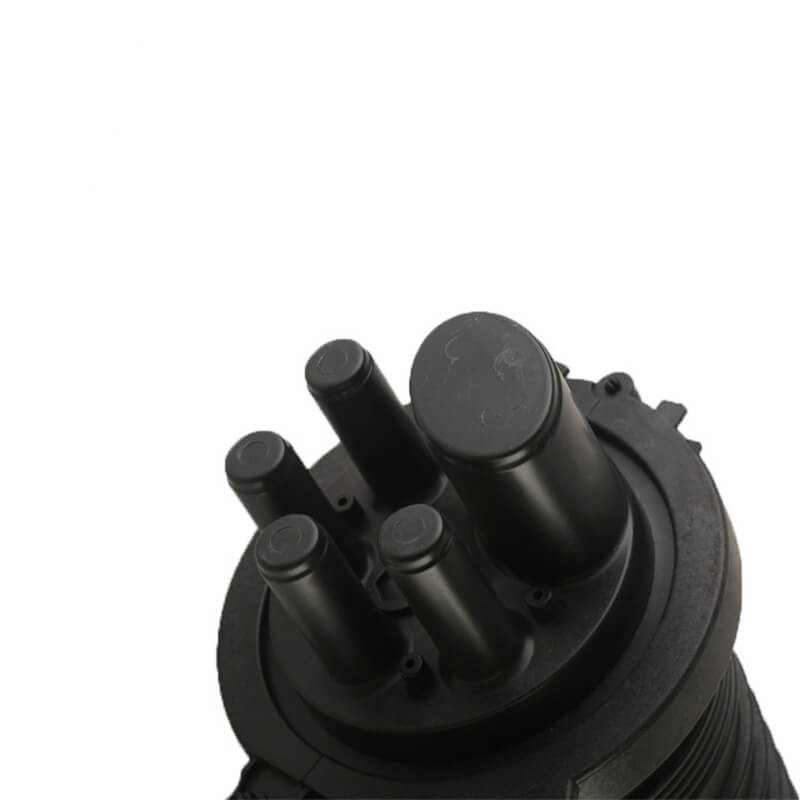

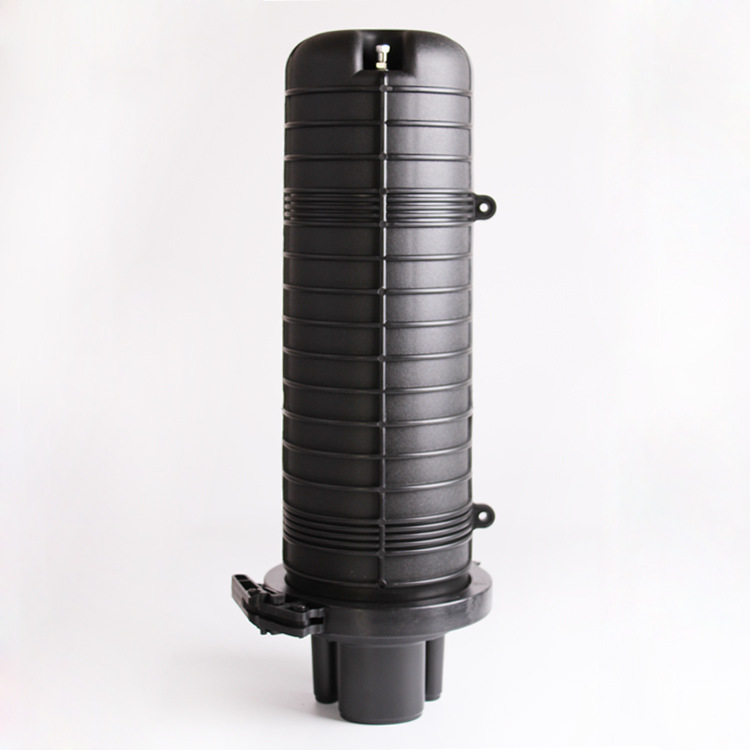

Detailed Images

Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closureDome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure

Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure

Dome type 24 48 96 144 core fiber cable joint box Fiber optic splice closure
