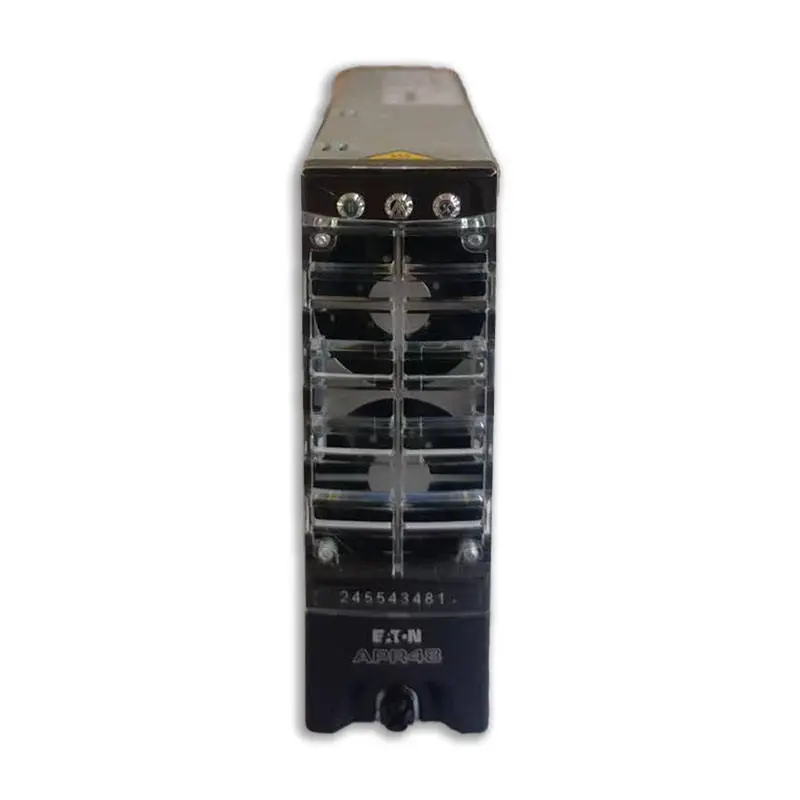

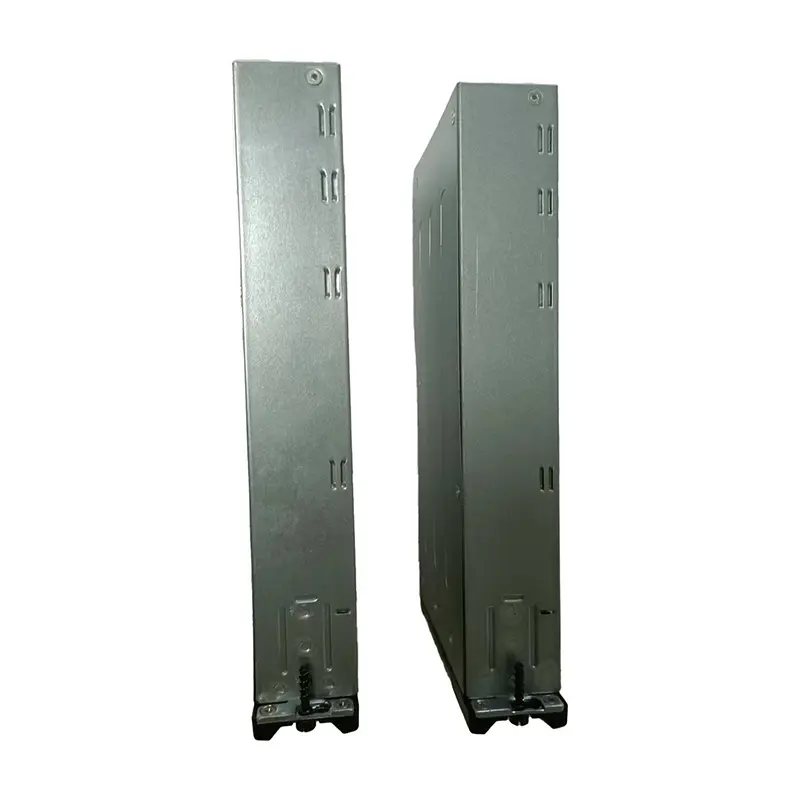

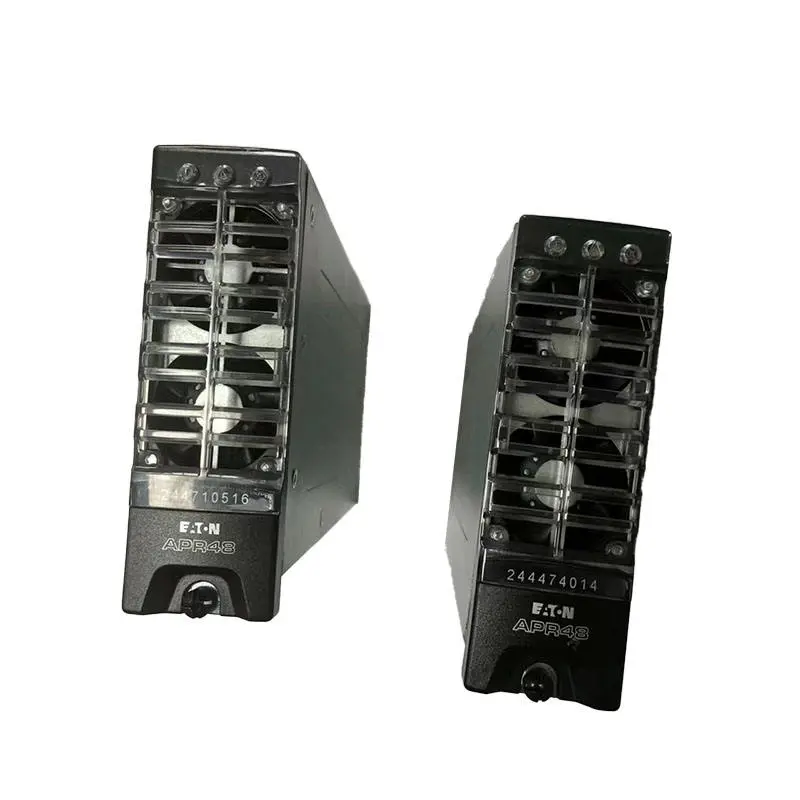

APR48-3G – Eaton 1800W Power Rectifier Module 120V AC Input


Request Quotation

Product Description

APR483G Access Power Rectifiers are designed specifically for network access applications such as cellular base stations, customer premises equipment and road- side cabinet installations.

The high-power density allows as little as one unit of rack space to be occupied by power, therefore maximizing space available for telco equipment.The APR48-3G rectifier incorporates a combination of leading-edge high-frequency switch-mode technology for a flexible and efficient DC power source, with fan cooling that further contributes to its high overall reliability.
The APR48-3G is a high powered rectifier with 1800W output. It is designed for operation at up to 70°C (158°F) and under a wide range of AC power conditions. These features make the APR483G perfectly suited to the wide variety of equipment and demanding environmental conditions found in network access applications.
The APR48-3G also has power factor correction and is up to 92% efficient, with optimum performance available at typical load currents. Together these give the APR48-3G some of the lowest running costs for any DC power system of its type available.
Operating with the Eaton SC100 or SC200 system controller, the APR48-3G rectifier modules will provide years of cost-effective and trouble-free service for your 48V network access equipment.
* Fast on-line expansion of rectifiers (hot-swap)
* Automatic set-up from system controller
* Intelligent microprocessor controlled
* Industry leading power density
* High efficiency and unity power factor
* Wide AC supply conditions
* Wide output voltage ranges
* Constant power output
* Compliance with international standards

Technical Specifications
* Input: 220/240V, 50/60Hz (nominal)
* 175-275V full output power up to 50°C (122°F)
* Power Factor: >0.99 (50 – 100% Output Current)
* Efficiency: 92% (50 – 100% Output Current)
* DC Output: 1800W 48V(maximum)
* Operating Temperature: -40°C to +70°C (-40°F to +158°F)
* Output current isderated above: 50°C (122°F) and below -10°C (14°F)
* Cooling: Temperature controlled, high reliability fans
* Dimensions:3U 133mm [5.25”], 42mm [1.65”], l
* Weight: 1.7kg [3.7 lb]
