Product Description
Features:

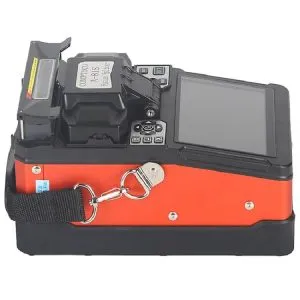

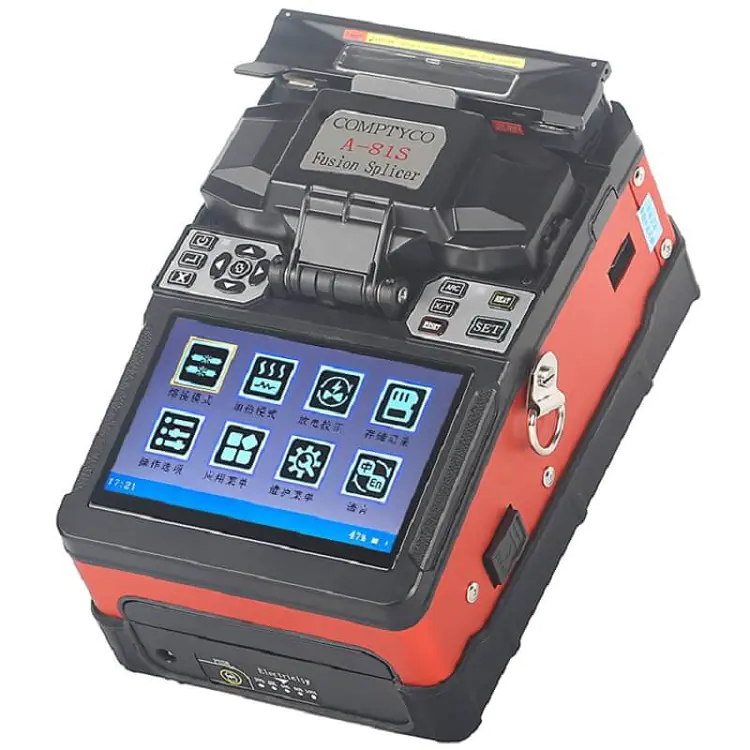

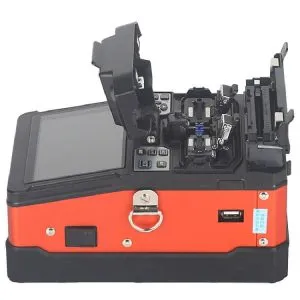

– A-81S optical fiber welding machine.
– Chinese and English bilingual switch, manual in English.
– Demolition of three-in-one universal fixture (pigtail, bare fiber, leather line).
– Core alignment, 7-9 seconds welding, 9-26 seconds heating (heating time can be set, the heating temperature can be adjusted).
– A-81S optical fiber welding machine.
– Chinese and English bilingual switch, manual in English.
– Demolition of three-in-one universal fixture (pigtail, bare fiber, leather line).
– Core alignment, 7-9 seconds welding, 9-26 seconds heating (heating time can be set, the heating temperature can be adjusted).
|
Applicable Fiber
|
SM, MM, NZ-DS, EDF ,Pigtail
|
|
Fiber cleaved length
|
10~16mm(Coating diameter, 250µm) 16mm(Coating diameter,250 ~ 1000µm)
|
|
Protection Sleeve Length
|
20mm, 40mm, 60mm
|
|
Fiber aligning method
|
Core or clad aligning
|
|
Storage of splice result
|
4000 results,20 parameter per result
|
|
Electrode life
|
More than 3000
|
|
Display screen
|
5.1 TFT inch color LCD monitor
|
Specification
|
Fiber alignment
|
Precise alignment/cladding alignment / fiber core alignment
|
|
Splicing time
|
9S
|
|
Heating time
|
26S (configurable heating time and adjustable heating temperature)
|
|
Applicable Fibers
|
SM (G.652&G.657), MM (G.651), DS (G.653), NZDS(G.655)and self-defined optical fiber types
|
|
Splice Loss
|
0.02dB(SM),0.01dB(MM) 0.04dB(DS/NZDS)
|
|
Return loss
|
Better than 60DB
|
|
Tension Test
|
Standard 2N
|
|
Magnification
|
300 for X or Y view
|
|
Screen
|
5 inch TFT color display
|
|
Heat shrink bush
|
60mm/40mm and series of miniature bush
|
|
Splicing loss storage
|
5000 latest splicing results are stored in the built-in storage
|
|
Weight
|
1906g
|
