EG8145V5 GPON ONU,4GE+1TEL+WIFI(5.8G/2.4G) Dual band
- Flexible application: PC, STB and other home terminals can be arbitrarily inserted on the Ethernet port; support SIP and H.248
two protocols adaptive, easy to connect with softswitch. - Plug and Play: Supports remote automatic provisioning of voice, broadband, multicast and other services through the OMCI
protocol and TR069 without on-site configuration. - Remote diagnosis: support POTS port external line test, call emulation, PPPoE dial-up emulation, and easily realize remote fault
location.

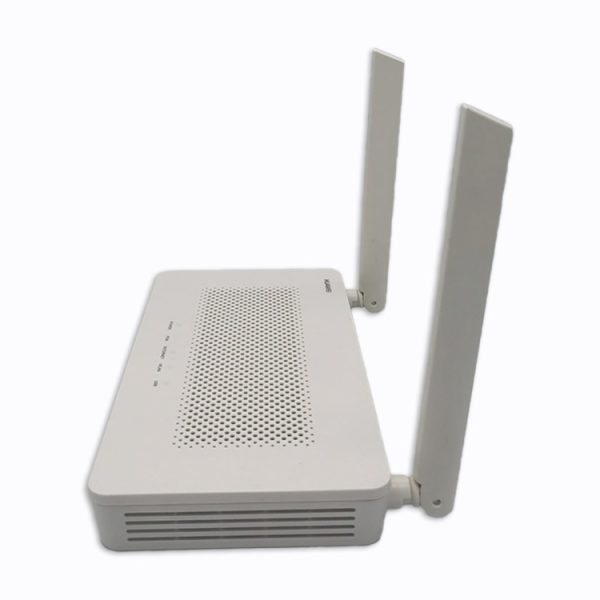

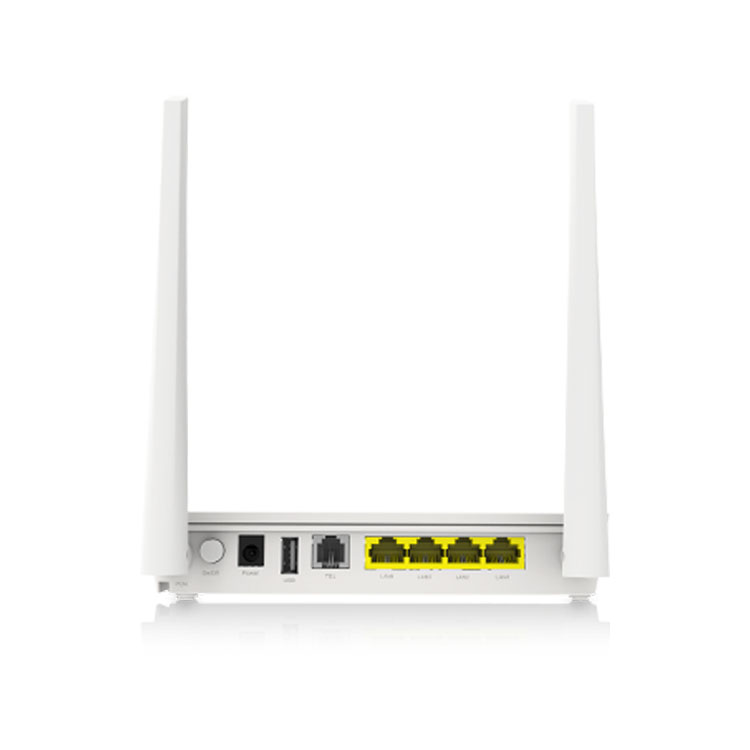

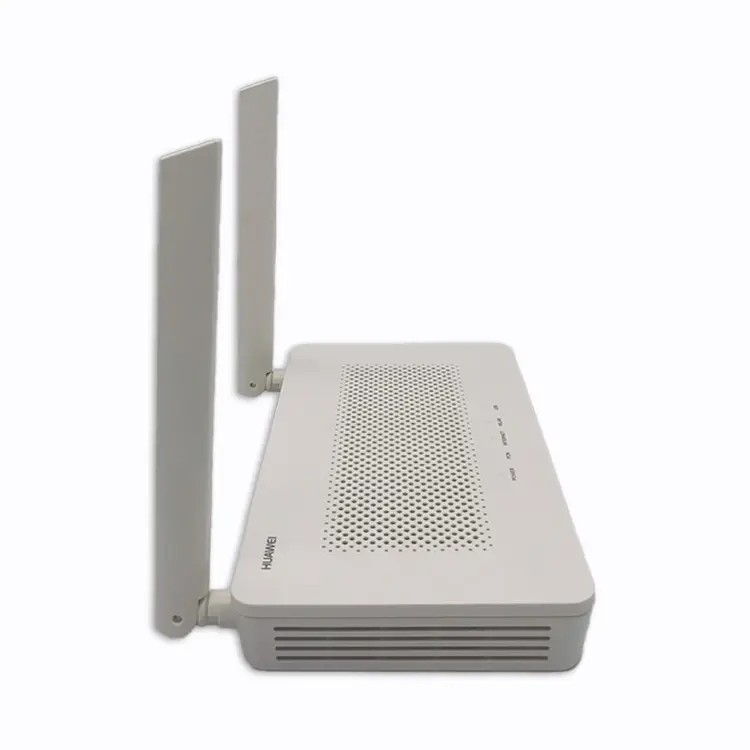

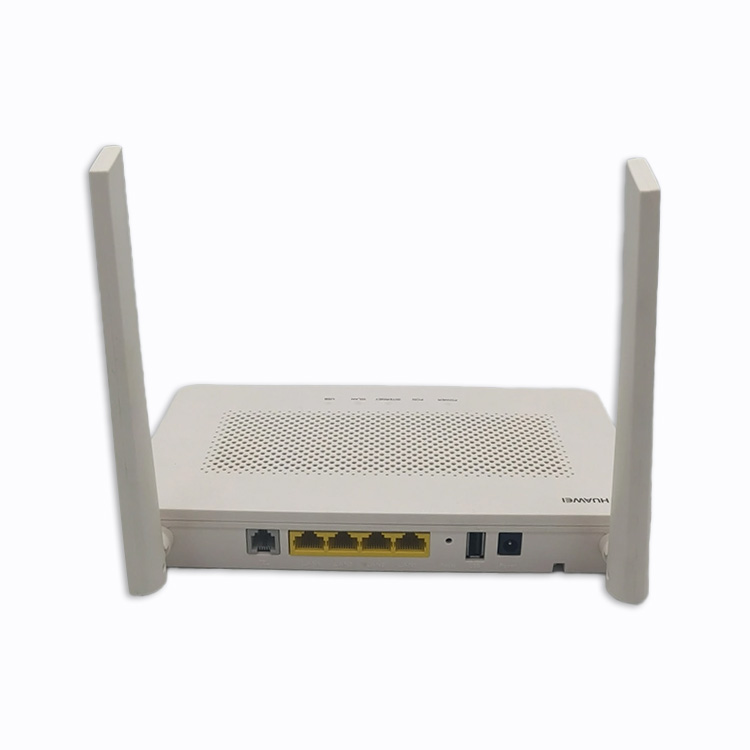

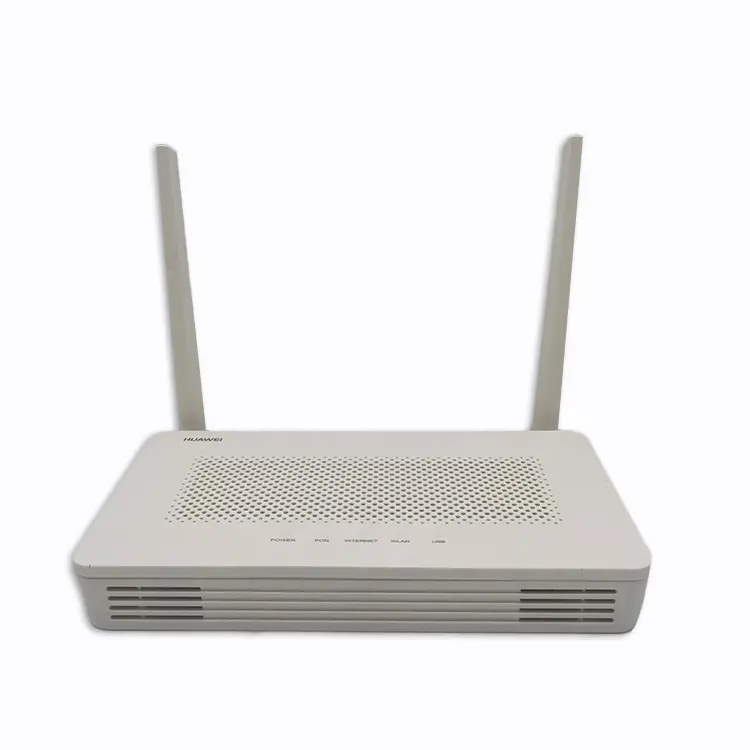

EchoLife EG8145V5 GPON ONU 4GE+1TEL+WIFI 5dbi optical network terminal (ONT) is a indoor optical network terminal in FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The EG8145V5 provides 4*GE Ethernet ports, one POTS port and one USB. EG8145V5 has WiFi function, support 802.11 b/g/n/a/ac, it is with 5 LED lights, but its functions are the same with HG8145V5.
* Green energy saving: highly integrated SOC, integrated PON, voice, gateway and LSW modules, saving 25% energy.
|
Place of Origin
|
China
|
|
Model Number
|
EG8145V5
|
|
Type
|
FTTx Solutions
|
|
Application
|
FTTH FTTB FTTX Network
|
|
Product name
|
GPON ONU
|
|
Fiber Type
|
Single Fiber Single Mode
|
|
Color
|
White
|
|
Ports:
|
4GE+Voice+WIFI+USB
|
|
Power supply
|
12V DC 1.5A
EU,US,UK,AU PWOER SUPPLY |
|
XPON
|
GPON firmware
|
|
Firmware Language
|
English
|
|
PON Interface
|
SC/UPC
|
|
Compatibility
|
Applicable to most mainstream OLT devices on the market
|
|
Similar Model
|
HG8145V5 HG8245H HG8240H HG8045Q HG8245Q
|
|
Packing Size
|
290*190*60MM
|
|
Weight
|
0.55kg
|
-
