Factory Adss OPGW Fittings Accessories Preformed tension clamp Guy Grip Dead-end Tension Clamp with cheap price
when cable suffers form aeolian vibration, the hammerhead of the vibration damper hanging on the cable may vibrate freely along with the movement of cable to make the steel stranded wires on anti- vibration damper rub each other,convert the vibration energy passed on to the anti- vibration damper to friction heat among steel standed wires and consume such heat energy,thereby effectively supperessing the aeolian vibration of cable and prolongthe life of cable.
Function
The tension clamp bears the tension strength, connecting OPGW cable to pole or tower
Specifications
|
Item |
Parameter | |||

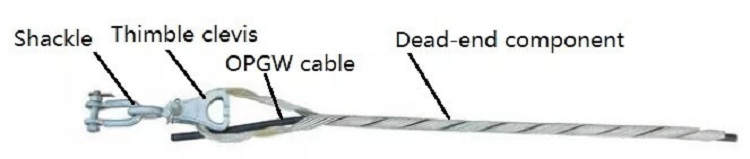

| Material | Shackle, Thimble clevis | Galvanized steel | ||
| Dead-end component | Aluminum clad steel wires (surface glue dipping and sand capping) | |||
| Strength Class (KN) | 60 | 70 | 100 | |
| Suitable Cable Diameter (mm) | 7.8~8.8 | 8.8~9.8, 9.8~10.6, 10.6~11.5, 11.5~12.3, 12.3~13, 13~14, 14~15 | 12.3~13, 13~14, 14~15, 15~15.8, 15.8~16.8 | |
| Connector Part Model | U-7, PH-7, TC-7 | U-7, PH-7, TC-7 | U-10, PH-10, TC-10 | |
