1. Disentwine the special bolt of the C-bracket till the ringent distance is bigger than the thick of one
side of angle iron. And then tighten the special bolt M8; (Reference torque: 15Nm)
2. Please retire the nut onto the threaded rod ,and unclench the plastic clip;

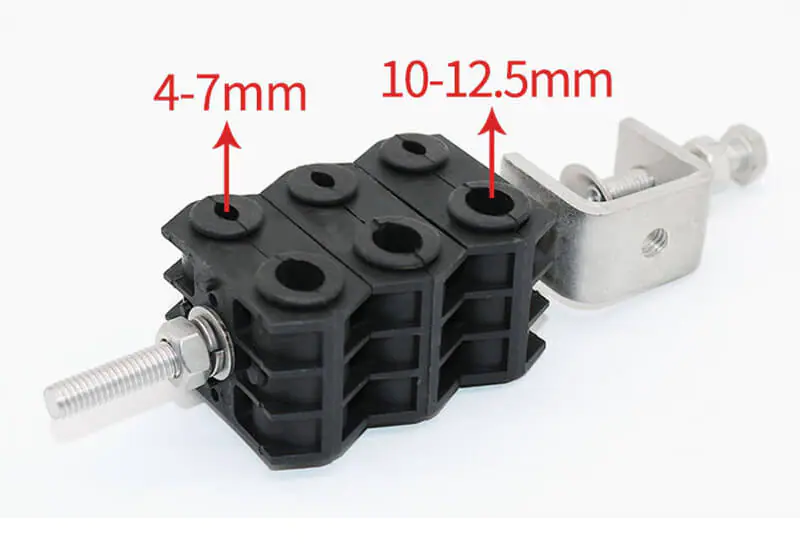

3. Disjoin the plastic clamp,plunge the Fiber cable ofφ7mm orφ7.5mm into the small hole of plastic
clamp, plunge the 3.3 square or 4 square cable into the hole of the black rubber pipe in plastic clamp.
Remove the rubber pipe from the plastic clamp for the 6 square or 8.3 square cable and plunge the
cable into the hole of plastic clamp (figure right);
4. Lock all nuts at last. (Reference torque of lock nut M8 for clamp: 11Nm)
