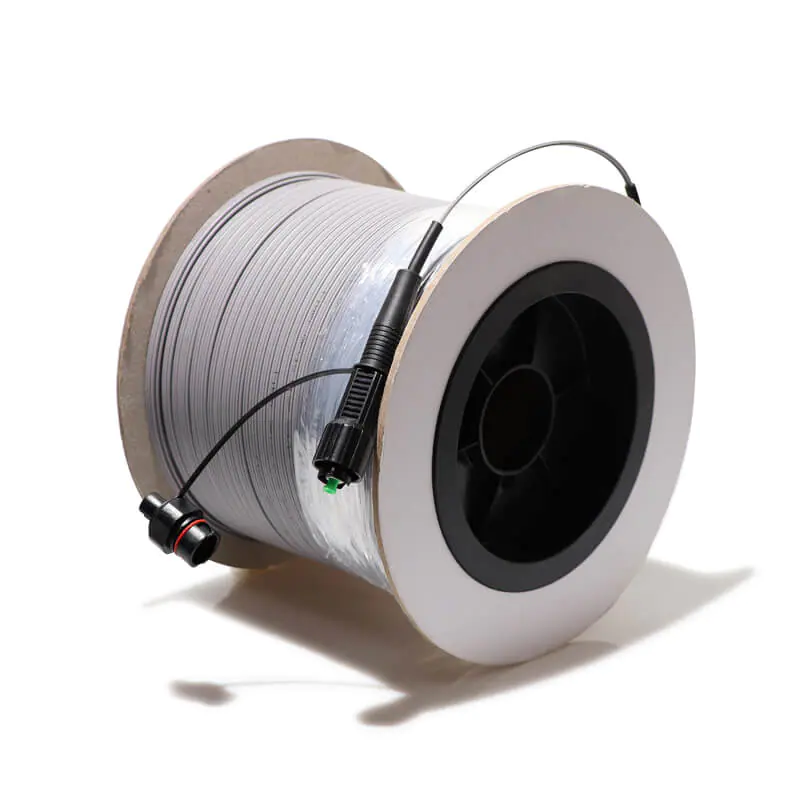

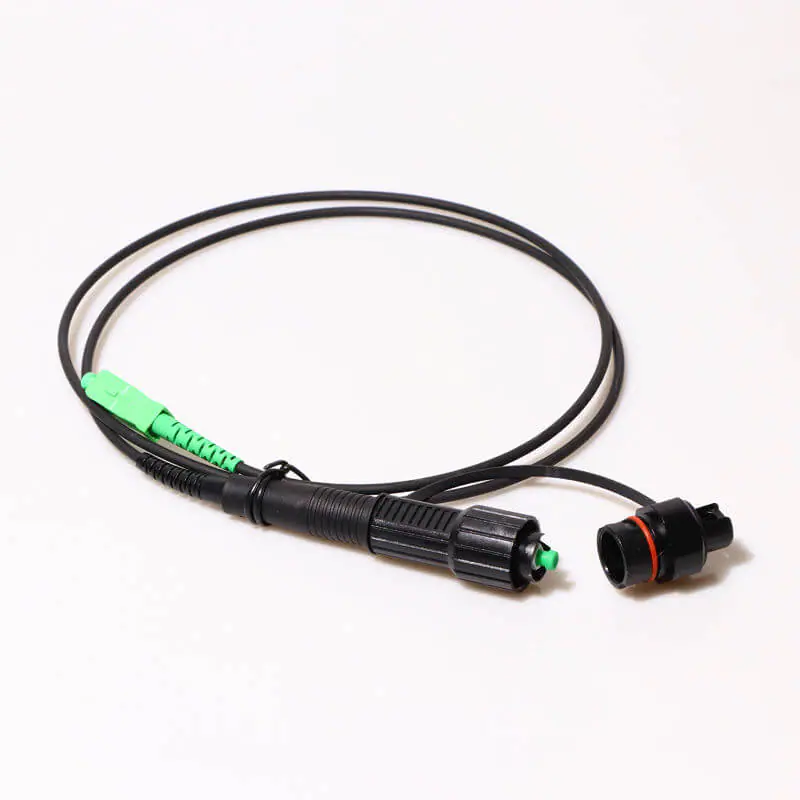

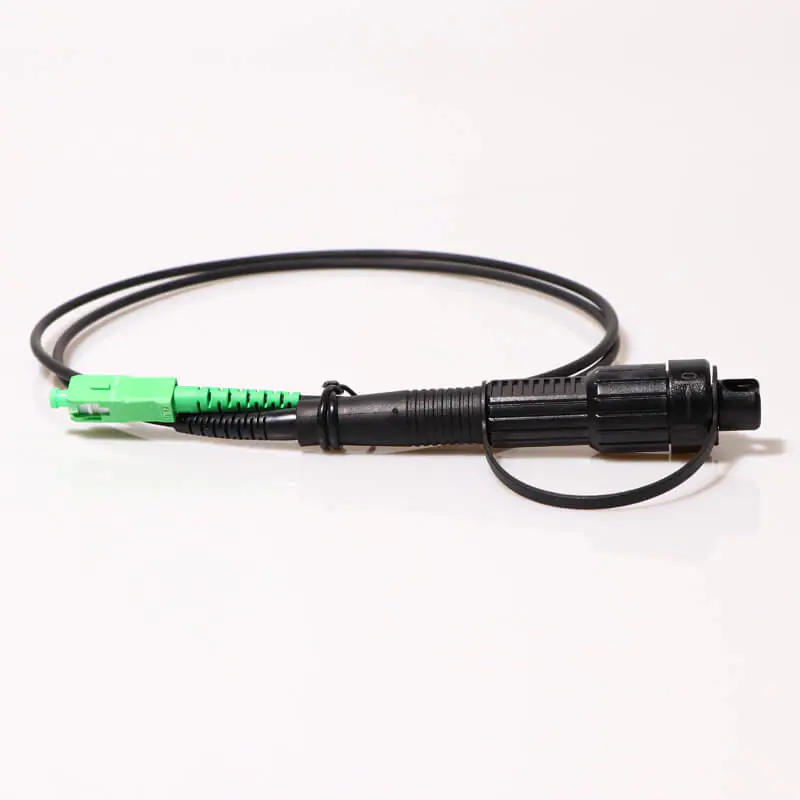

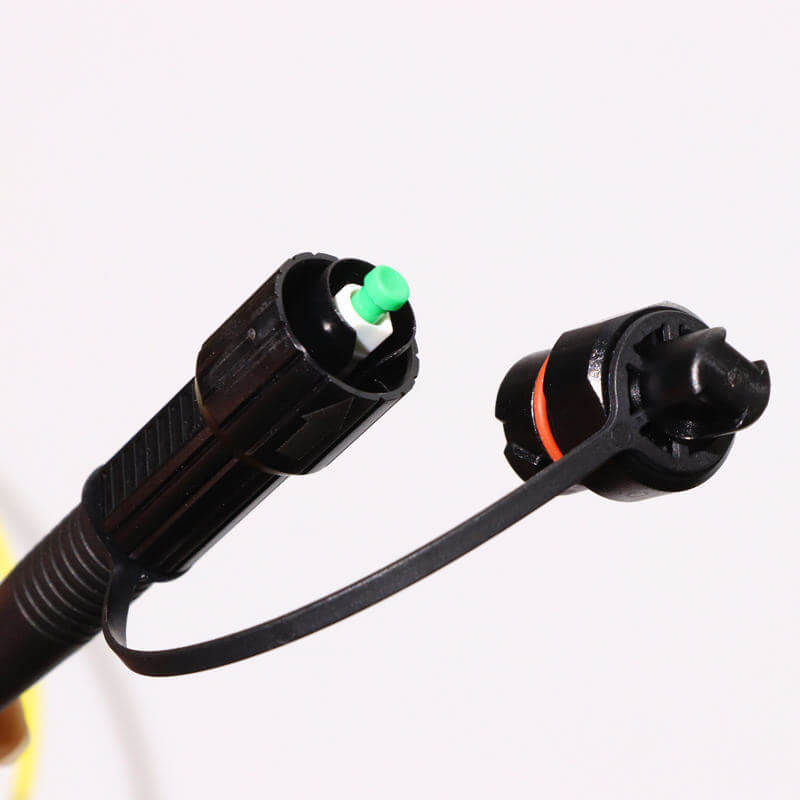

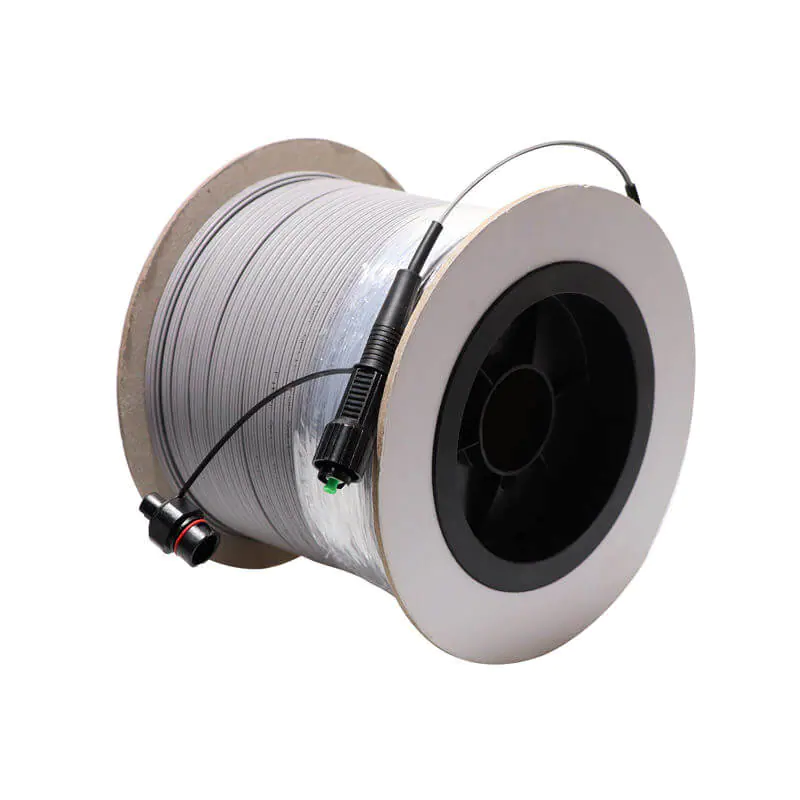

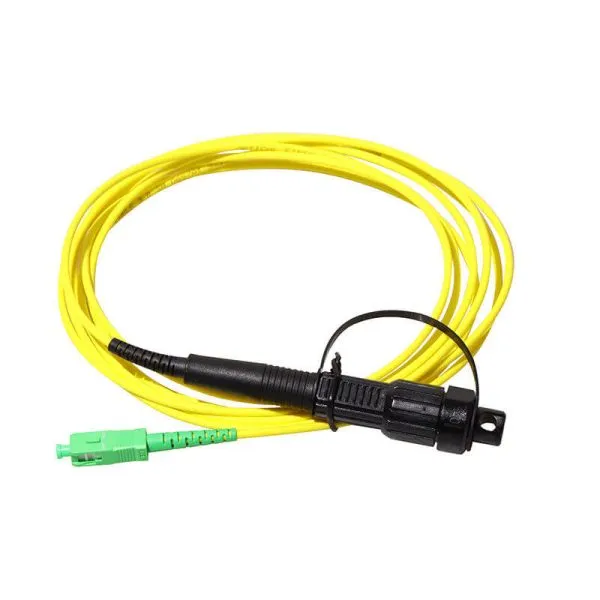

Fiber optic Mini SC/APC-SC/APC 3.0mm FTTA patch cord
APPLICATION:
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project
FEATURES:
compact size, easy to operate, durable
Easy connection to hardened adapters on terminals or closures
Reduce welding, connect directly to achieve interconnection
IP67 water and dust protection
Spiral clamping mechanism ensures long-term reliable connection
Guide mechanism, can be blinded with one hand, simple and quick, connect and install
Seal design: It is waterproof, dust-proof, anti-corrosion and so on
Easy connection to hardened adapters on terminals or closures
Reduce welding, connect directly to achieve interconnection
IP67 water and dust protection
Spiral clamping mechanism ensures long-term reliable connection
Guide mechanism, can be blinded with one hand, simple and quick, connect and install
Seal design: It is waterproof, dust-proof, anti-corrosion and so on
|
Type
|
SM-UPC
|
SM-APC
|
MM-UPC
|
|||
|
Typical
|
MAX
|
Typical
|
MAX
|
Typical
|
MAX
|
|
|
Insertion loss
|
≤0.1
|
≤0.3dB
|
≤0.15
|
≤0.3dB
|
≤0.05
|
≤0.3dB
|
|
Return loss
|
≥50dB
|
≥30dB
|
≥30dB
|
|||
|
Durability
|
500 mating cycles
|
|||||
|
Working temperature
|
-40 to + 85℃
|
|||||
