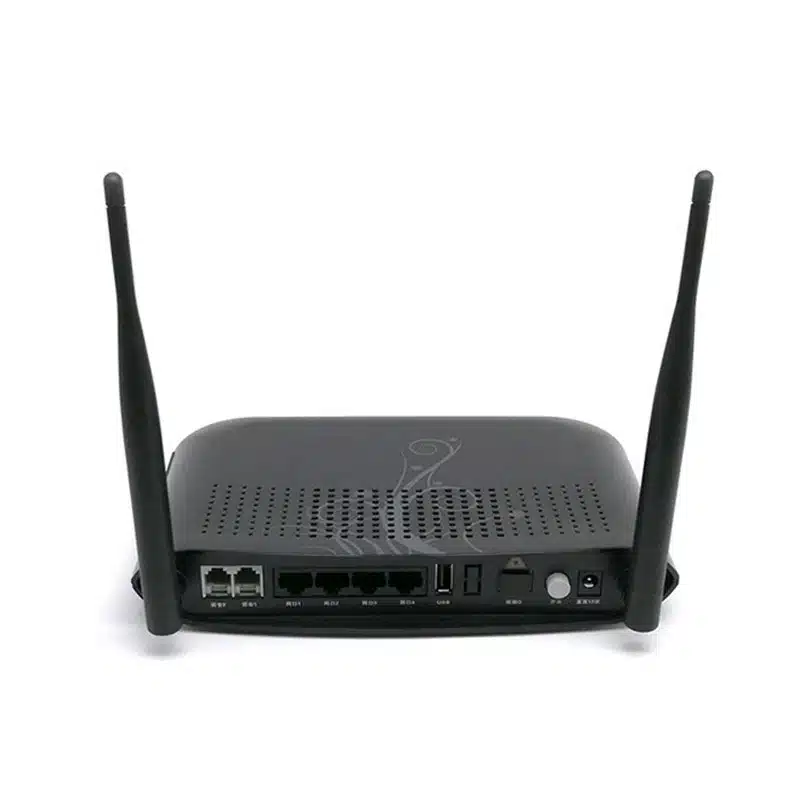

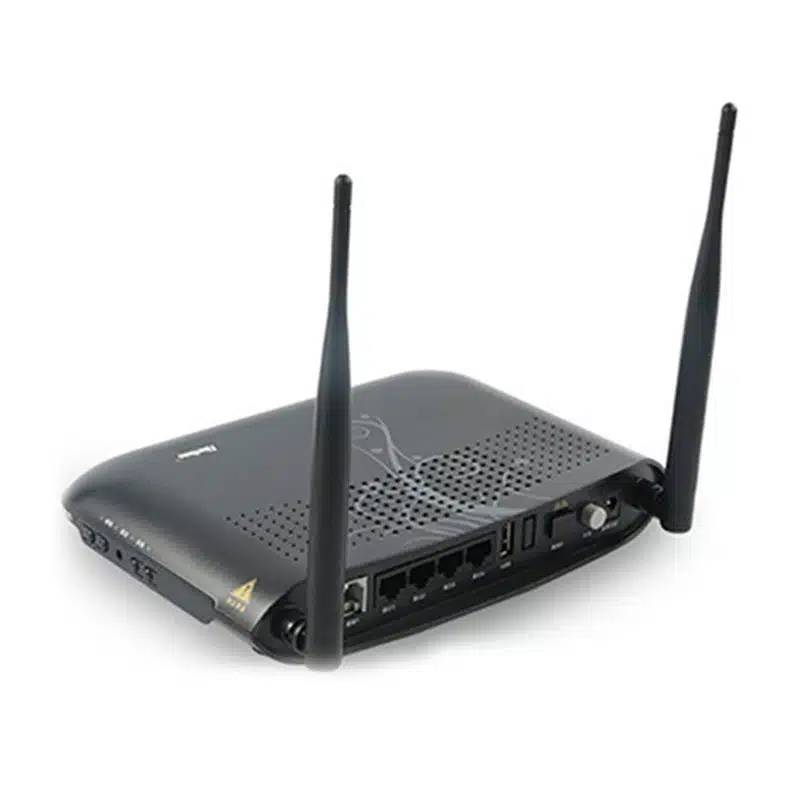

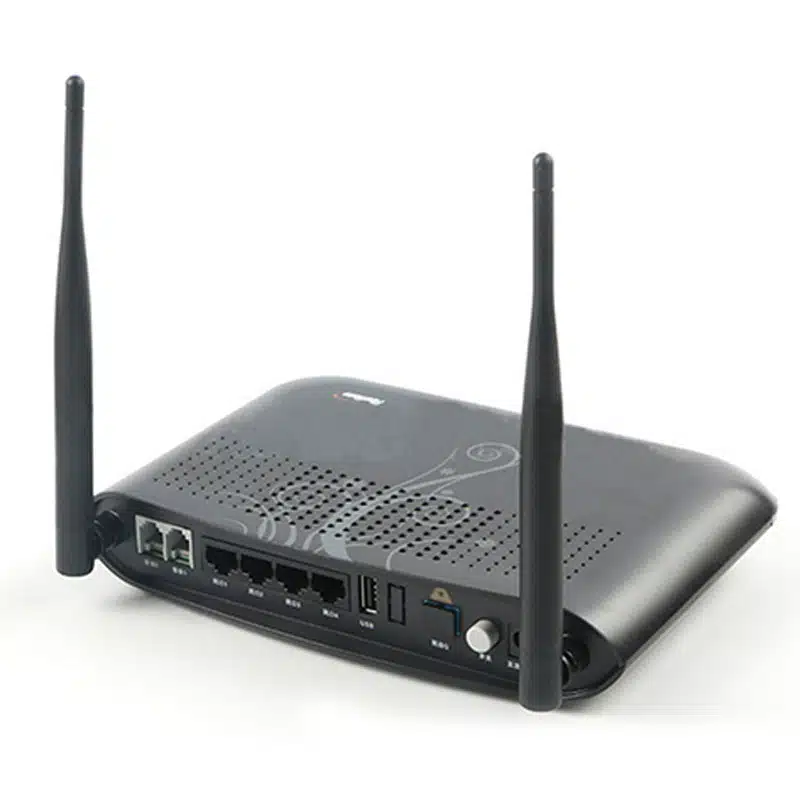

Fiberhome AN5506 04 F ONU is 4FE LAN+2 voice ports + WIFI and SIP protocol

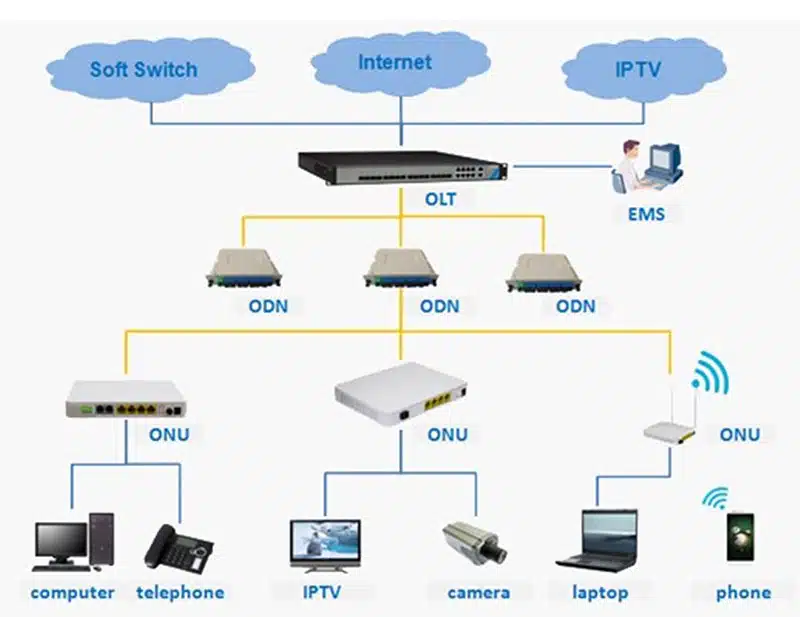

AN5506-04-F is an FTTH GPON optical network unit, providing four GE Ethernet interfaces, two phone interfaces, and wifi access. It can provide communication and entertainment service in multiple modes such as data,voice, and video, to meet integrated access requirement of families or small enterprises.



Additional information


Fiberhome AN5506 04 F

GPON Interface

1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream

Other Interfaces

4x 10/100/1000 Base-T,2xPOTS,WiFi (2,4 GHz, 802.11b/g/n, WPA/WPA2,WPS),1xUSB

Operation Modes

Bridge, Router, AP

Wavelength for downstream

1480 nm – 1500 nm

Wavelength for upstream

1290 nm – 1330 nm


-28 dBm

Power Consumption

7 W
