Description

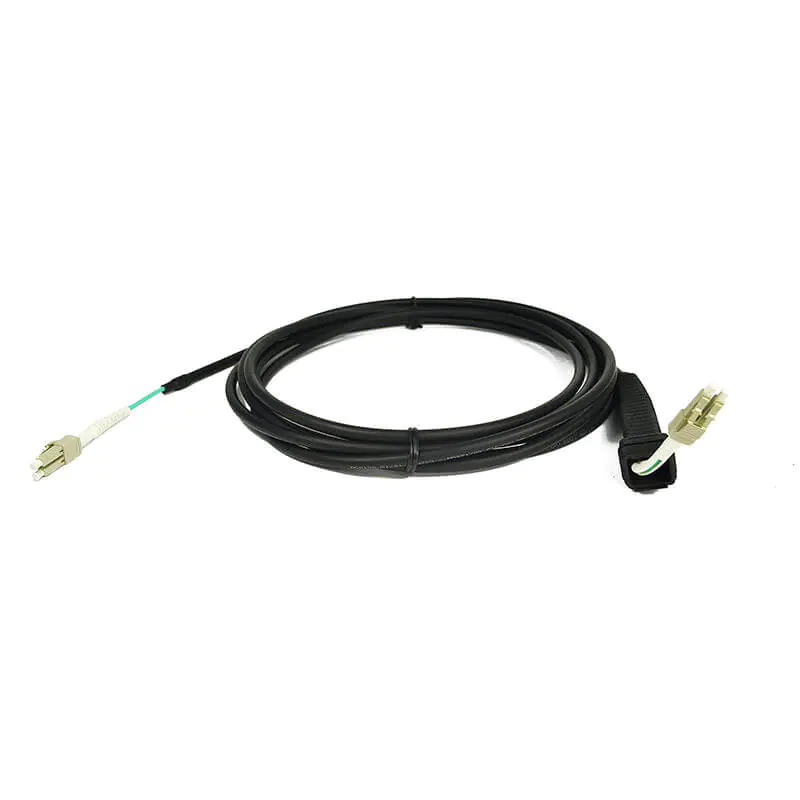

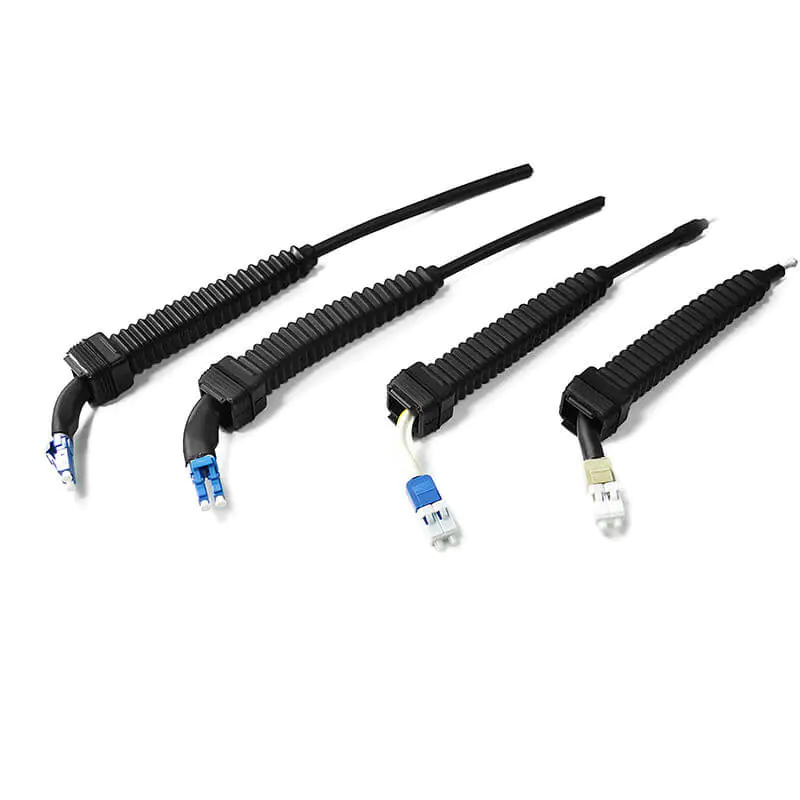

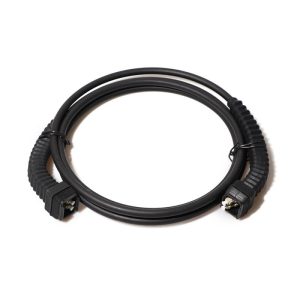

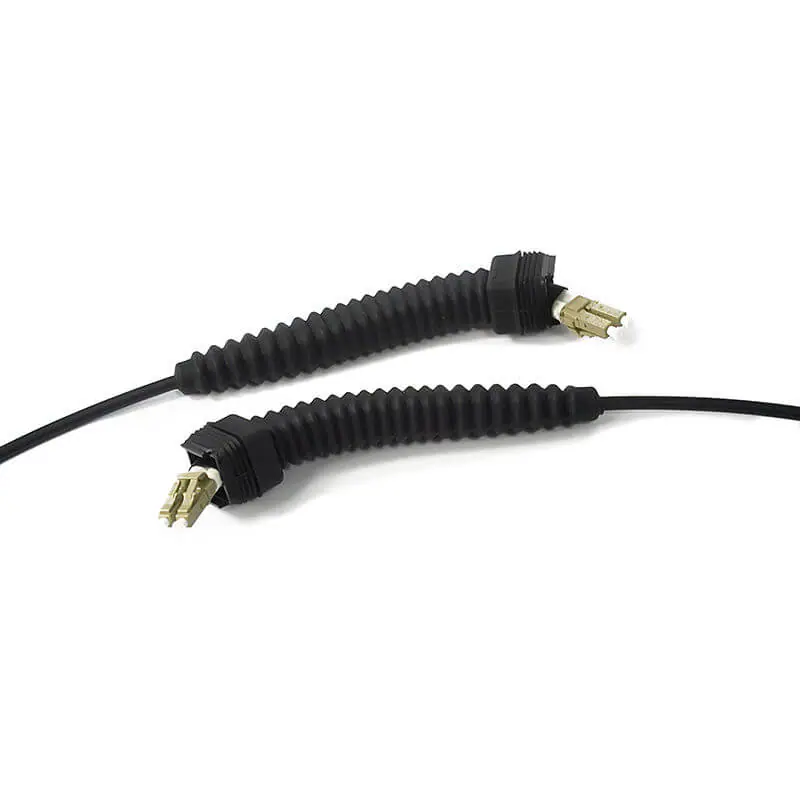

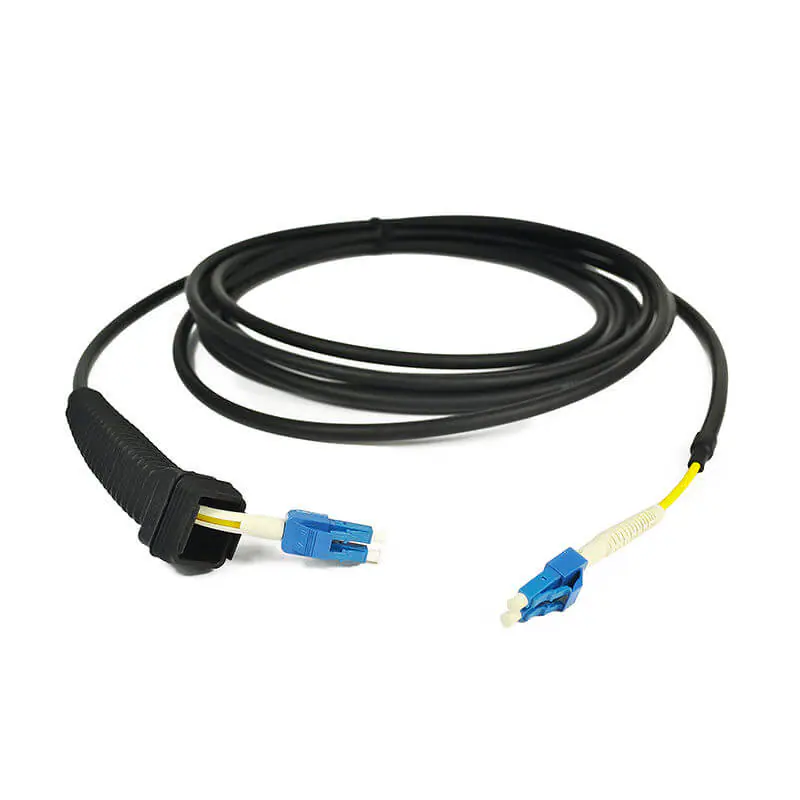

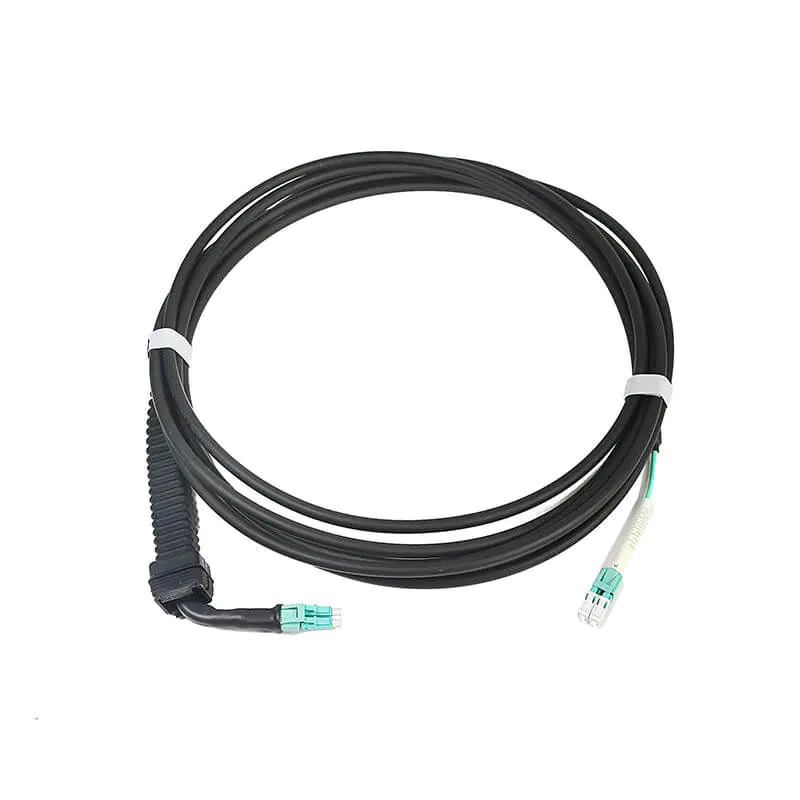

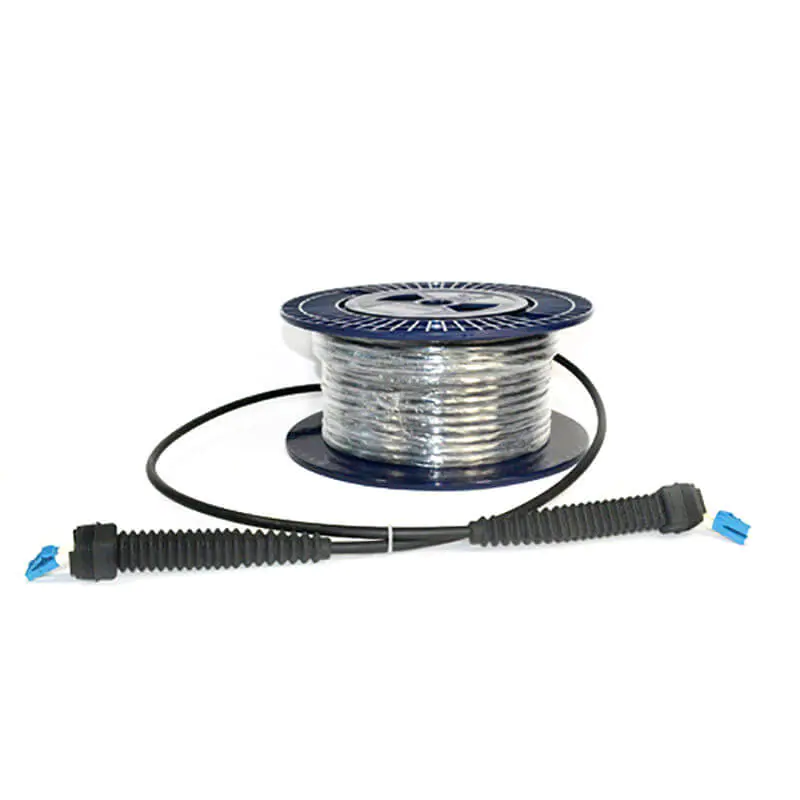

NSN LC Uniboot with Rubber Boot Duplex Single Mold Patch Cord
APPLICATION:
Multi-purpose Outdoor For connection between distribution box and RRH Deployment in Remote Radio Head cell tower applications
FEATURES:
Easily add/install jumper cables for a future expansion Factory-assembled cables for a fast on-site installation IP67 water and dust protection Flexibility with small bending radius and excellent cable routing properties Equipped with customer specific power and fiber-optic connectors
|
Type
|
SM-UPC
|
SM-APC
|
MM-UPC
|
|||
|
Typical
|
MAX
|
Typical
|
MAX
|
Typical
|
MAX
|
|
|
Insertion loss
|
≤0.1
|
≤0.3dB
|
≤0.15
|
≤0.3dB
|
≤0.05
|
≤0.3dB
|
|
Return loss
|
≥50dB
|
≥30dB
|
≥30dB
|
|||
|
Durability
|
500 mating cycles
|
|||||
|
Working temperature
|
-40 to + 85℃
|
|||||
