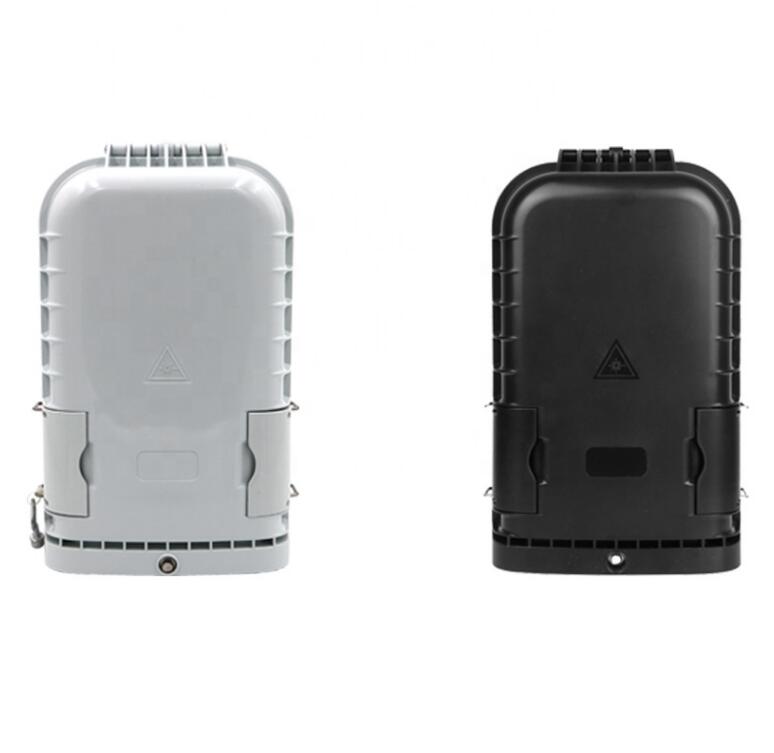

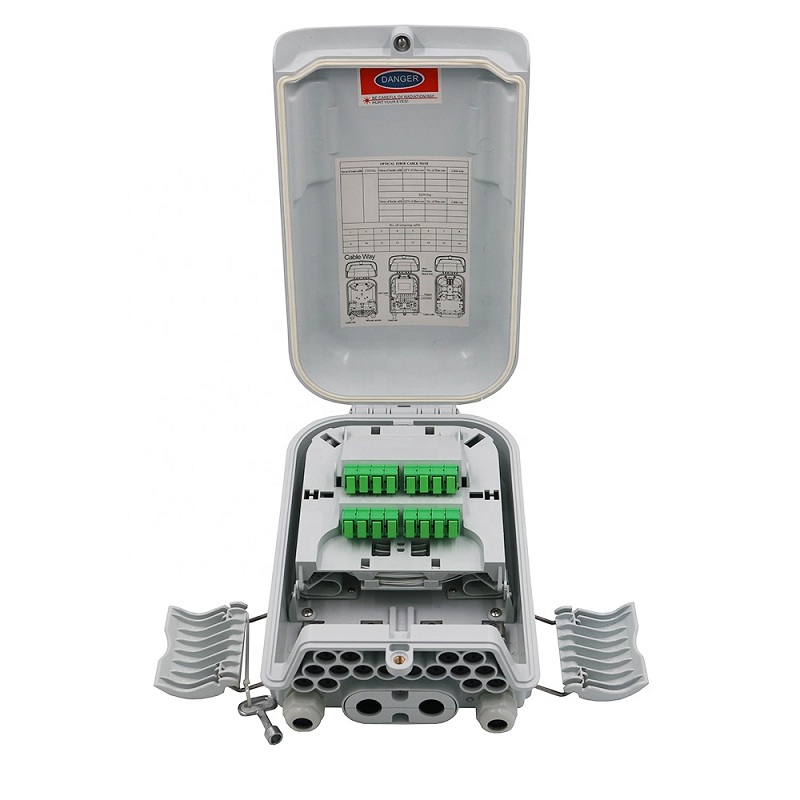

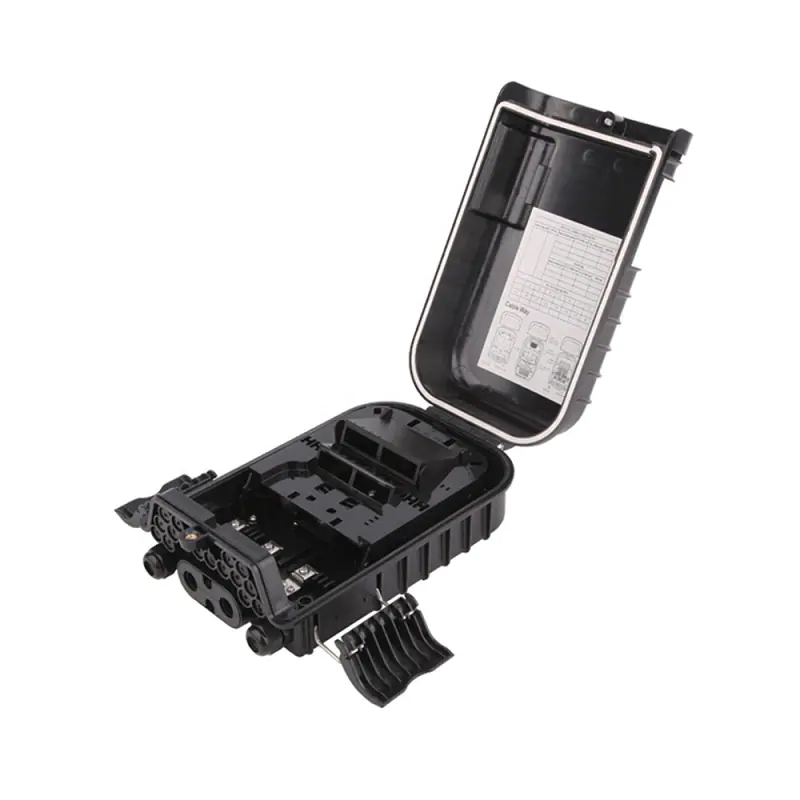

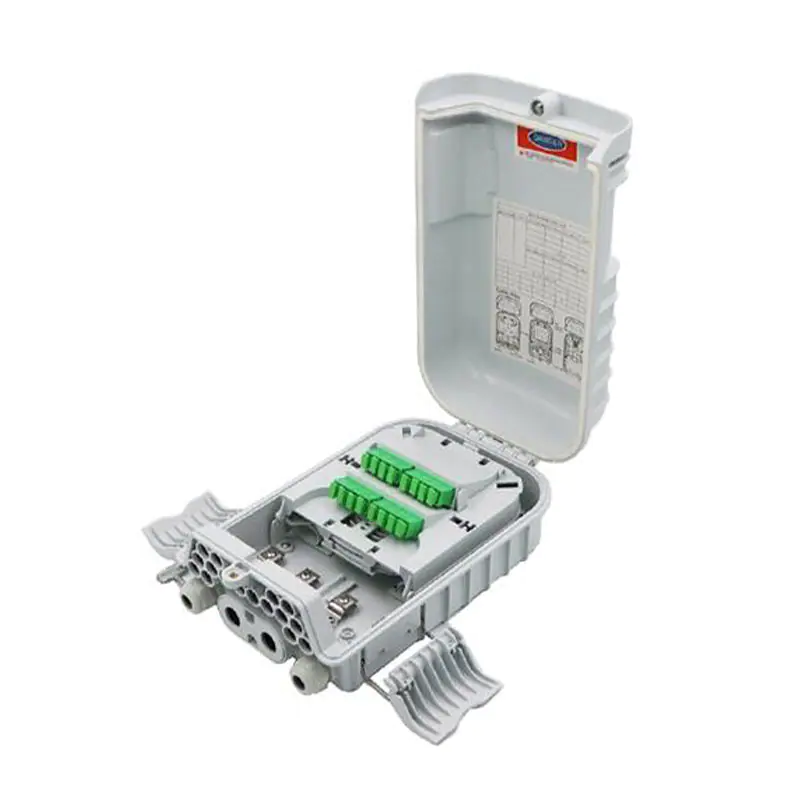

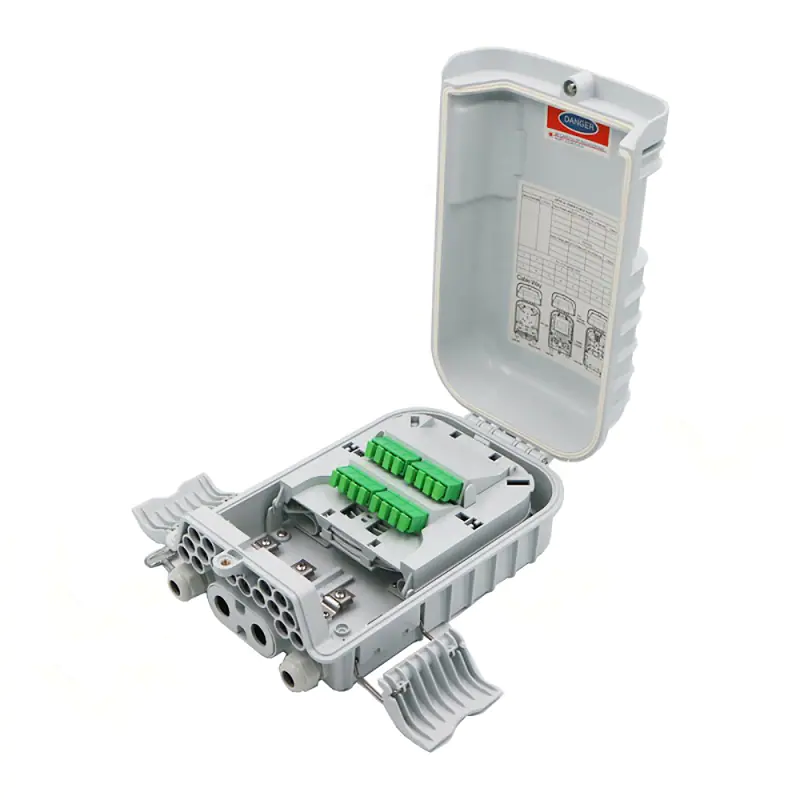

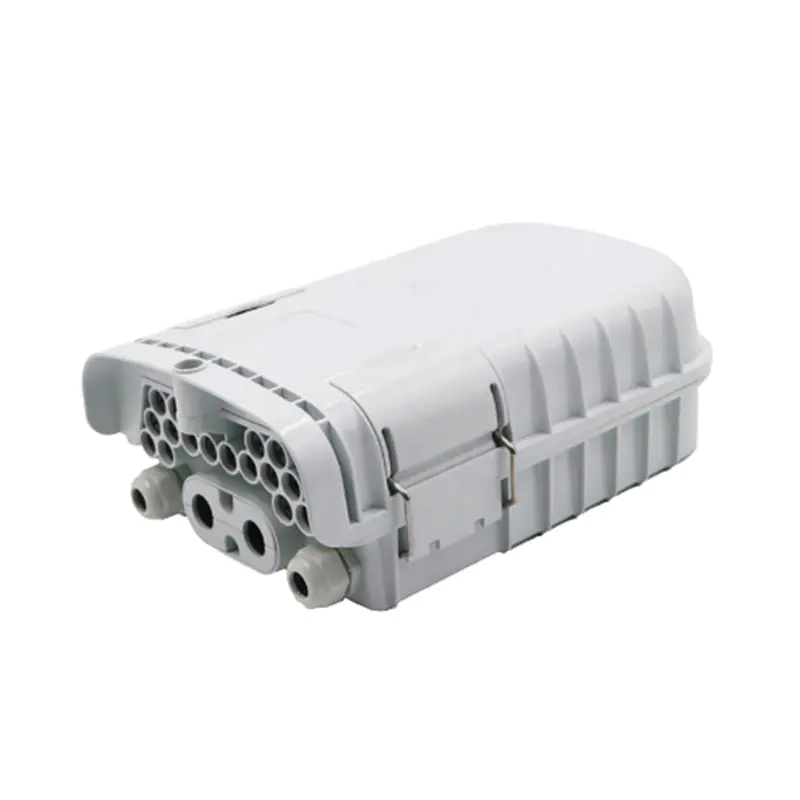

FTTH 16 ports fibra optica cajas nap/fiber optic PLC splitter terminal box/ distribution box
Fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features:
- Water-proof design with IP-68 Protection level. Integrated with flap-up splice cassette and adaptor holder.Impact test:IK10,Pull Force:100N,Full rugged design
- All stainless metal plate and anti-rusting bolts, nuts.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 2 pcs of 1*8 Splitter can be installed as an option. Mechanical sealing structure and mid-span cable entry.
- 16 ports steroids for allergic reactions cable entrance for drop cable . 24 adaptors for drop cable patchingPacking Information:
Model Net Weight Dia. Of Outer Carton G.W Of outer Carton No.of Products SP-1606-16E 1.48kg/pcs 560*360*630mm 16.5kg/ctn 10pcs/ctn
Capacity and Size:
|
Material |
Size |
Max Capacity |
Nos of Adaptor |
Wight |
Color |
|
|
ABS/PC |
A*B*C(MM) 287*172*102 |
Splice 16 Fibers (1trays, 16fiber/tray) |
2pc of 1*8 PLC Splitter
|
16pc of SC |
1.15kg |
Grey/black |
| Model Number | 16cores Splitter Terminal Box |
|---|---|
| Application | FTTH FTTB FTTX Network |
| fiber diameter | 125um( G652&G657) |
| adapter | SC & FC |
| Type | pre connector box |
| tight cladding diameter | single mode&duplex mode |
| insertion loss | ≤ 0.15db ( 1310nm & 1550nm) |
| Color | Gray (customizable) |
