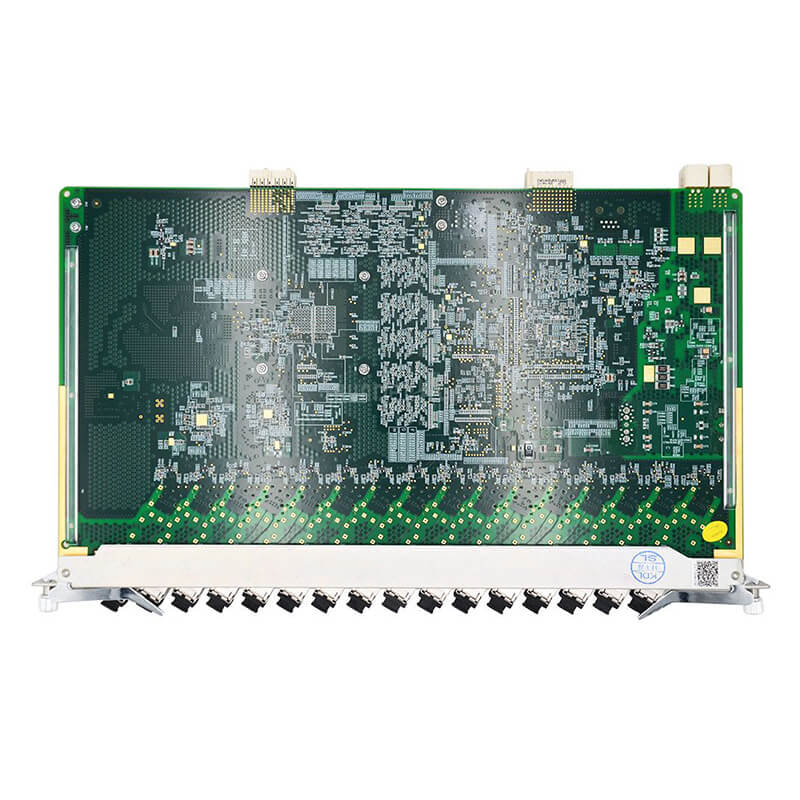

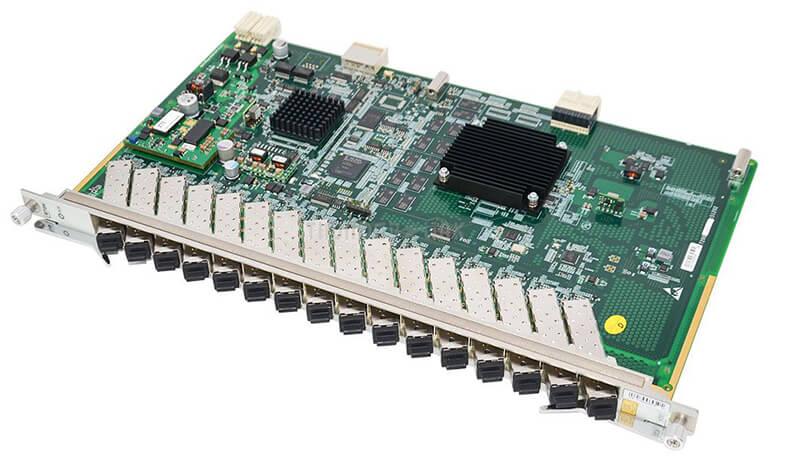

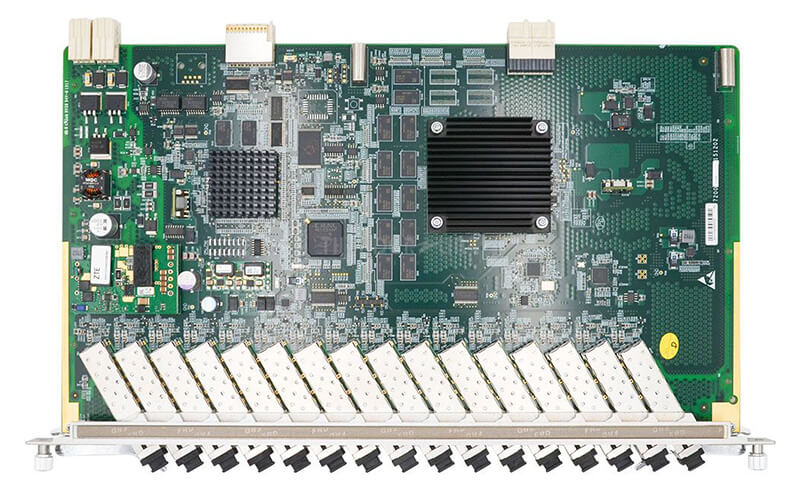

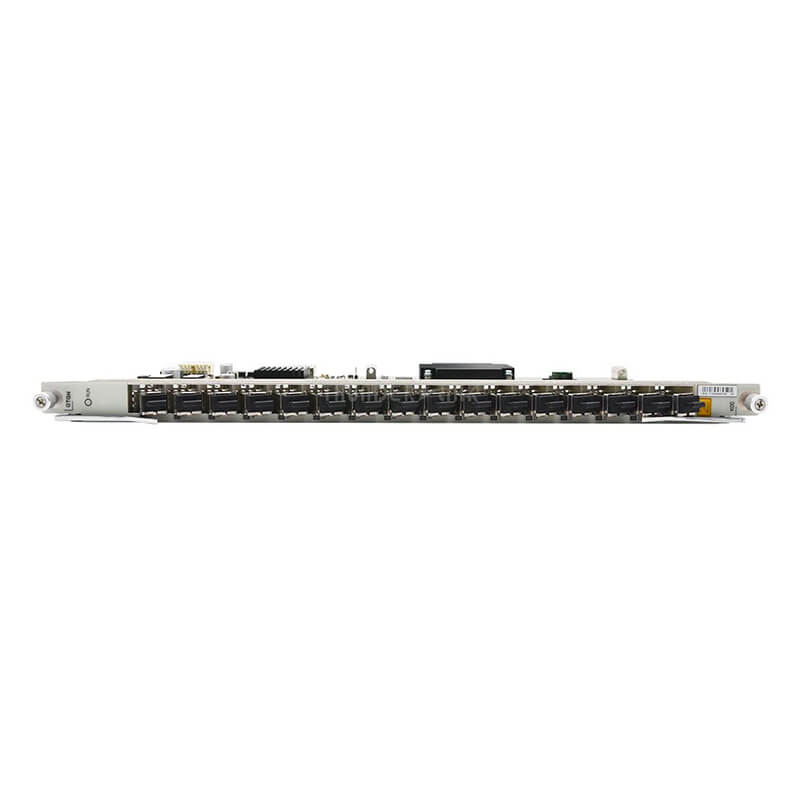

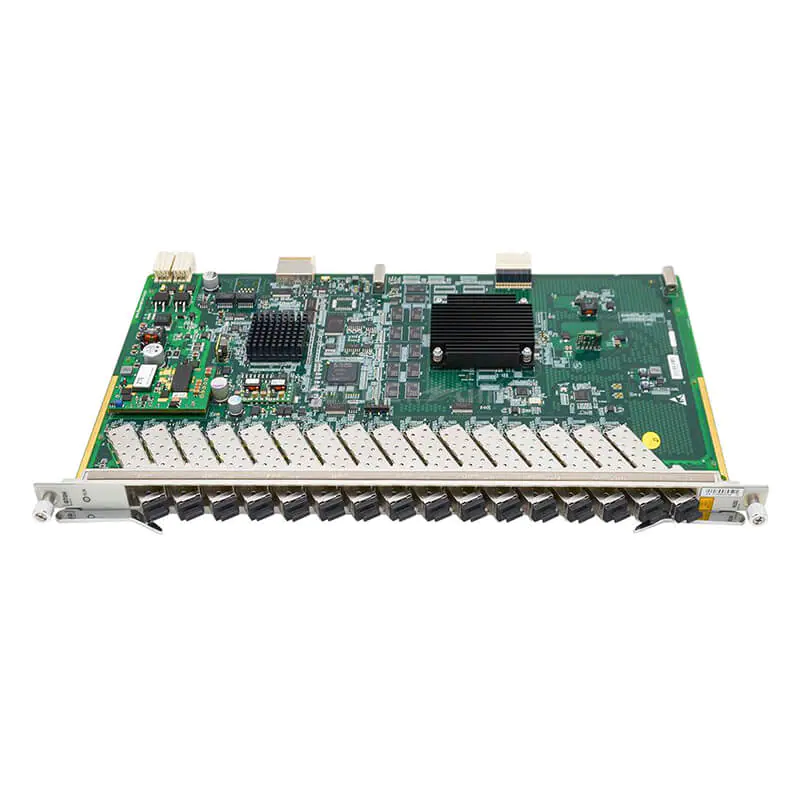

ZTE ZXA10 GTGH K00 C++ C320 C350 C300 16-port GPON OLT interface board with C++ module

ZTE 16-port GPON interface board with C++ module

Apply to ZTE ZXA10 C320 C350 C300

Maximum split ratio: 1:128

Transmission distance: 20km

Output optical power: 4.5~8 dBm

✨ Empowering Fiber Connectivity

  • Encompass everything from distribution terminals to drop cables, meticulously crafted for effortless installation and dependable performance.
  • Providing cutting-edge solutions that facilitate high-speed, reliable, and scalable fiber optic connectivity suitable for urban, rural, and industrial settings.
We specialize in designing customized FTTH and FTTX solutions that cater to the specific deployment needs of clients in different countries. Our expert team collaborates with customers to ensure that our network architectures align perfectly with local infrastructure requirements.
We provide a wide range of high-quality telecommunications products, including optical fibers, SFP modules, patch panels, and routers. Our commitment is to deliver the most suitable products that not only meet but exceed our clients’ expectations and support their unique connectivity demands.
Category
GTGH C 01 ZTE ZXA10 GTGH K00 C++ C320 C350 C300 16-port GPON OLT interface board with C++ module
GTGH C 02 ZTE ZXA10 GTGH K00 C++ C320 C350 C300 16-port GPON OLT interface board with C++ module
GPON Port

16-GPON Port

Type

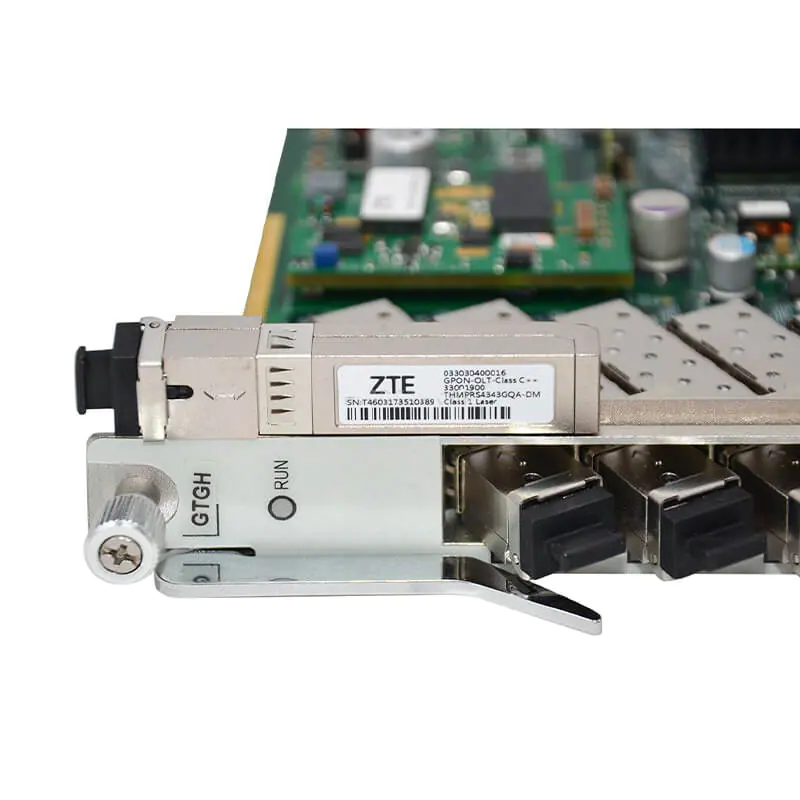

C++ Module : Single Fiber Bidirectional Optical Module, Class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C++ Module : 4.50 dBm

Maximum Output Optical Power

C++ Module : 8.00 dBm

Maximum Receiver Sensitivity

C++ Module : -30 dBm @10E-10
-32 dBm @10E-10

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C++ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1kg

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm
