services access.

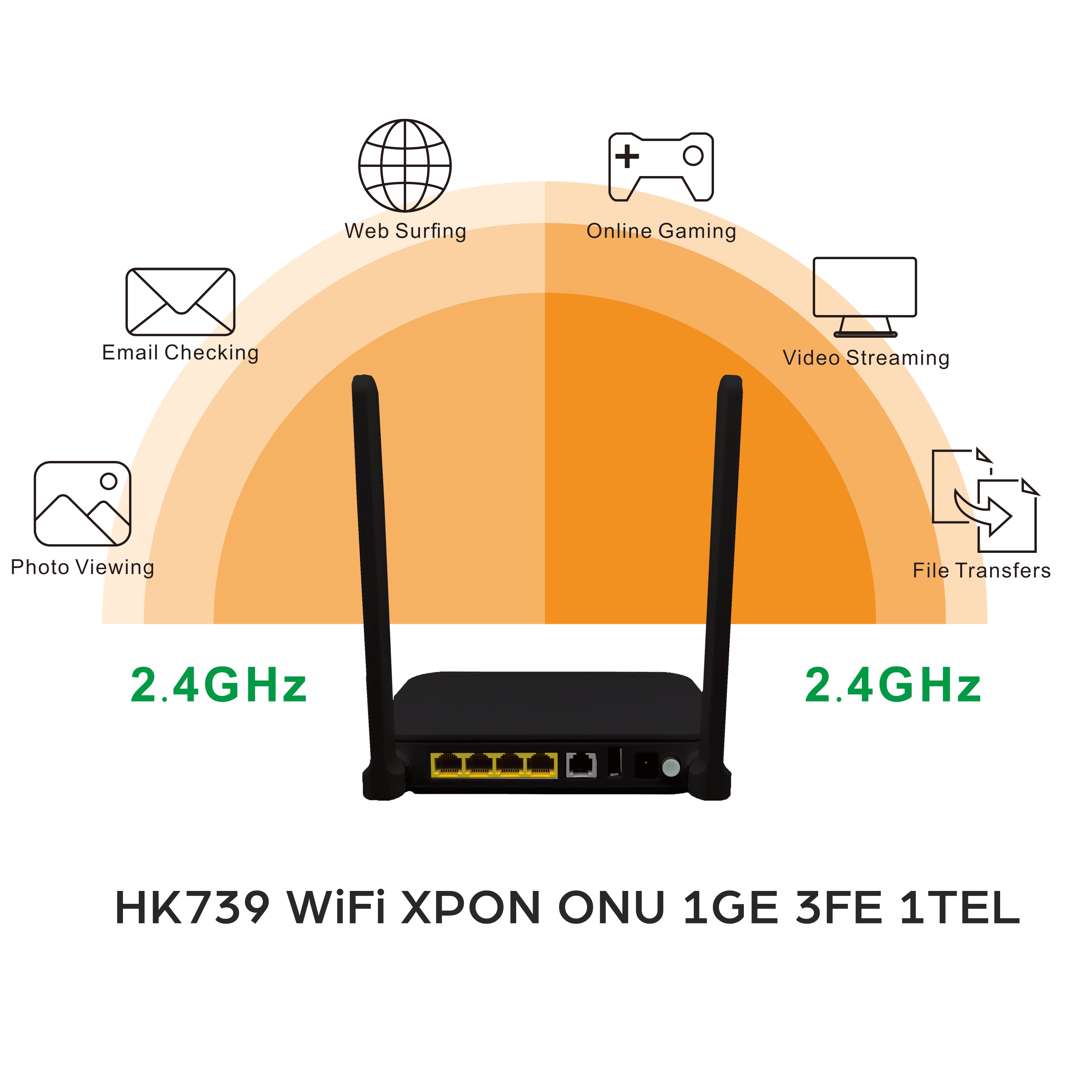

HK739XH is based on mature and stable, cost-effective XPON technology.
HK739XH adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
|
Technical item
|
Details
|
|
PON Interface
|
1 GPON BOB (Class B+)
|
|
Receiving sensitivity: ≤-27dBm
|
|
|
Transmitting optical power: +0.5~+5dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
TX: 1310nm, RX: 1490nm
|
|
Optical Interface
|
SC/UPC Connector
|
|
Design Scheme
|
Hisilicon CPU SD5116 + Hisilion WiFi chip Hi5620
|
|
LAN Interface
|

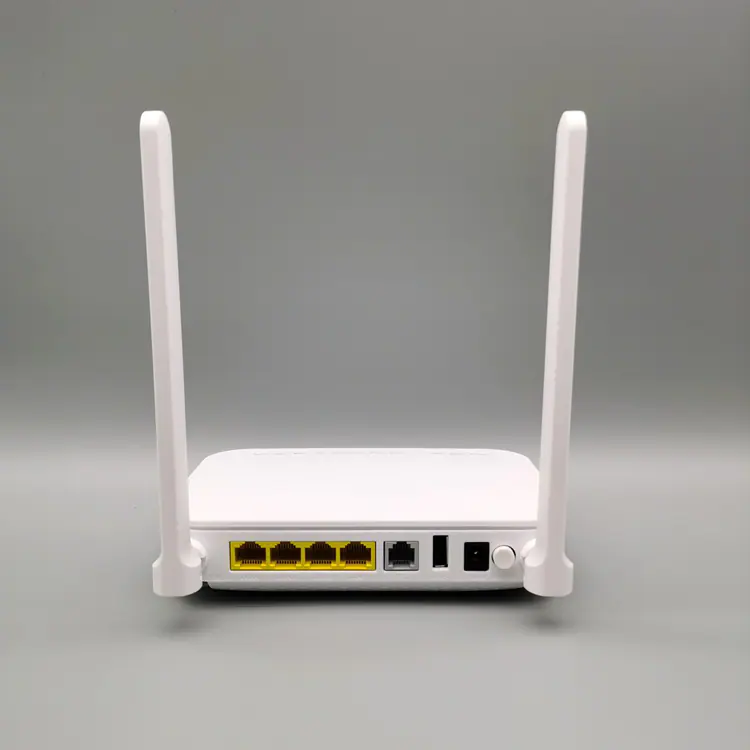

1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
Wireless
|
Compliant with IEEE802.11b/g/n
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
POTS interface
|
support MIMO, rate up to 300Mbps
|
|
2T2R,2 external antenna 5dBi
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
1 FXS, RJ11 connector
|
|
|
Support: G.711/G.723/G.726/G.729 codec
|
|
|
Push-ButtonLED
|
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
|
|
Line testing according to GR-909
|
|
|

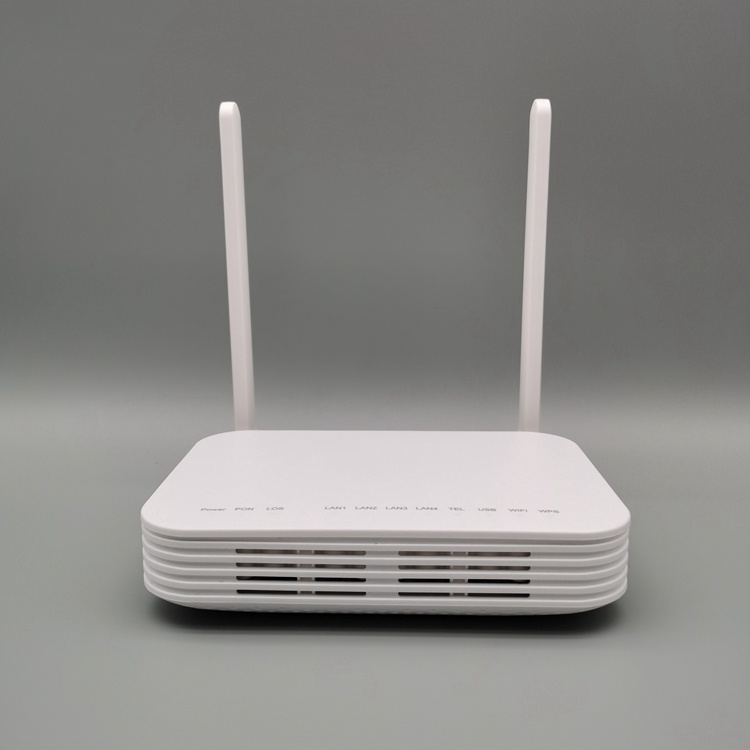

10 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4,FXS
|
|
|

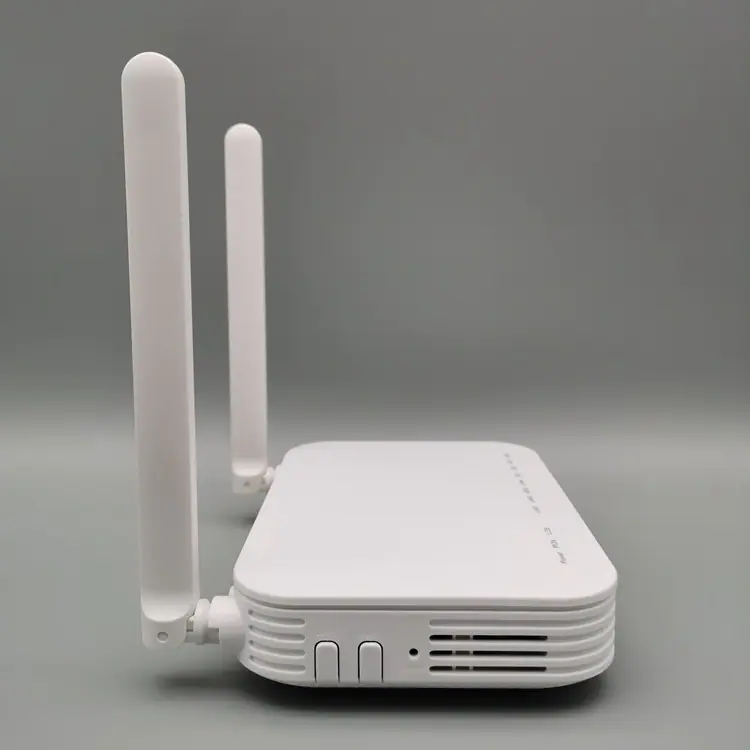

3,For Function of Reset, WLAN, WPS
|
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Power ConsumptionPower Supply
|
DC 12V/1A
|
|
≤6W
|
|
|
Dimension
|
162mm×112mm×32mm(L×W×H)
|
|
Net Weight
|
0.3Kg
|
Application
