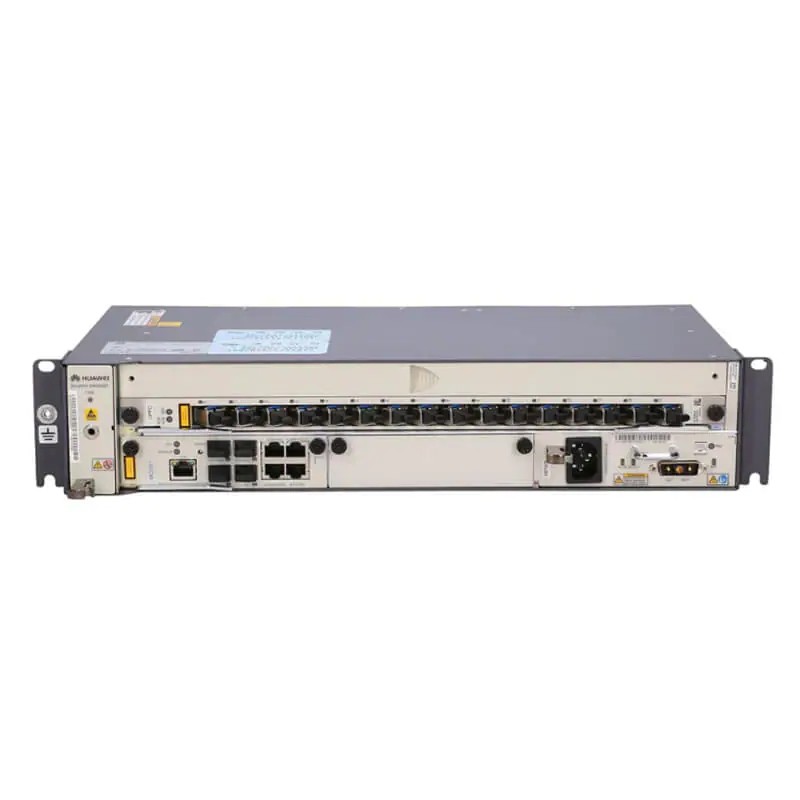

MA5608T Provides super large convergence switching capacity. Specifically, an MA5600T series device supports 3.2 Tbit/s backplane capacity, 1,920 Gbit/s switching capacity, and 512,000 MAC addresses.
Provides super high-density cascading capability. Specifcally, an MA5600T series device supports a maximum of 46 x 10GE or 768 GE services, with no additional convergence switches.
The MA5608T can be installed in residential areas, thus reducing the wear of ODN optical backbone cables. The device supports ADSL2+, SHDSL, POTS, GPON, 10G GPON and P2P access modes and provides Internet, voice and video services to subscribers. The MA5608T works as a CO OLT and supports multiple modes of network building and media diversification, guaranteeing access for all users – home, mobile and corporate. The terminal can be used as mini-OLT to support GPON and 10G GPON and as mini-DSLAM to support ADSL2+, VDSL2, SHDSL.
Additional information
PON standard
GPON
Cards included
GPFD C+, MCUD1 (10GE), MPWD (DC)
OLT - Number of PON ports
16
OLT - Number of Uplink ports
8
Type of case
Rack (2U)
Switching capacity
480 Gbit/s (active/standby mode)
Power supply
-48 V DC
Dimensions
490 mm x 275 mm x 447 mm
Weight
33 kg
Working environment temperature range
From -25°C to 65°C
