Huawei MA5683T | OLT | 1x GPFD C+ SFP, 2x X2CS 10G SFP, 2x PRTE, 2x SCUN

MA5680T Provides super large convergence switching capacity. Specifically, an MA5600T series device supports 3.2 Tbit/s backplane capacity, 1,920 Gbit/s switching capacity, and 512,000 MAC addresses.

Provides super high-density cascading capability. Specifcally, an MA5600T series device supports a maximum of 46 x 10GE or 768 GE services, with no additional convergence switches.

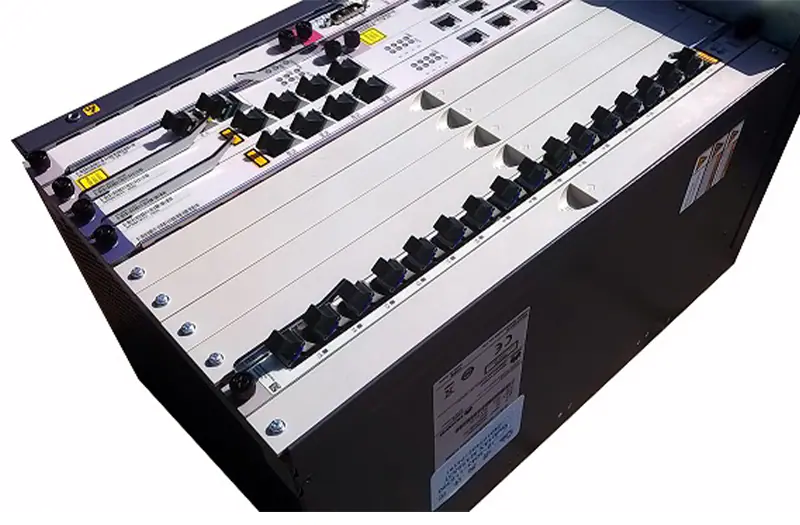

Huawei MA5683T

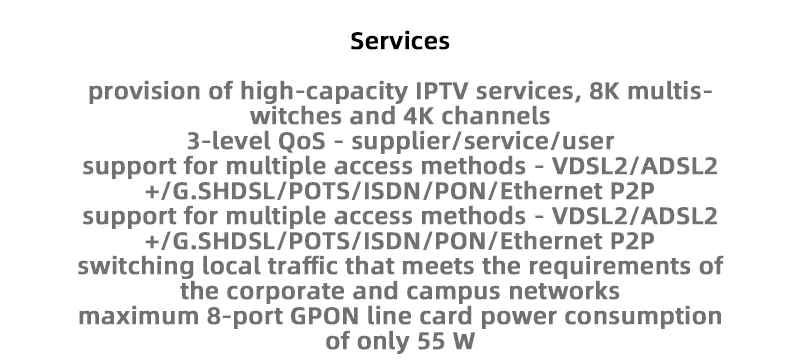

The MA5683T is the world’s first all-in-one access platform that provides integrated DSL and optical access. Presented OLT terminal supports many access methods – VDSL/ADSL2+/G.SHDSL/POTS/ISDN/PON/Ethernet P2P as well as many scenarios – FTTC/FTTB/FTTH/FTTO/FTTM. The device also offers mobile backhaul with high clock reliability and precision and GE/10 GE interfaces. The MA5680T helps to simplify the network architecture and enables smooth migration in the FTTx network, which reduces the total cost of ownership.

Additional information

Switching capacity

480 Gbit/s

Power supply

DC: -48 V DC

Dimensions (without mounting brackets)

442,00 mm x 283,20 mm x 263,90 mm

Dimensions (with mounting brackets)

535.00 mm x 283.20 mm x 263.90 mm

Working environment temperature

Configuration with 1 cabinet: from -25°C to 65°C
Configuration with 2 cabinets: from -25°C to 55°C

Energy consumption

Static power consumption 174.8 W
