MPO Patch Cord for High-Density Data Center Connectivity
MPO Patch Cord solutions from Foclink are built for high-density data center, telecom, and enterprise network deployments. These factory-terminated MPO fiber optic patch cords support fast migration from 10G and 40G to 100G, 400G, and future 800G architectures with lower insertion loss and cleaner cable management.
Each MPO Patch Cord is engineered for stable polarity, precise end-face geometry, and reliable optical performance. Available in OS2, OM3, OM4, and OM5 fiber types, our assemblies comply with TIA-568-C.3, IEC 61754-7, and project-specific data center cabling requirements.
MPO Patch Cord Designed for Modern Data Center Topologies
Whether you are building a new Tier-3 facility or upgrading an existing spine-leaf network, our MPO Patch Cord assemblies adapt to your architecture without compromise. Choose the fiber count, jacket, polarity, connector gender, and length required for your project.
MPO Patch Cord Core Counts
8-fiber and 12-fiber MPO Patch Cord options are widely used for 40G/100G parallel optics, while 24-fiber assemblies support higher-density 400G migration plans.
OS2 MPO Patch Cord
9/125um OS2 single-mode MPO Patch Cord assemblies are suitable for long-distance campus backbone, carrier, and DWDM network applications.
OM5 MPO Patch Cord
OM5 lime-green MPO Patch Cord supports SWDM4 applications for 40G/100G transmission while helping reduce required fiber count in selected network designs.
Custom MPO Patch Cord Length
Standard 1m-10m MPO Patch Cord lengths are available for common cabinet links, with custom lengths up to 100m manufactured and tested to order.

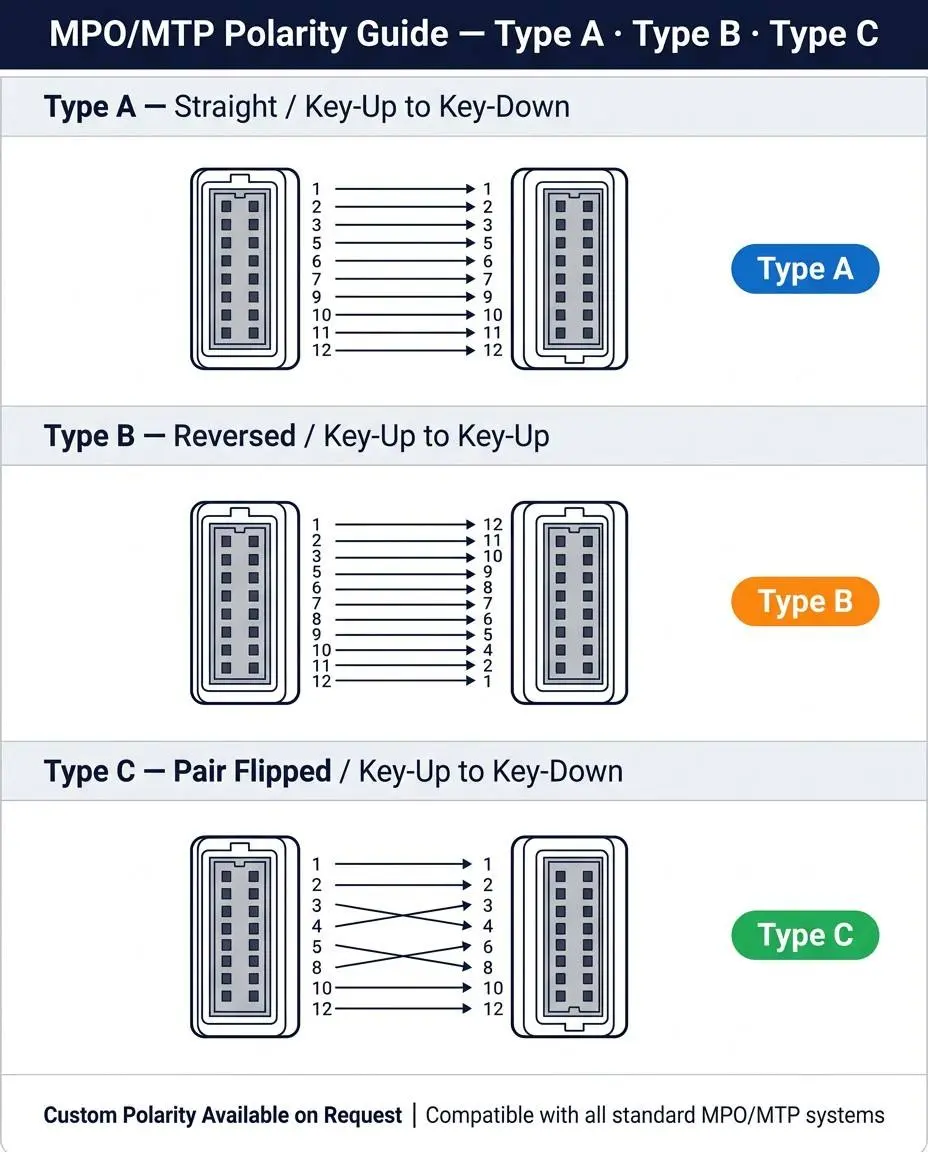

MPO Patch Cord Polarity Management Solutions
Correct polarity ensures Tx and Rx fibers are properly matched in every MPO Patch Cord link. We support Type A, Type B, and Type C polarity methods with precision-terminated, factory-tested assemblies.
Straight-Through Connection
Uses key-up to key-down adapters, mapping Position 1 to Position 1. The simplest configuration, widely used in base-level backbone extensions and pre-existing structured cabling upgrades. Non-flip design at both ends.
Crossover (Full Flip)
Uses key-up to key-up adapters, mapping Fiber 1 to Position 12. The dominant standard for 40G BiDi and 100G SR4 transceivers -the most frequently specified type for direct-attach high-speed links in modern data centers.
Pair-Wise Flip
Performs an adjacent pair swap at each end, mapping Fiber 1 to Position 2 and vice versa. Designed to maintain correct Tx/Rx polarity when migrating from duplex LC environments to high-density MPO structured cabling.
Engineered for Every Installation Environment
Each MPO Patch Cord jacket option is selected according to installation pathway, fire rating, smoke toxicity, and mechanical protection requirements found in global data center deployments.
LSZH -Low Smoke Zero Halogen
Produces minimal smoke and zero halogenic gases when exposed to fire. Mandatory for enclosed data halls, MRI facilities, and transport hubs where toxic fumes endanger personnel and equipment.
OFNP -Plenum Rated
Rated for air-handling plenum spaces above ceilings and below raised floors. Self-extinguishing with minimal flame spread -required by NEC Article 770 for North American and many LATAM building codes.
OFNR -Riser Rated
Designed for vertical backbone runs between floors in conduit or enclosed pathways. Prevents fire from traveling floor-to-floor. Ideal for IDF-to-MDF inter-building campus backbone applications.
Ultra-Low Insertion Loss Precision
Our Elite MPO Patch Cord series delivers <=0.35dB insertion loss, helping maximize optical power budget for 100G, 400G, and future 800G deployments. Every assembly is tested before shipment to confirm stable IL and RL performance.
- Return Loss (APC) >=65 dB
- Test Wavelengths 1310 / 1550 nm
- Fiber Types OS2, OM3, OM4, OM5
The Science Behind Elite Grade Performance
Every 0.1dB of insertion loss saved can extend link distance and expand network topology options. This is why a low-loss MPO Patch Cord is critical for cascaded connections, patch panels, and future high-speed upgrades.
Lower Loss vs. Market Average
Commodity MPO connectors often average 0.70-1.00dB insertion loss. Our Elite MPO Patch Cord series consistently targets <=0.35dB, creating stronger optical budget headroom for cascaded connections and future upgrades.
Individual Assembly Testing
Every fiber in every MPO Patch Cord assembly is tested at both 1310nm and 1550nm. IL and RL values are recorded against the product serial number, not estimated from batch samples. You receive a printed data sheet with every shipment.
Future-Ready Link Budget
The strict IL performance of our Elite MPO Patch Cord makes it a strong choice for 100G deployments today and helps prepare cabling infrastructure for 400G and 800G transceiver migration without unnecessary cable replacement.
How We Stack Up Against the Competition
Compare Elite MPO Patch Cord specifications with standard market offerings and understand the differences in insertion loss, return loss, testing, traceability, and regional support.
| Specification | Glory Fiber Elite Recommended | Glory Fiber Standard | Typical Market Grade |
|---|---|---|---|
| Max Insertion Loss | <=0.35 dB | <=0.70 dB | <=1.00 dB |
| Min Return Loss (APC) | >=65 dB | >=60 dB | >=55 dB |
| 100% IL/RL Factory Test | Yes | Yes | Sampling only |
| 3D Interferometer End-Face | Yes | Yes | No |
| Serialized Test Report | Yes | Yes | No |
| Mating Cycle Rating | >=500 cycles | >=500 cycles | >=200 cycles |
| LATAM Regional Support | 48hr SLA | 48hr SLA | No local office |
Purpose-Built for South American Infrastructure
Our MPO Patch Cord deployment program includes regional stock support, engineering guidance, and regulatory compliance assistance for data center and telecom projects across six countries.
Brazil (ANATEL)
Full ANATEL compliance documentation for fiber optic infrastructure. Sao Paulo regional stock hub with next-day delivery to major data centers in SP, RJ, and BH.
Colombia (CRC)
Supporting Bogota's rapidly growing cloud and carrier-neutral data center ecosystem. CRC-compliant documentation and in-country technical consultancy available.
Chile / Peru / Argentina
Regional distribution from our Miami hub with standard 5-7 business day delivery. Telecom authority compliance documentation available for SUBTEL, OSIPTEL, and ENACOM.
100% Factory Tested Reliability
Every MPO Patch Cord assembly passes a three-stage inspection process before shipment, with no sampling and no exceptions. Each unit is serialized and traceable from raw fiber to finished connector.
3D Interferometer End-Face Geometry
Vertex offset <50um; radius of curvature 7-25mm per IEC 61300-3-35.
Dual-Wavelength IL / RL Measurement
Tested at 1310nm and 1550nm, logged against each assembly's serial number.
Visual Inspection & Packaging
200x end-face microscopy, polarity labeling, sealed packaging confirmed.
Our Zero-Compromise Quality Framework
ISO 9001-certified from incoming fiber inspection through final packaging seal, with every MPO Patch Cord production step documented and traceable.
MPO Patch Cord assemblies that pass first-time without rework, compared with an industry average near 92%.
Every fiber face inspected at 200x per IEC 61300-3-35 Grade A/B criteria.
Each assembly carries a unique serial number linking it to its complete test record and CoC.
Full quality management system certification covering design, manufacturing, and shipping.
Frequently Asked Questions
Everything you need to know about MPO Patch Cord assemblies, polarity, fiber count, ordering, testing, and regional support.
An MPO Patch Cord uses a multi-fiber push-on connector based on the IEC 61754-7 / TIA-604-5 interface. MTP is a registered trademark of US Conec for a high-performance MPO-style connector with refinements such as removable keys, floating ferrules, and tighter tolerances. Our Elite MPO Patch Cord series can use MTP-grade ferrules when lower insertion loss and stronger consistency are required.
The correct MPO Patch Cord polarity depends on your transceiver type, cassette layout, adapter orientation, and cabling topology. Type B is commonly used for direct 40G/100G links, Type A is often used for inter-panel connections, and Type C supports selected duplex LC migration scenarios. Our engineering team can review your topology diagram and recommend the correct polarity scheme.
We manufacture MPO Patch Cord assemblies in 8, 12, 24, and 48-fiber configurations. Standard lengths range from 1m to 100m, with custom lengths available for project-specific cabinet layouts. Options include OS2 single-mode and OM3, OM4, and OM5 multimode fiber variants.
Yes. Every MPO Patch Cord shipment includes a printed and PDF test report documenting IL and RL measurements for each fiber at both 1310nm and 1550nm wavelengths, plus a 3D interferometer end-face geometry summary when required. Each report is linked to the assembly serial number for full traceability.
We maintain technical support partnerships in Brazil, Colombia, Chile, Peru, Argentina, and Uruguay. Engineering inquiries are responded to within 48 hours. For Tier-3/Tier-4 data center projects we offer on-site pre-installation consultation, post-installation OTDR trace verification, and spare stock consignment arrangements. Contact our regional sales team for coverage details in your country.
There is no minimum order quantity for standard configurations. We supply single assemblies for lab testing and evaluation as well as large project quantities. Sample kits (typically 2-4 assemblies of specified polarity and fiber count) are available at cost for qualified projects. For OEM or integration partner arrangements requiring 500+ assemblies per month, contact us for volume pricing.
Engineering Support for MPO Patch Cord Projects
