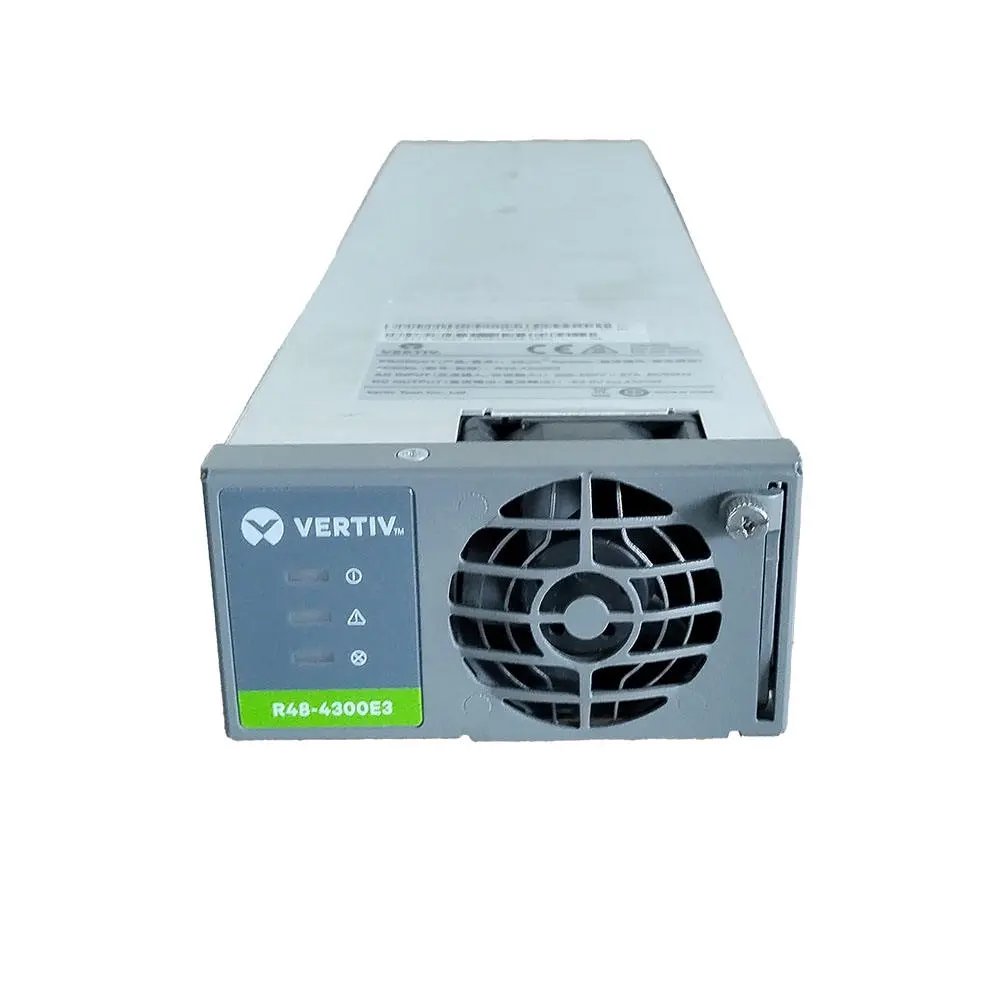

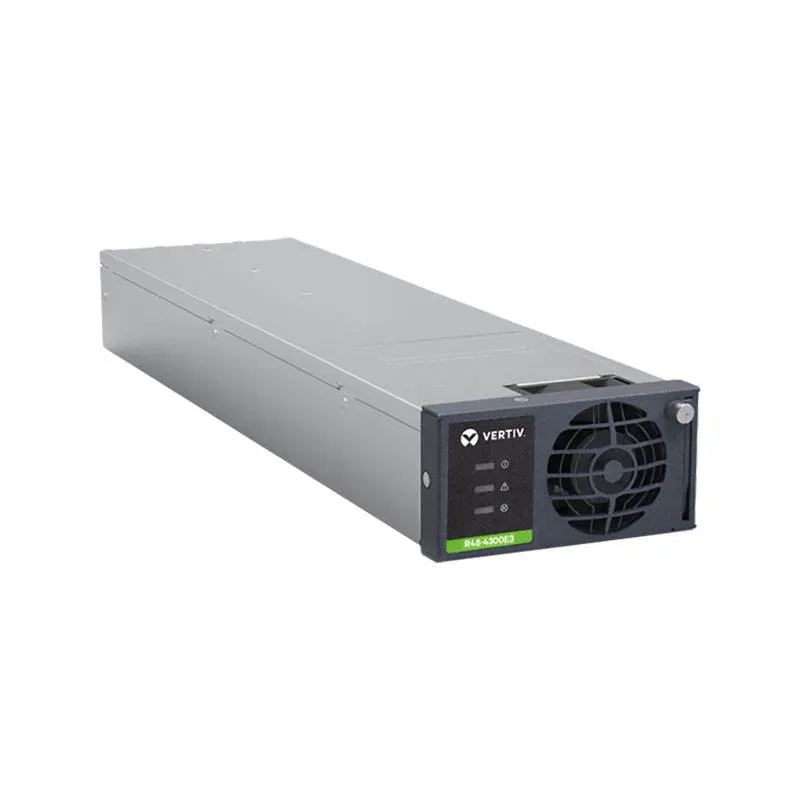

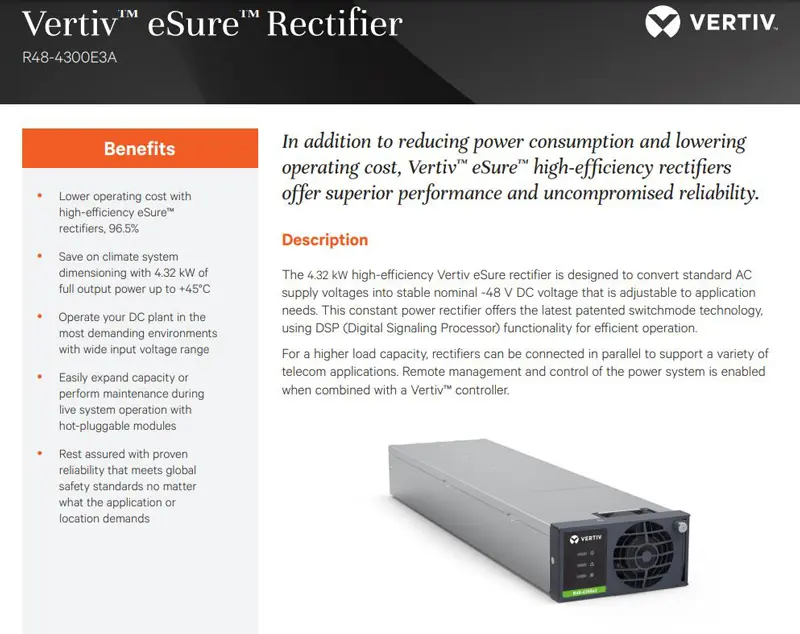

The 4.32 kW high-efficiency Vertiv eSure rectifier is designed to convert standard AC supply voltages into stable nominal -48 V DC voltage that is adjustable to application needs. This constant power rectifier offers the latest patented switchmode technology,using DSP (Digital Signaling Processor) functionality for efficient operation. For a higher load capacity, rectifiers can be connected in parallel to support a variety of telecom applications. Remote management and control of the power system is enabled when combined with a Vertiv™ controller.
Specification：
|
item
|
value
|
|
Model Number
|
R48-4300e3
|
|
Type
|
Telecom Power
|
|
Place of Origin
|
China
|
|
Brand Name
|
OEM
|
|
Use
|
Telecommunication
|
|
Model
|
R48-4300E3
|
|
Dimensions (H *W *D)
|
41*84.5*330mm / 1.61*3.33*13inches
|
|
Weight
|
2kg / 4.41lbs
|
|
Operation temperature
|

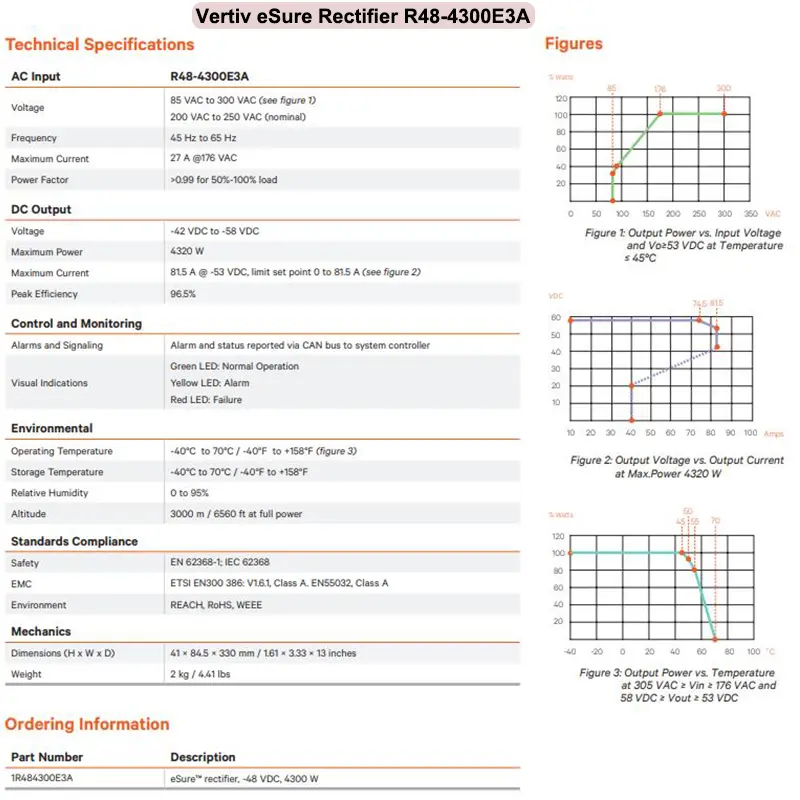

-40°C to 70°C / -40°F to +158°F (figure 3)
|
|
Storage temperature
|
-40°C to 70°C / -40°F to +158°F
|
|
MOQ
|
1pcs
|
|
Logo OEM
|
Yes
|
|
Warranty
|
1 Year
|
|
Application
|
Telecom power
|
|
Part Number
|
1R484300E3A
|
-
