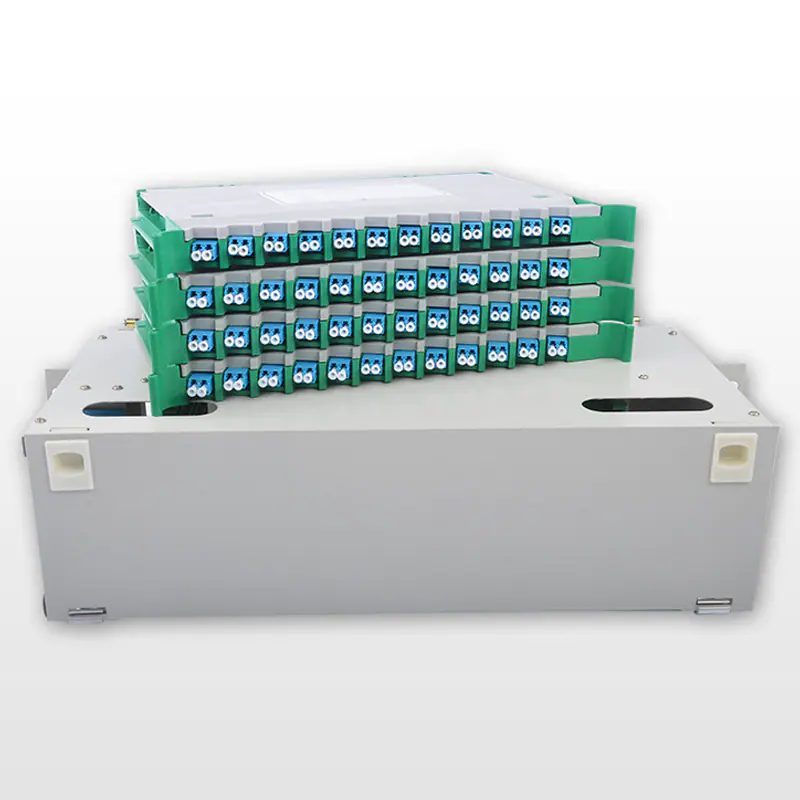

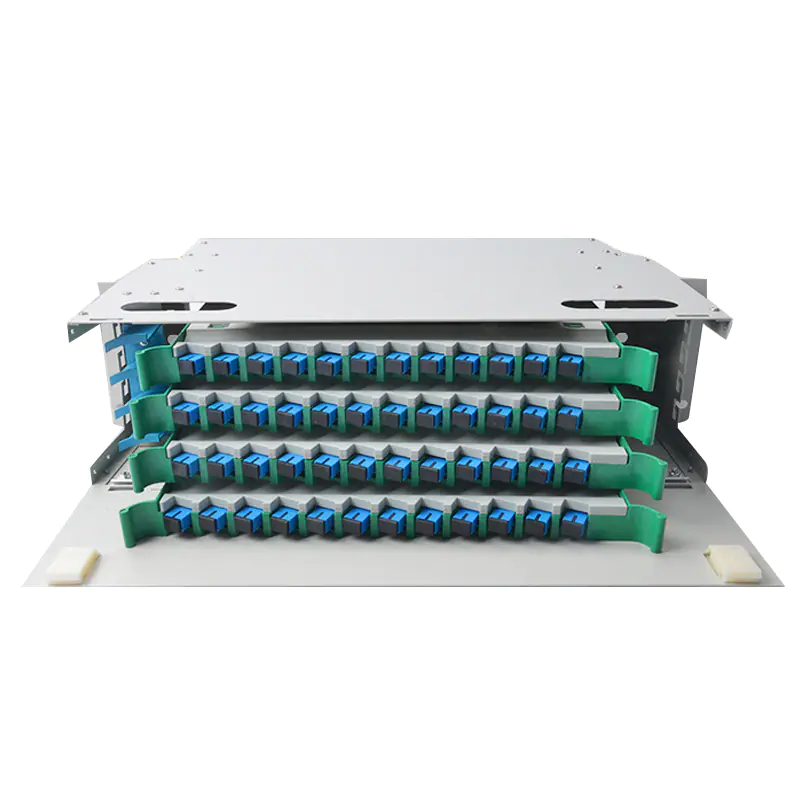

FTTH Outdoor Optical Fiber Distribution Frame ODF Rack Mount

Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.

Category: Tags:

Description

FTTH outdoor optical fiber distribution frame ODF rack mount 12 24 48 96 144 core port ODF

Feature

1) Standard size, light weight and reasonable structure

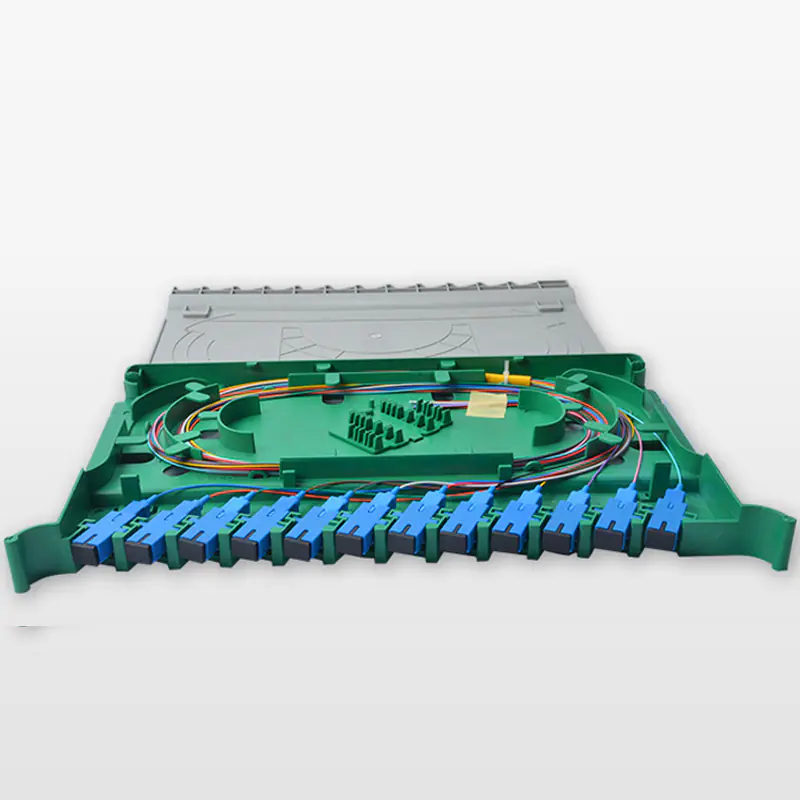

2) Splice tray inside changeable
3) Can be used in 19”, 23” standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation

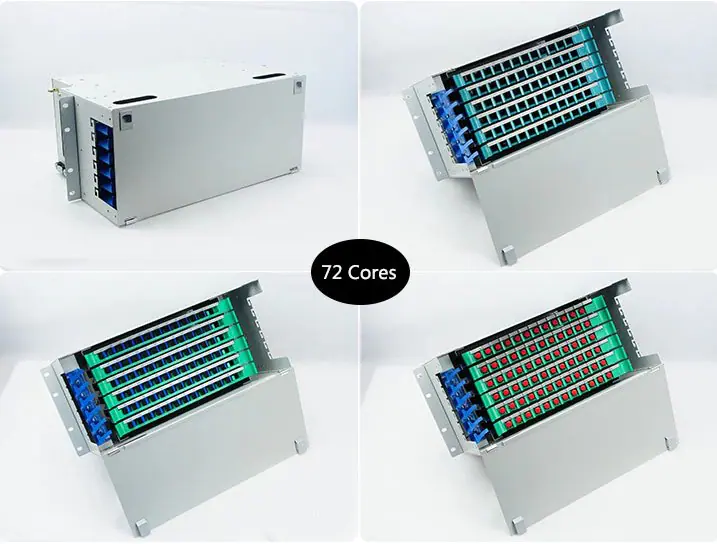

7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

Request a quote
Technical Information

Type: Cable installation, wall mount

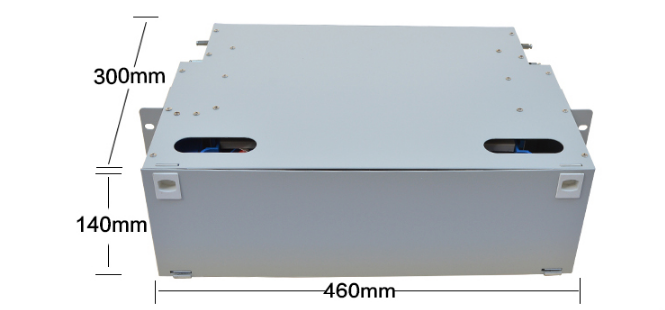

Size: 40x38x14cm , 30x30x8.5cm, 40.5x38.2x8.5cm
Capacity: 48 SC, 96 LC
Connector options: SC, SC/APC, LC, LC/APC, ST, FC

Application

1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
