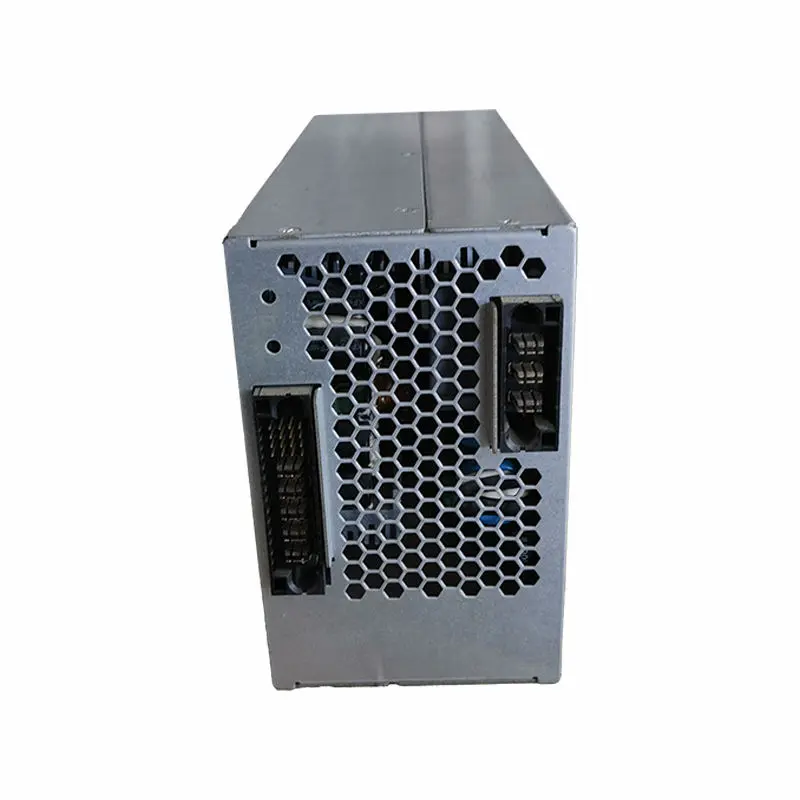

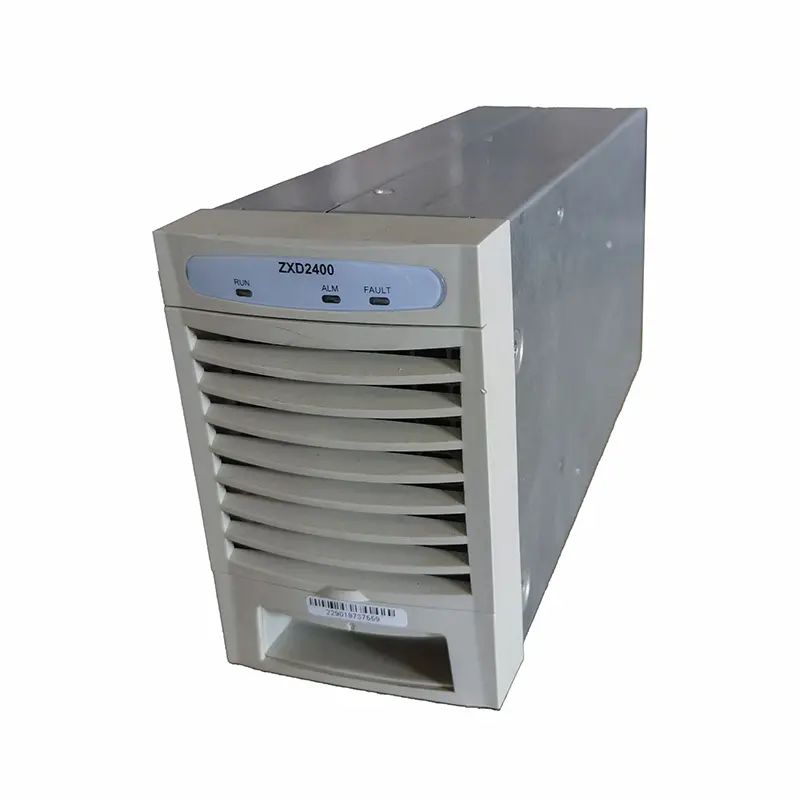

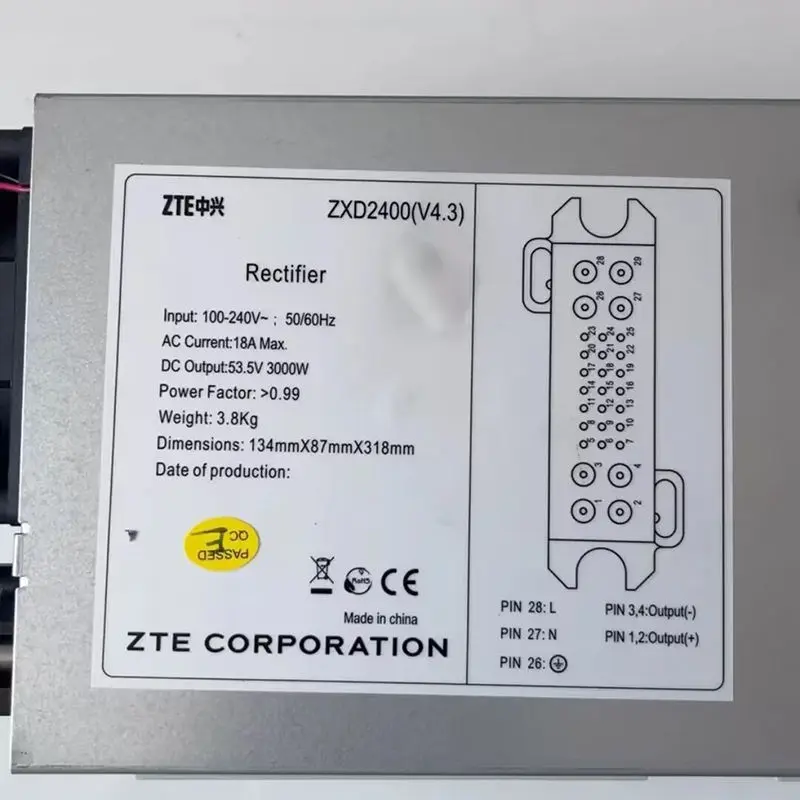

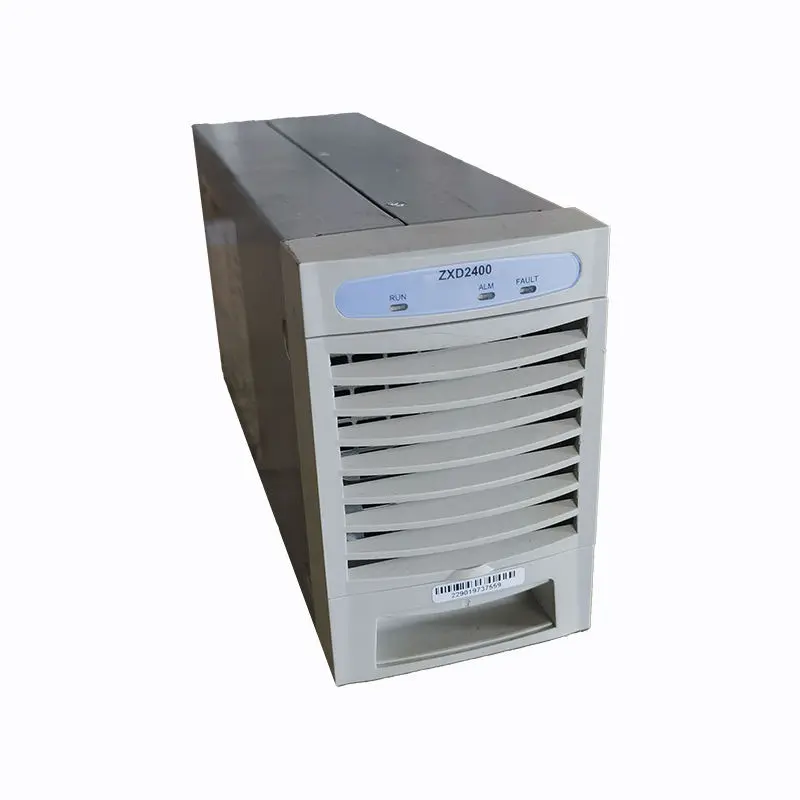

ZXD2400 Rectifier V4.3 48V 3000W
The ZXD2400(V4.3) rectifier is a switching rectifier for communication DC power supply system, and its rated DC output is
53.5V/50A, complete the output conversion from AC to DC.
ZXD2400 rectifier is designed according to international standards for the working environment of small and medium-sized communication systems. Power supply for small switching equipment, microwave communication, data products, optical fiber transmission and other communication equipment.
Features of ZXD2400 Rectifier
• Active power factor correction technology is adopted to reduce the pollution of equipment to the power grid.
• Meet the power supply requirements of 110 V/120 V/127 V power grid system and 220 V power grid system. Wide input voltage range.And is suitable for areas with large fluctuation of power grid voltage.
• High power density. When power is supplied in 110 V/120 V/127 V power grid, the power density is as high as 568 mW/cm 3. The power density is as high as 854 mW/cm 3 in 220 V power grid system.
Specification：
|
Dimension
|
134 mm×87 mm×318 mm(H×W×D)
|
|
Weight
|
3.8 kg
|
|
Rated output current
|
50A
|
|
Maximum output power
|
3000W
|
|
DC output voltage
|
The rated output is 53.5 V (absolute value, voltage polarity is determined by connection), and the output is continuously
adjustable from 42 v to 58 v. |
|
Voltage stabilizing accuracy
|
≤±0.6%
|
|
Working temperature
|
-5℃ ~ +45℃
|
|
Storage temperature
|
-40℃ ~ +70℃
|
|
Relative humidity
|
10% ~ 90%
|
|
Altitude
|
0 ~ 2000 m: full power output
|
|
2000 m～3000 m: for every 100 m elevation, the system will be derated by 1%.
|
ZXD2400 Rectifier is high efficient power supply for small switching equipment, microwave communication, data products, optical fiber transmission and other communication equipment.
-
