5GHz 23dBi 11ac Outdoor Wireless CPE
The O8 Outdoor CPE features Tenda’s proprietary TD-MAX (TDMA) protocol, cutting down interference and syncing data with the base station for better throughput and faster, more stable speeds across all devices.
O8 cpe wifi router device adopts of the independent power amplifier and 23dBi vertical polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 20km.
20km+ transmission Rang
O8 adopts of the independent power amplifier and 23dBi dual polarization direc tional antenna to provide an efficient way to pick up and maintain a stable signal for 20km wifi router distance.
CPE Assistant-Centralized Management Platform
O8 equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - CPE Assistant. Func tions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant

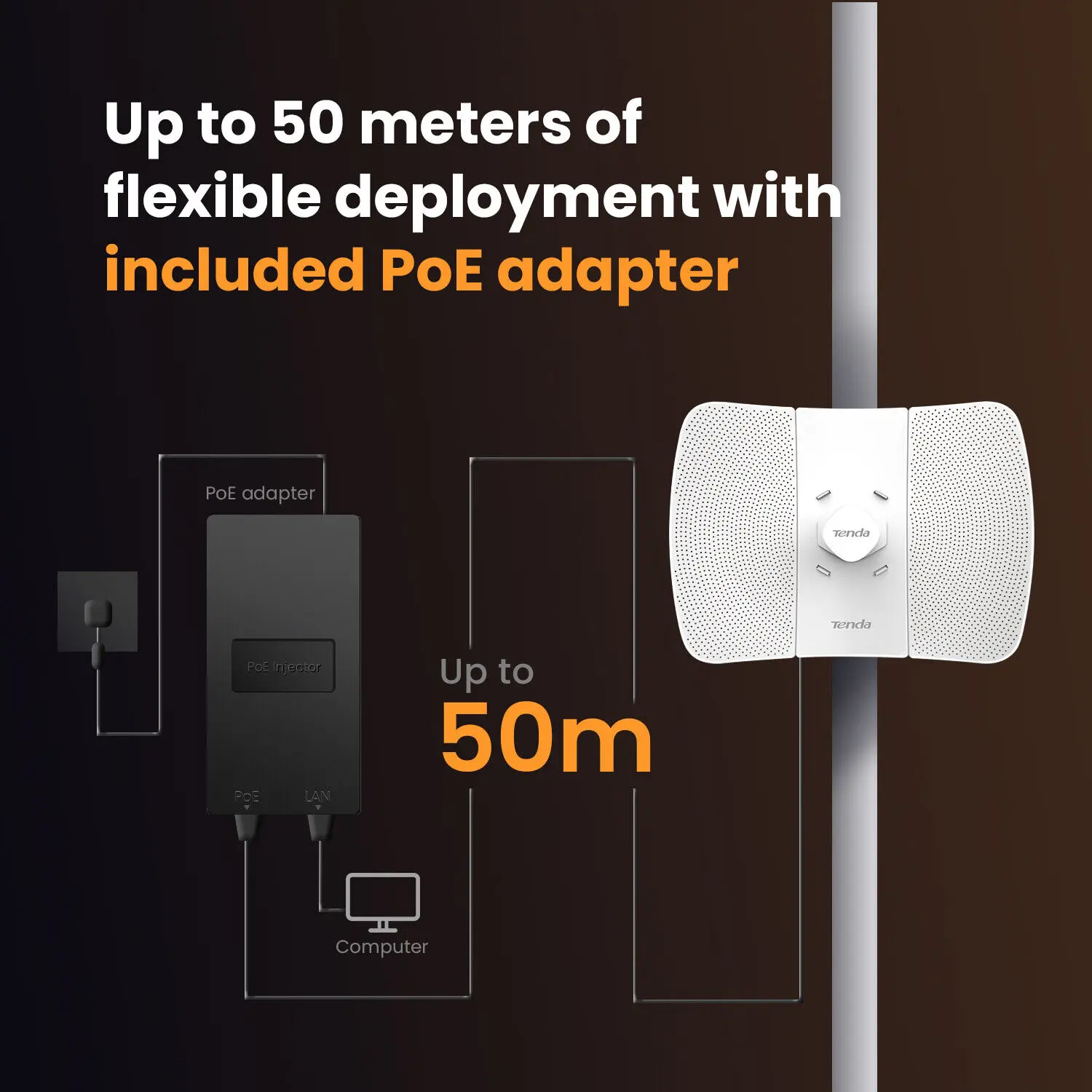

50m Flexible Deployment
Supports up to 50 meters of flexible deployment, adapting to diverse installation scenarios with ease.

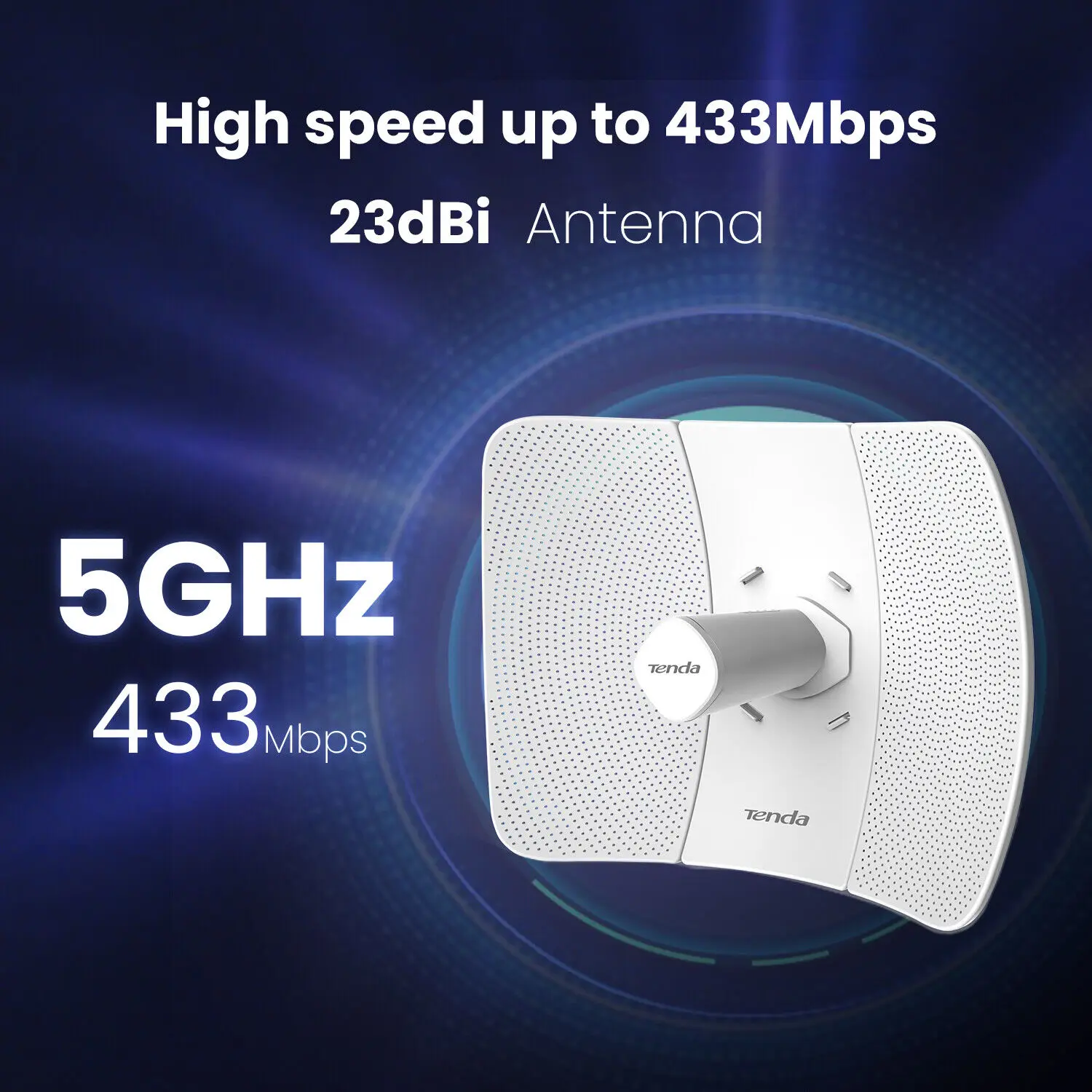

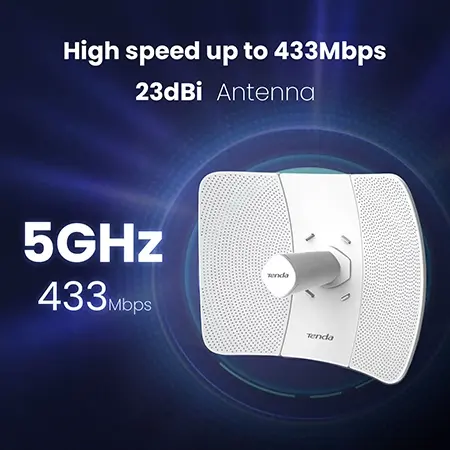

5GHz 433Mbps High-Speed
High-speed 433Mbps performance paired with a 23dBi antenna, delivering stable, fast connectivity.

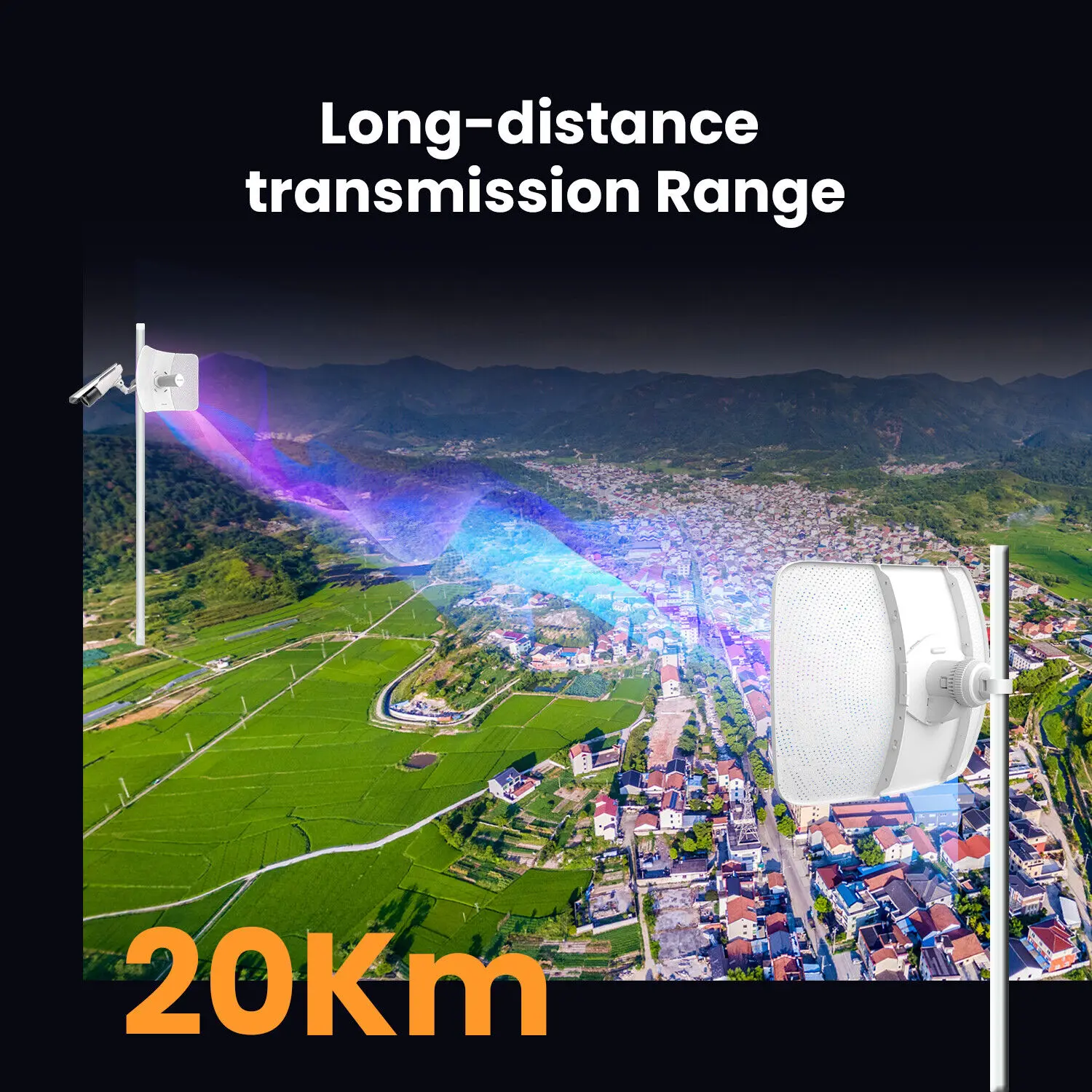

20km Long-Distance Transmission
Offers reliable transmission range up to 20km, ensuring consistent performance over long distances.
5GHz Outdoor CPE

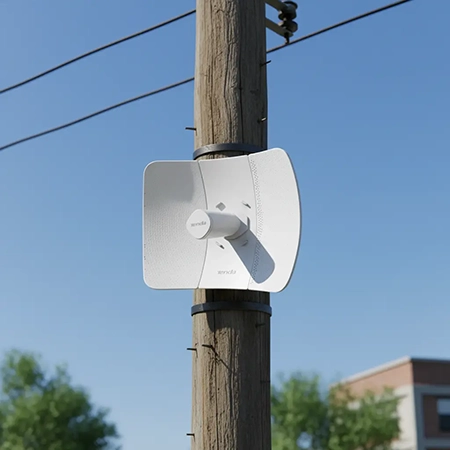

The O8 5GHz 11ac Outdoor CPE is engineered for effortless field deployment, featuring a modular design that simplifies assembly and installation. Built with a detachable CPE unit, reflector panel, secure CPE seat, and universal shaft, it enables quick mounting on walls or poles without specialized tools—streamlining setup for point-to-point (PtP) and point-to-multipoint (PtMP) wireless networks.

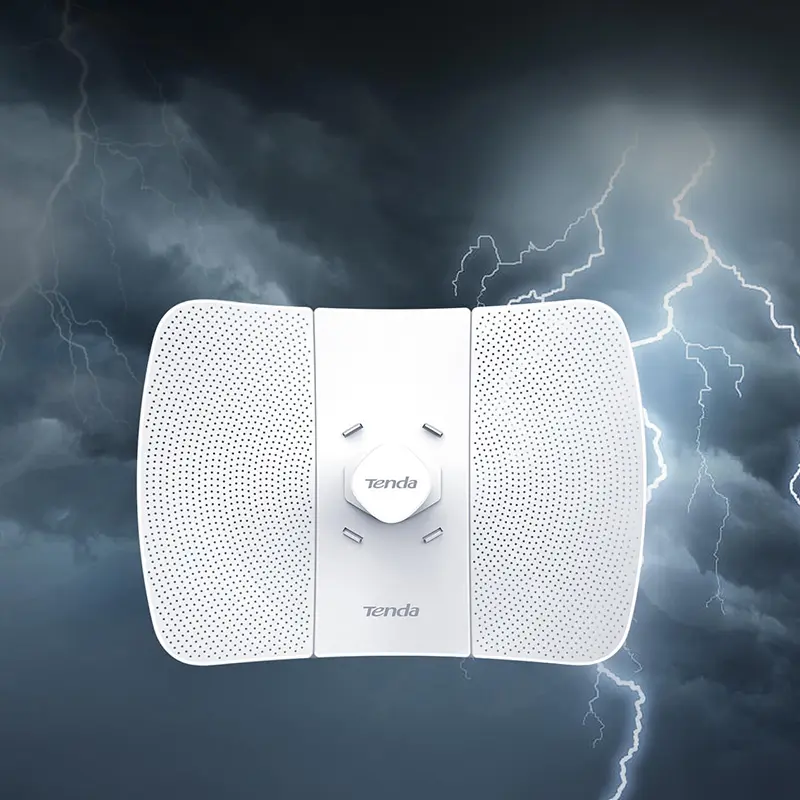

Professional-grade lightning protection
Better Performance with TD-MAX
Powered by Tenda’s exclusive TD-MAX TDMA protocol, the O8 Outdoor CPE effectively reduces signal noise and aligns data transmission with the base station. This results in improved throughput and higher, more reliable speeds for every device on the network.
The O8 5GHz 802.11ac Outdoor CPE, equipped with a 23dBi directional vertically polarized antenna, is engineered for point-to-point (PtP) and point-to-multipoint (PtMP) wireless deployments. It caters to private ISPs, video surveillance systems, and long-haul data transmission needs, delivering reliable connectivity over distances of up to 20 kilometers. Thanks to its built-in auto-bridging functionality, pairing two units requires minimal manual intervention, streamlining on-site installation and deployment.
- 5GHz 11ac 433Mbps
- One fast ethernet port
- 23dbi directional antenna
- IP65 weatherproof enclosure
- 6000V Lightning Protection
- AP,Station,WISP operating mode supported
- 50 meters passive PoE supply for flexible deployment
R&D Focus Areas
We focus on several core R&D areas, dedicated to solving key direction challenges in the energy storage sector.
20km+ transmission Rang
O8 uses an independent power amplifier and 23dBi dual-polarization directional antenna, delivering stable efficient wireless signal coverage up to 20km.
6000V Surge Protection Desig
O8 adopts a 6000V Ethernet port surge protection design, making it far more robust during thunderstorms.This built-in defense prevents lightning-related damage.

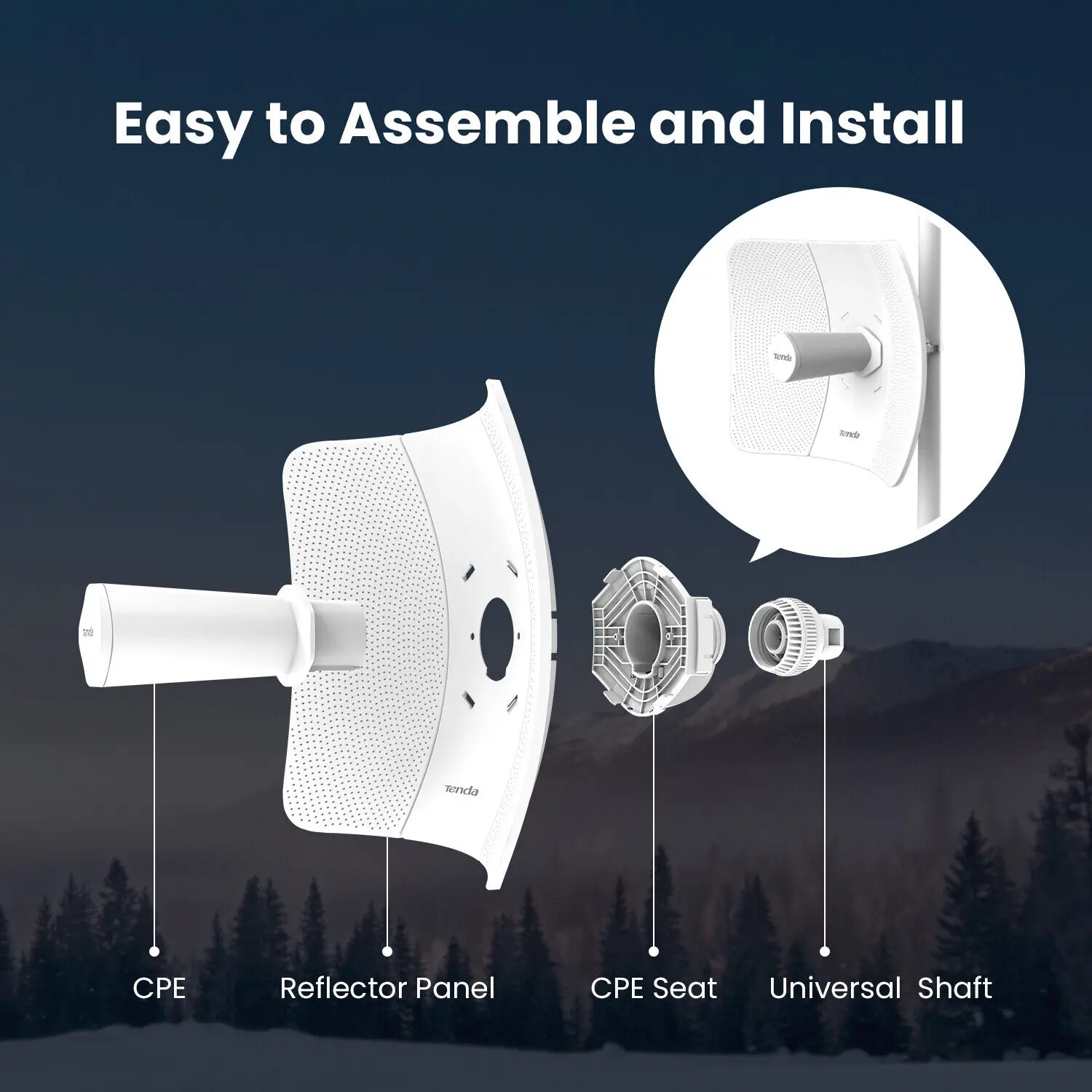

Easy to Assemble and Install
Featuring three-axis alignment design,O8 requires no tools for quick assembly.Only a screwdriver is needed for fast and secure pole mounting.
TD-MAX-TendaTDMA proprietary protocol
The proprietary TDMA protocol eliminates “hidden node” issues in long-range links, enabling reliable coordination between multi-kilometer CPEs and base stations.
Channel Shift to Avoid Interference
The 5MHz upper channel shift feature offsets central frequency interference from nearby APs, ensuring consistent throughput and reliable performance.
CPE Assistant Management Platform
Centralized software lets users manage all devices from a single PC, supporting device discovery, status monitoring,firmware upgrades,and full network maintenance.
R&D Focus Areas
We focus on several core R&D areas, dedicated to solving key direction challenges in the energy storage sector.
| Product Information | |
| Model | O8 |
| Dimension | 391.5 x 280 x 223 mm |
| Deployment | Pole Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Hardware | |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Maximum Wireless Rate | 433 Mbps |
| Interfaces | 1*10/100Mbps Ethernet Port |
| Antenna Polarization | Vertical Polarization |
| Antennas Gain | 23dBi |
| Antenna Beamwidth | Vertical: 10° Elevation: 10° |
| GND | / |
| Reset Button | 1 |
| Power Consumption | 5.5W |
| Waterproof Level | IP65 |
| LED Indicator | PoE/LAN,LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE |
| Lightning Protection | 6000V |
| Software | |
| TDMA | Support |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client Isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 20/40/80MHz |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA |
| DHCP Server | Support |
| VPN Pass-Through | PPTP, L2TP |
| Firmware Upgrade | Support |
| Others | |
| Package Contents | 1x 5GHz 23dBi 11ac Outdoor CPE O8 1x Power Adapter 1x PoE Injector |
| Operation Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%~90% non-condensing |
| Default Login IP | 192.168.2.1 |
| Default Login | admin / admin |
| Certification | FCC/CE/RoHS |
FAQ
Is the Tenda O8 Outdoor CPE fully weatherproof?
Will severe weather impact my signal?
How can I check if my device is transmitting a strong signal?
How do I monitor and adjust settings on my 11ac Outdoor CPE?
The 11ac Outdoor CPE supports the free Tenda app. You can connect via your mobile phone or laptop to modify settings, check signal status, and monitor the device in real time.
How can I install the Tenda app on my mobile device or laptop?
Can I monitor and change settings on my 11ac Outdoor CPE without using the Tenda app?
What kind of settings can I adjust on my 11ac Outdoor CPE using the Tenda app?
