GYTC8S fiber optic cable price per meter

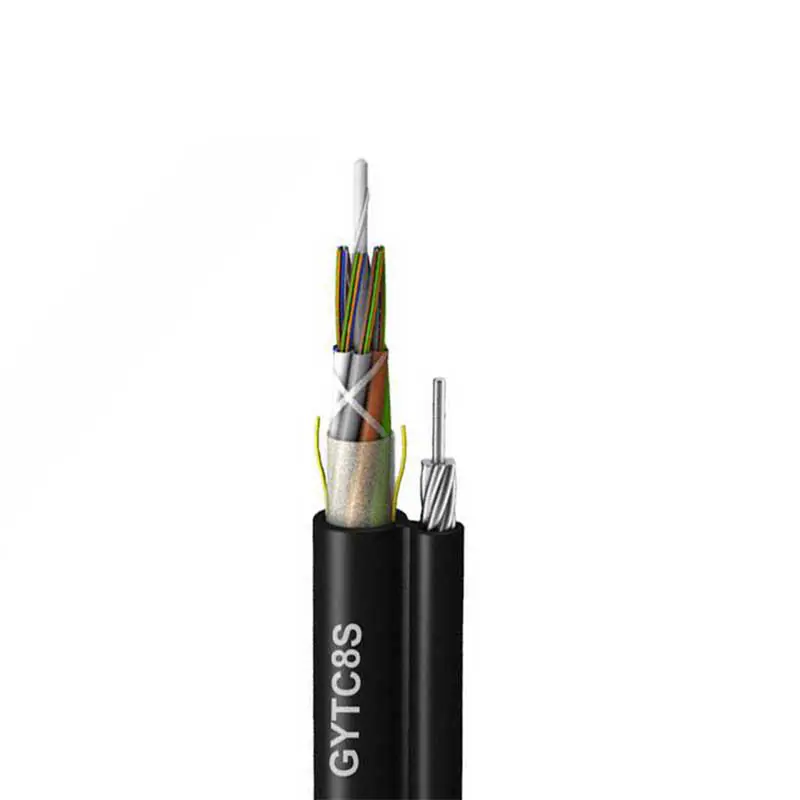

Self-supporting GYTC8S 2-24 core fiber optic Figure 8 cable

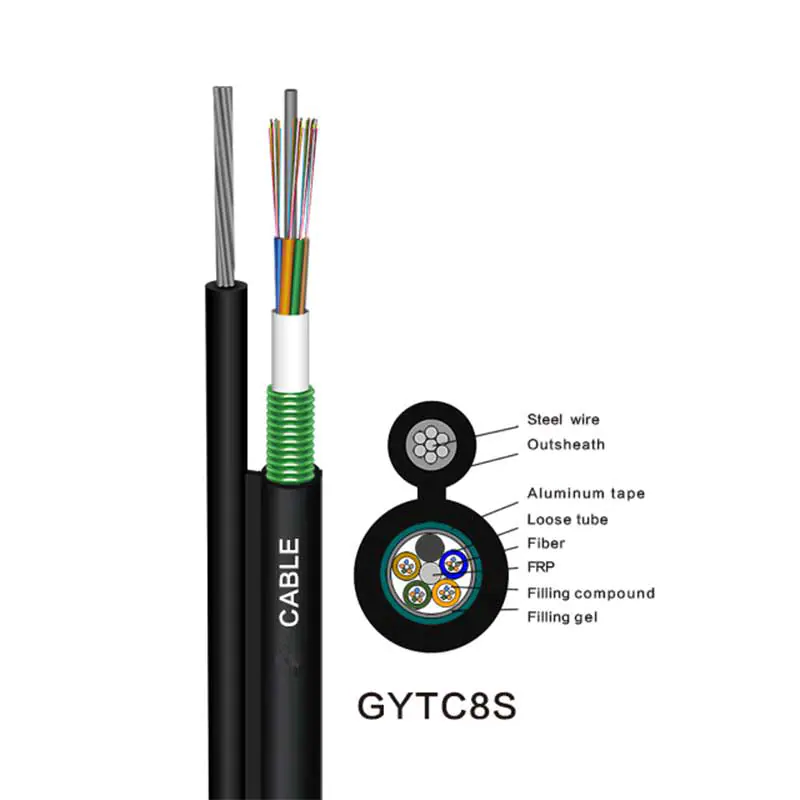

GYTC8S The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic stre

✨ Empowering Fiber Connectivity

Encompass everything from distribution terminals to drop cables, meticulously crafted for effortless installation and dependable performance.
Providing cutting-edge solutions that facilitate high-speed, reliable, and scalable fiber optic connectivity suitable for urban, rural, and industrial settings.

Tailored Network Solutions

We specialize in designing customized FTTH and FTTX solutions that cater to the specific deployment needs of clients in different countries. Our expert team collaborates with customers to ensure that our network architectures align perfectly with local infrastructure requirements.

Fiber Product Offering

We provide a wide range of high-quality telecommunications products, including optical fibers, SFP modules, patch panels, and routers. Our commitment is to deliver the most suitable products that not only meet but exceed our clients’ expectations and support their unique connectivity demands.

Category Uncategorized

Description

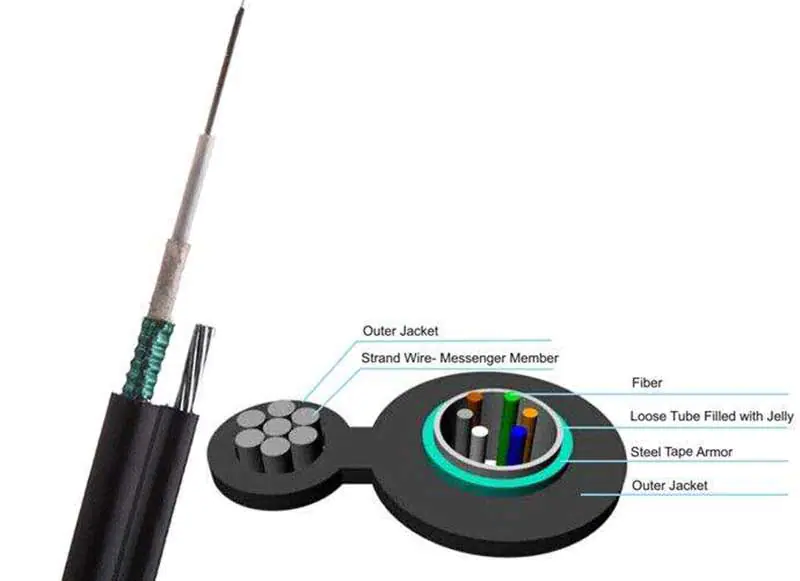

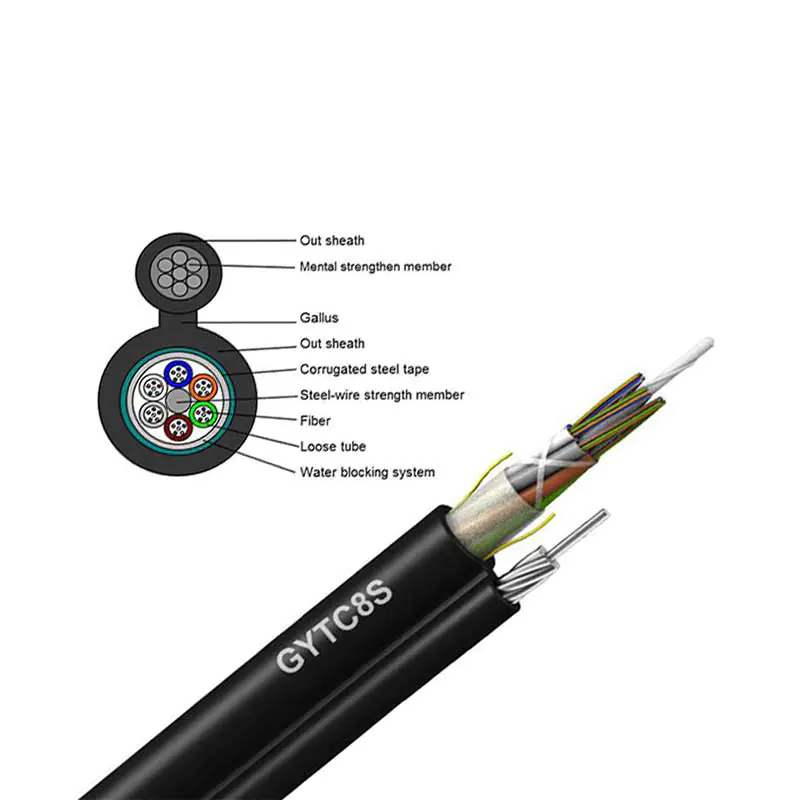

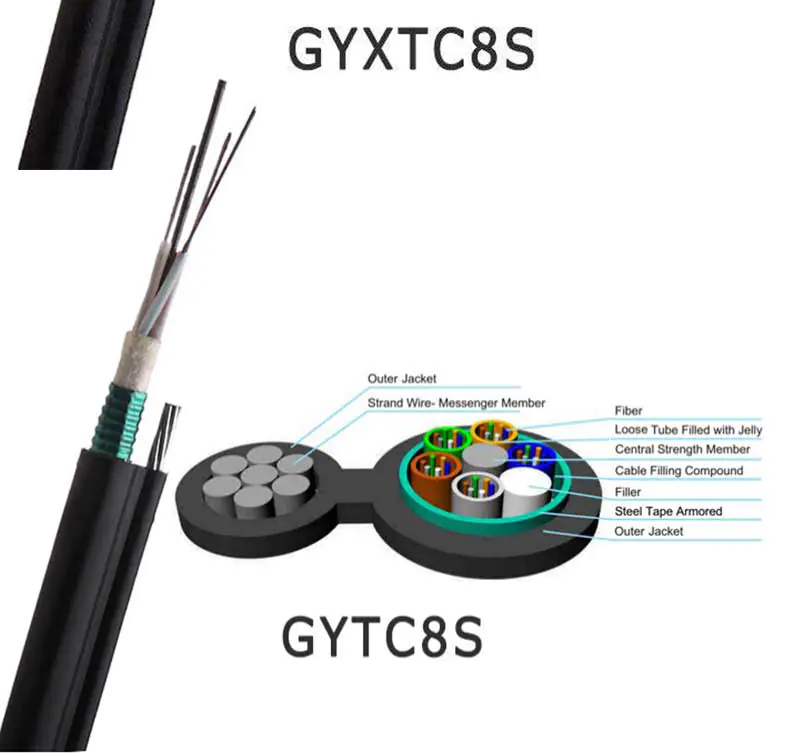

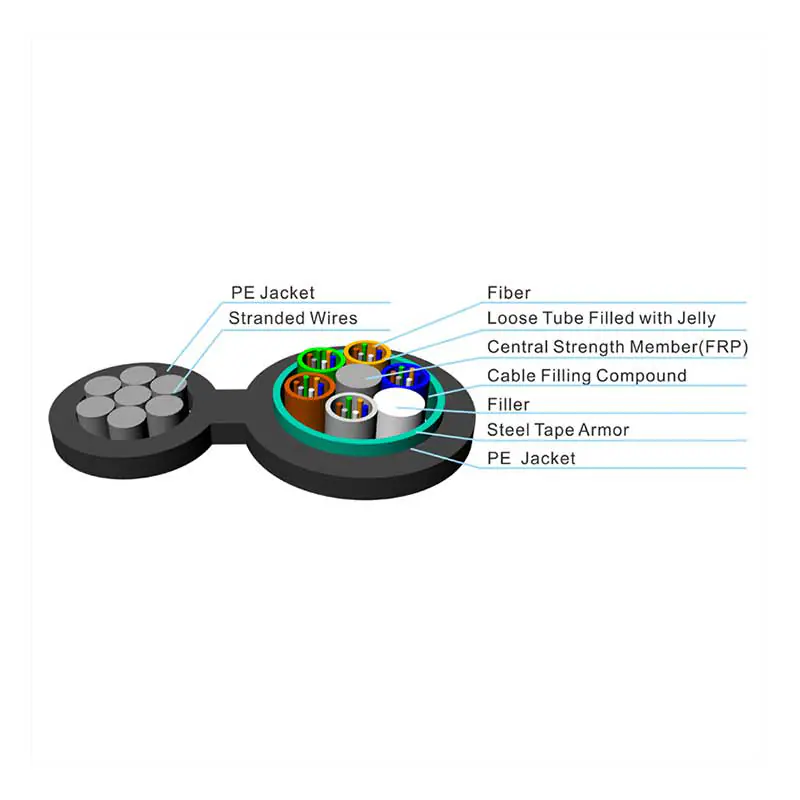

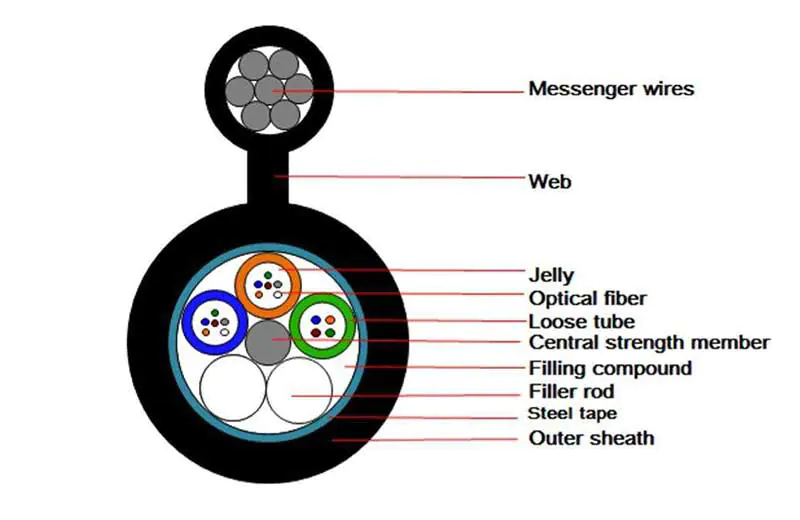

The structure of GYTC8S optical cable is to insert 250μm optical fiber into loose sleeve made of high modulus material.The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Steel plastic composite (PSP) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
