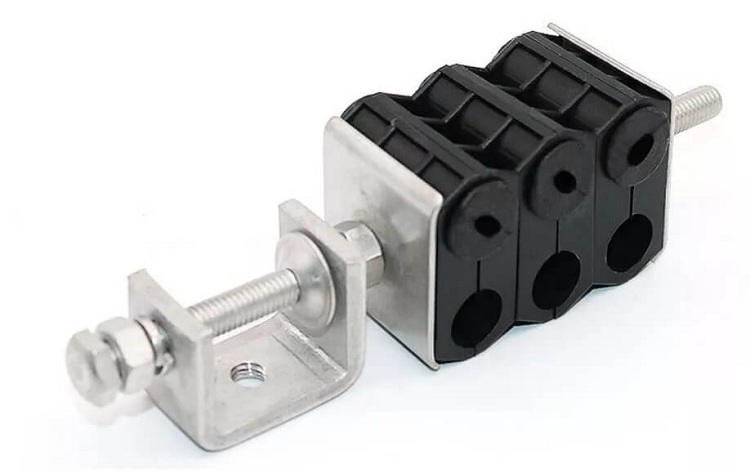

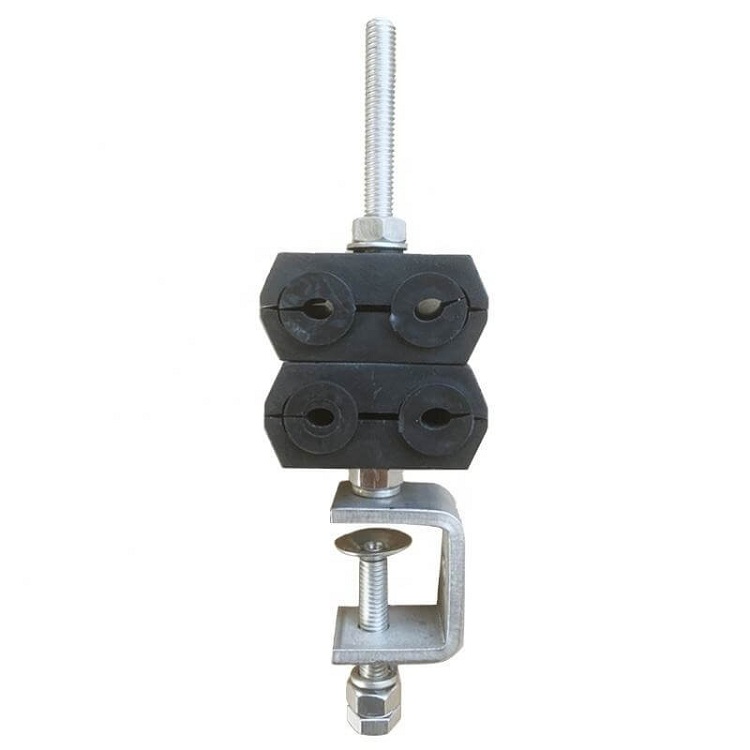

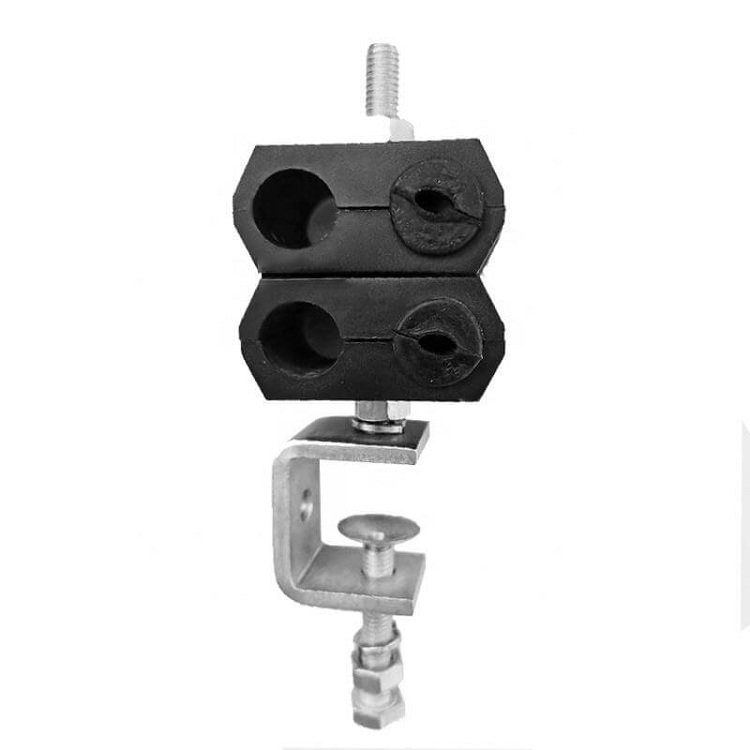

Stainless steel double hole fiber cable clamp hangers RF 1/2″ feeder clamp

$0.88$3.00

Disentwine the special bolt of the C-bracket till the ringent distance is bigger than the thick of one side of angle iron. And then tighten the special bolt M8.



Description

Product Description

1. Disentwine the special bolt of the C-bracket till the ringent distance is bigger than the thick of one

side of angle iron. And then tighten the special bolt M8; (Reference torque: 15Nm)

2. Please retire the nut onto the threaded rod ,and unclench the plastic clip;

3. Disjoin the plastic clamp,plunge the Fiber cable ofφ7mm orφ7.5mm into the small hole of plastic

clamp, plunge the 3.3 square or 4 square cable into the hole of the black rubber pipe in plastic clamp.

Remove the rubber pipe from the plastic clamp for the 6 square or 8.3 square cable and plunge the

cable into the hole of plastic clamp (figure right);

4. Lock all nuts at last. (Reference torque of lock nut M8 for clamp: 11Nm)





This Fiber Optic Cable Clamp is widely used for :

  • Telecom cable
  • Fiber cable
  • Coaxial cable
  • Feeder cable
  • Hybrid cable
  • Corrugated cable
  • Smooth cable
  • Braid cable



Technical data sheet:

Product Classification
Product Type fiber & power cable clamp
Specification
Size 7mm,9-14mm
Compatible Diameter maximum 14 mm | 0.55 in
Compatible Diameter minimum 7 mm | 0.27 in
Includes Angle adapter, plastic clamp, threaded rod, nuts, washer and rubber inserts
Material of metal part Stainless steel 304
Material of plastic part PP/PA
Cables per clamp 6
Salt spray test 168 h
Surface treatment Passivated
Warranty 3 years
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 hours
OEM Accepted
Application Telecom cable installation
Packaging & Delivery
Packaging Details Plastic bag, Carton, Pallet
Delivery Time 3-15 days

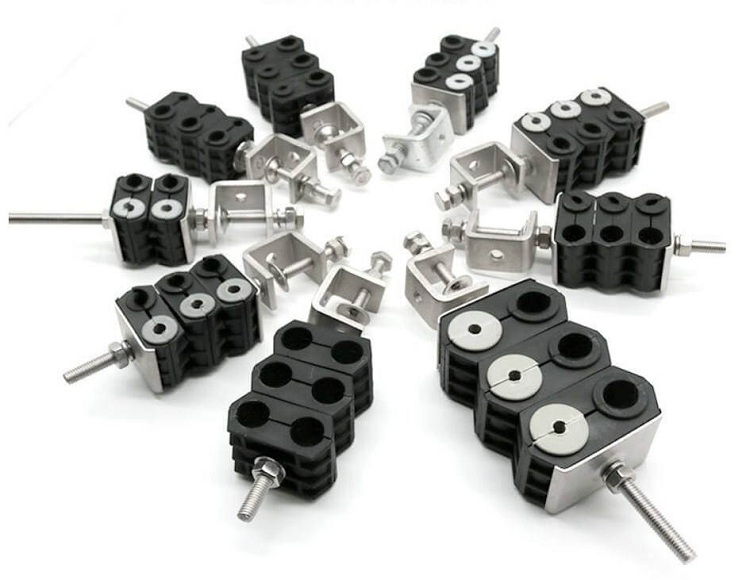

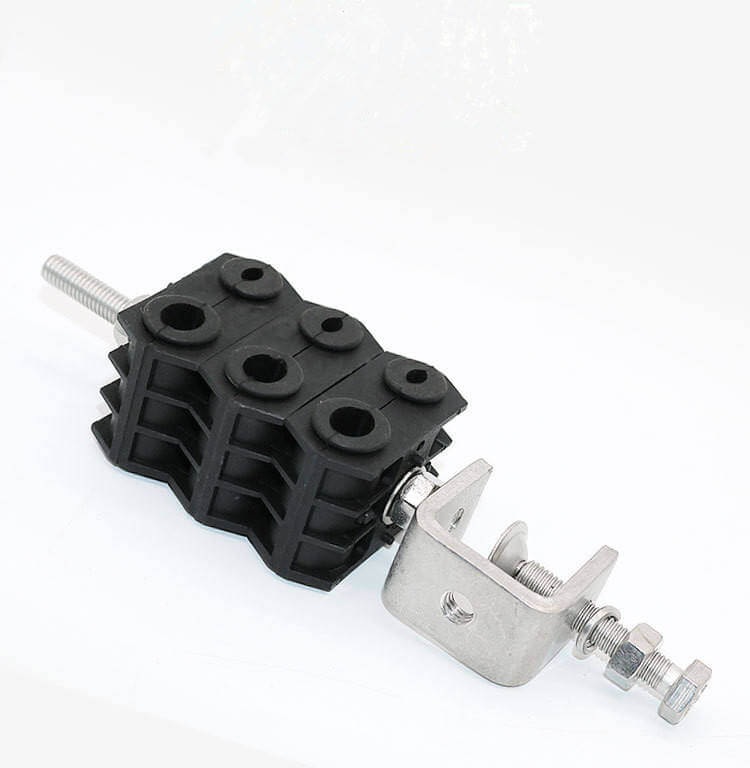

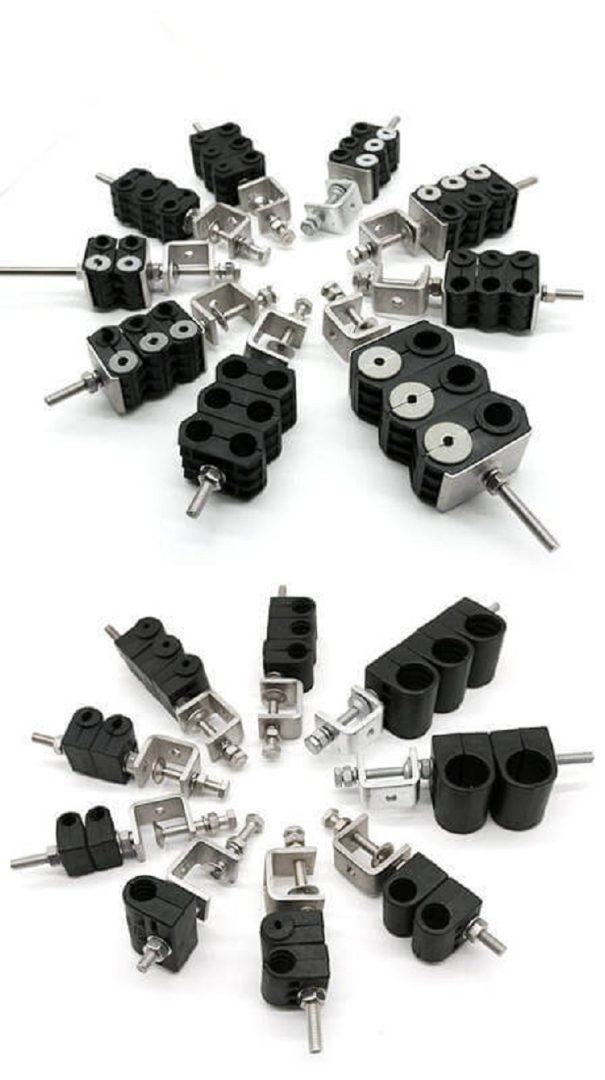

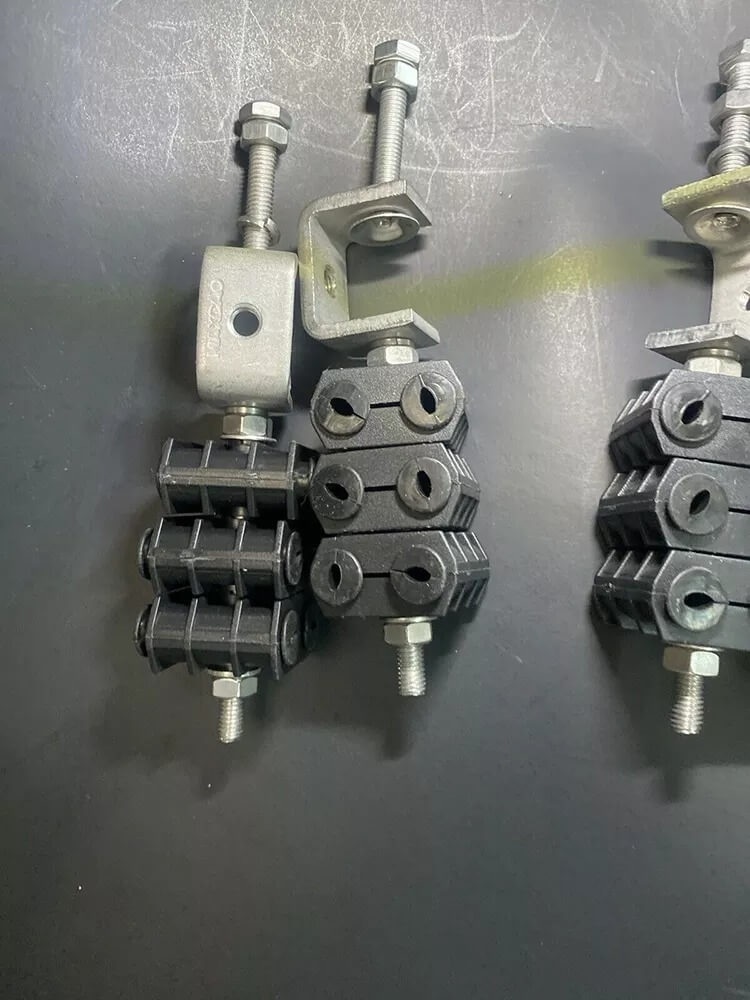

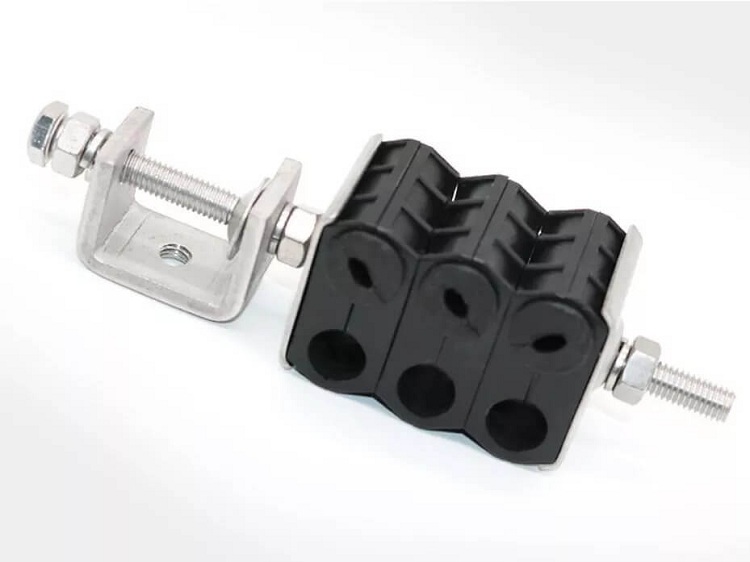

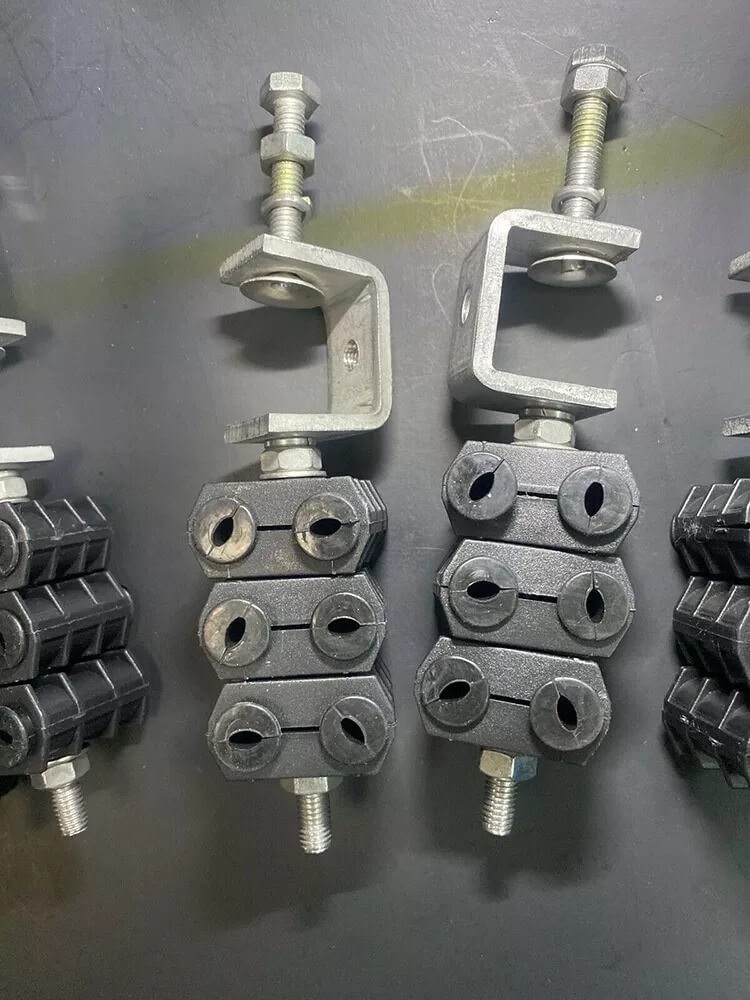

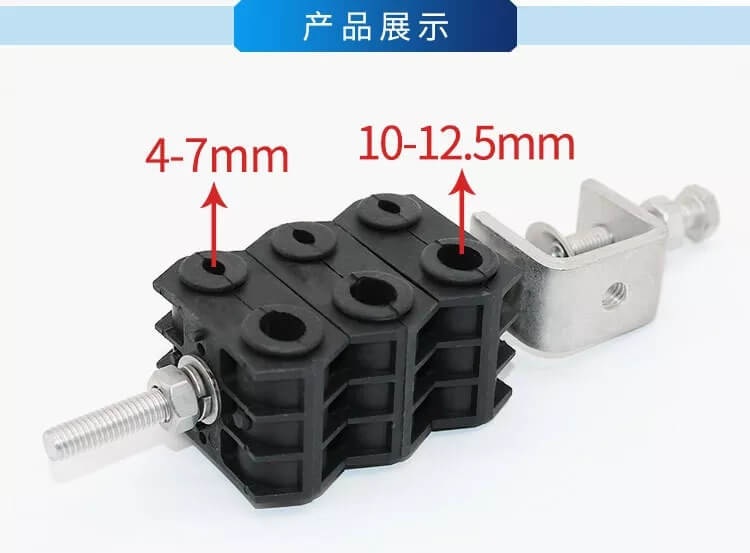

Detailed Images
