ZTE C220 | OLT | GPON, 2x EIG, 2x GCSA, 1x EPFC

C220 Multiple interfaces to meet requirements of different scenarios The system has different kinds of network, service and OAM interfaces, the interfaces are open and compatible. High density and performance design Integrate optical access, data switching and route disposal in one shelf, large amount of subscribers are supported, this help save shelf, rack and equipment room, very easy for investment protection and expansion.

Category:

Description

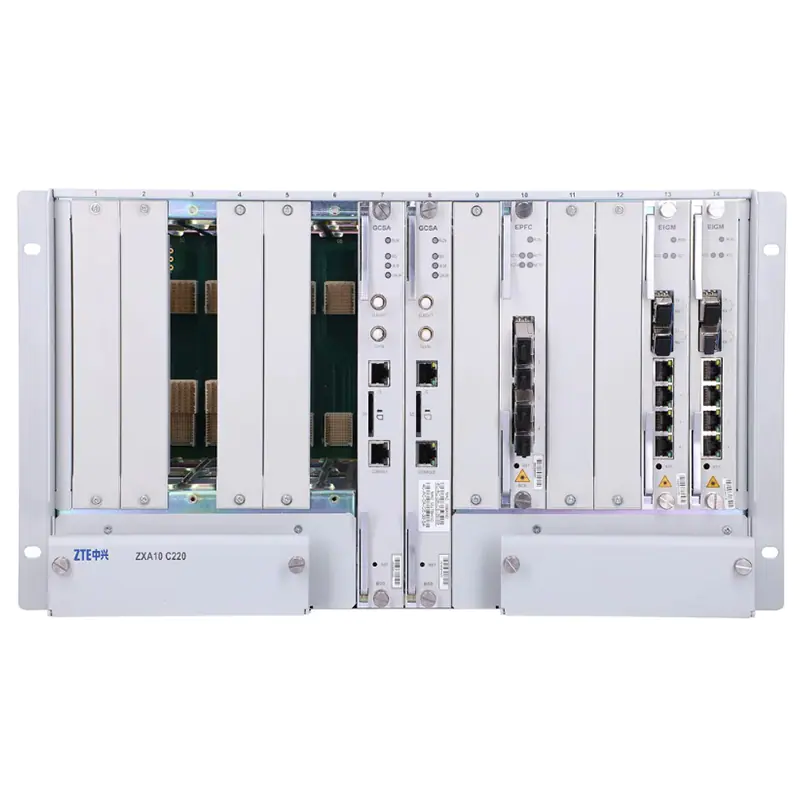

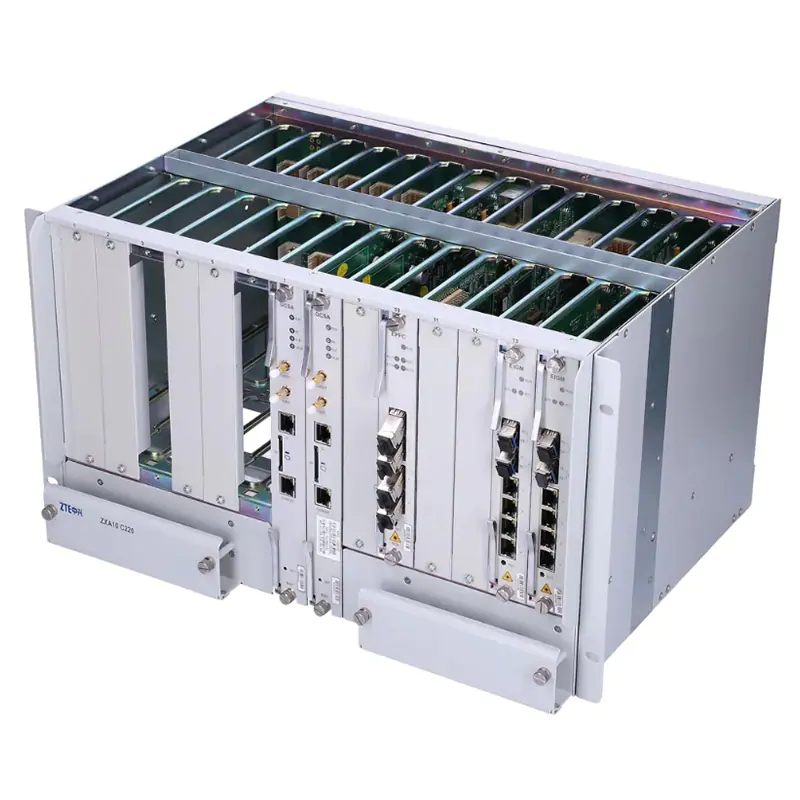

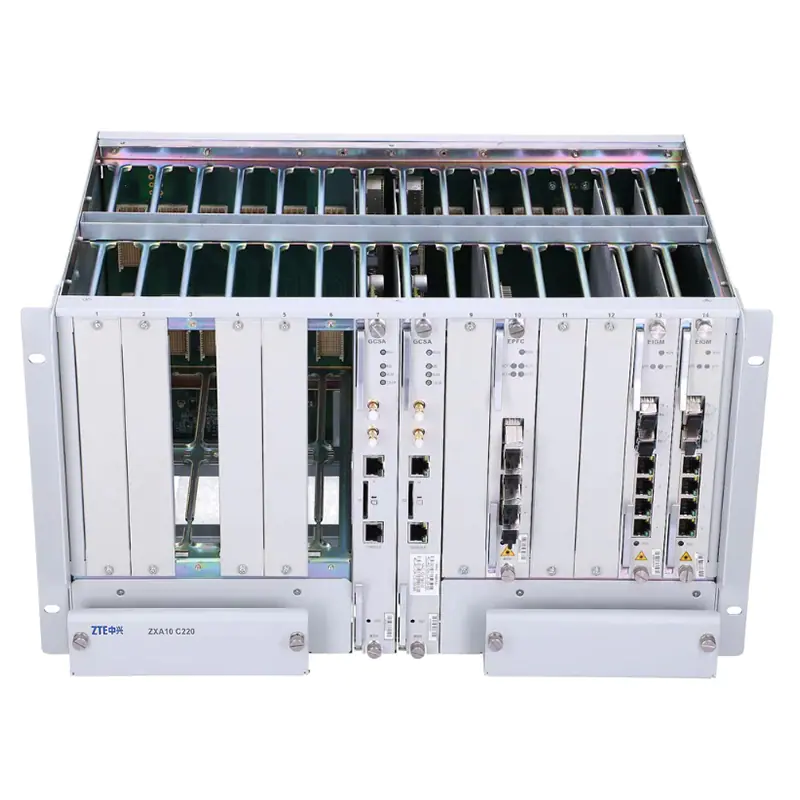

ZTE C220 – OLT GPON platform

The ZTE C220 platform provides uniform FTTx network access to a wide range of applications such as VoIP, IPTV, Internet and many more, along with QoS capabilities for stable and secure network operation.

Additional information

Wavelengths

Reception (RX): 1310
Dispatch (TX): 1490

Optical power

From 2 to 7 dBm

Sensitivity of reception

-27 dBm

Maximum range

20 km

Maximum partition coefficient

1:32

Capacity

8 x PON 256 x ONU

Shipment port

8 x Port 10/100/1000 Ethernet RJ-45

PON Port

8 x SC optical port

Control port

RJ45 / RS232 for debugging the device

Protocols supported

Support for SNMP-based GUI management
Support for local serial management interface and Telnet GUI based on CLI

Other functions

Support of IGMPv1/v2 protocol report, checking and leaving messages
DHCP Snooping support
Support for IPv4 recognition based on DHCP Snooping
ARP Snooping, QoS support

GEON features

IEEE802.3ah support
DBA support with a minimum transfer rate of 1 Kb/s with adjustable grain size
Support for symmetrical 1 Gb/s upload and download link
Support AES-128 encryption on each logical link identifier
Support for OAM functions, Implementation of telnet management, Management and updating

Expansion card specifications

2 x EIG
2 x GCSA
1 x EPFC
