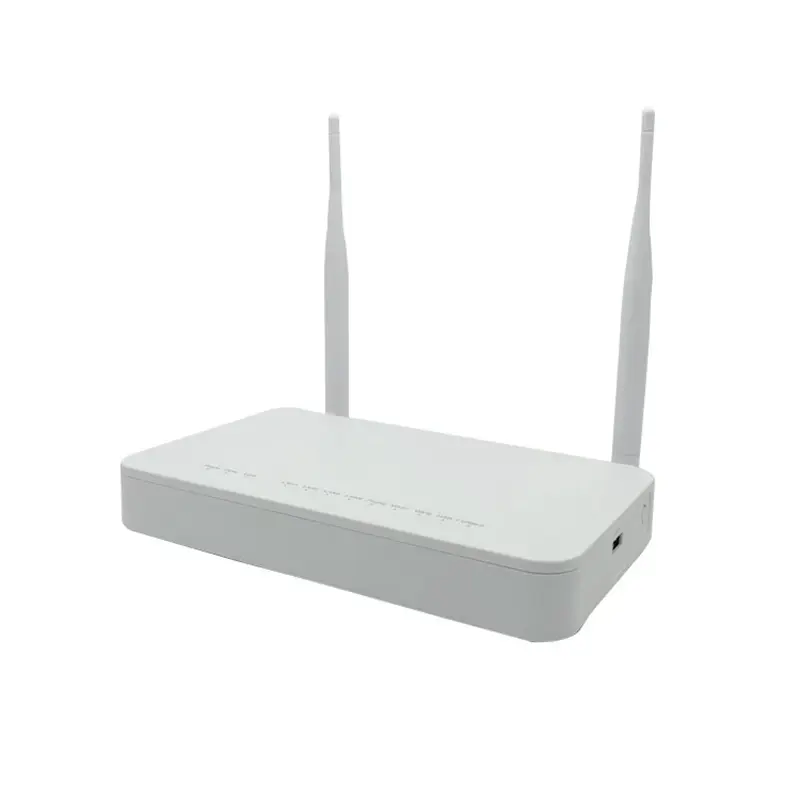

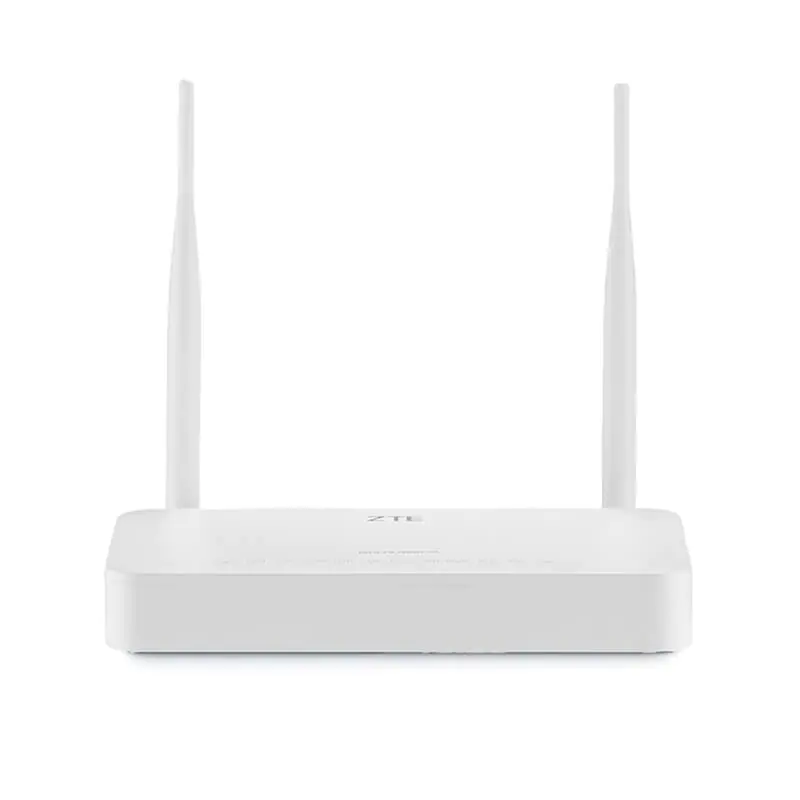

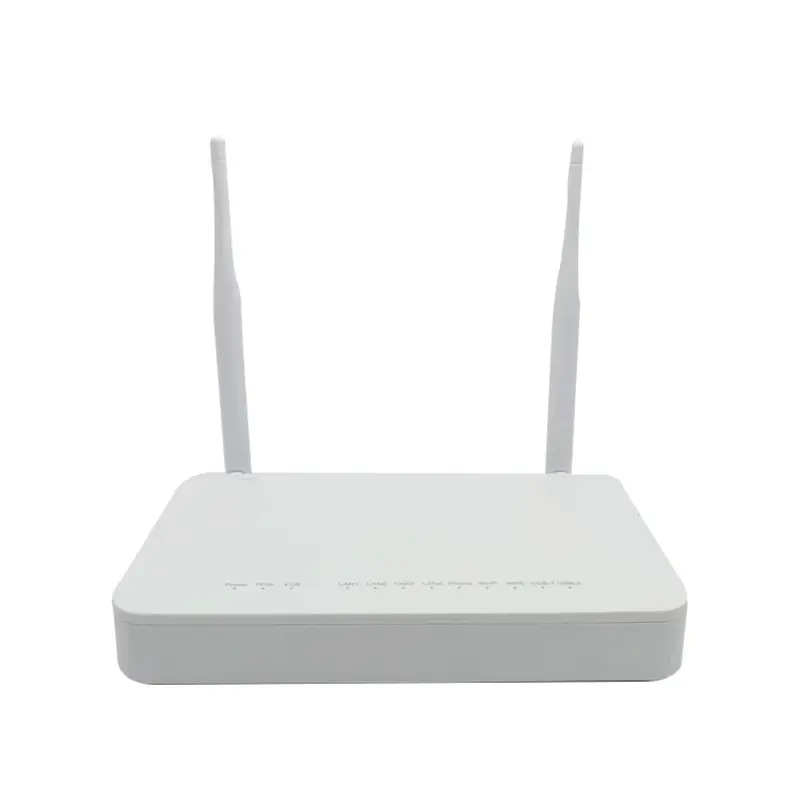

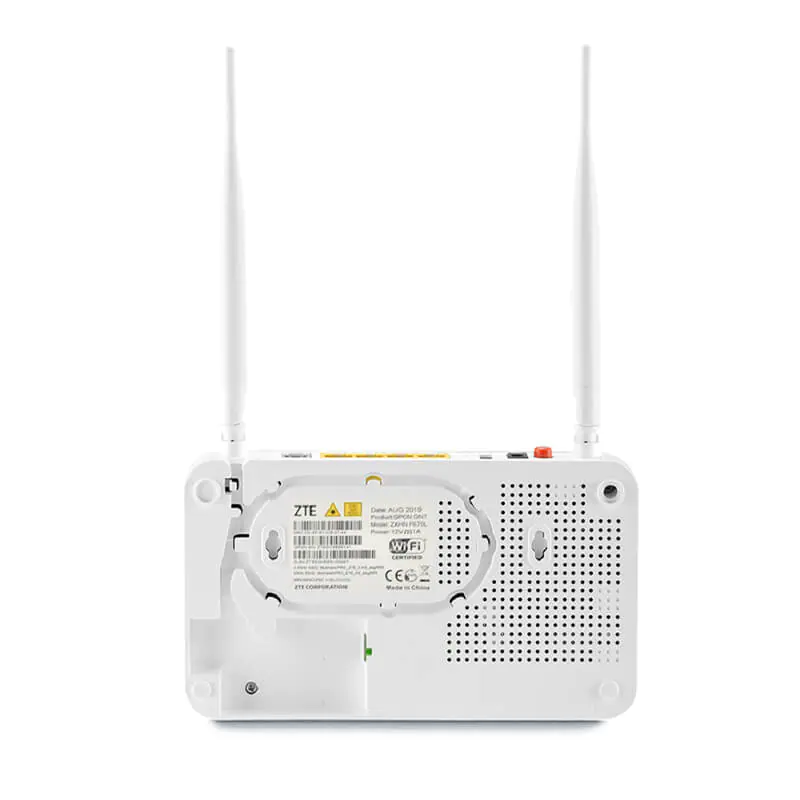

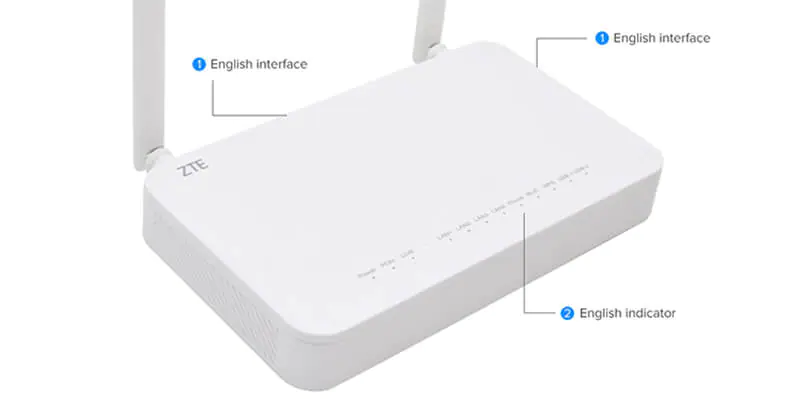

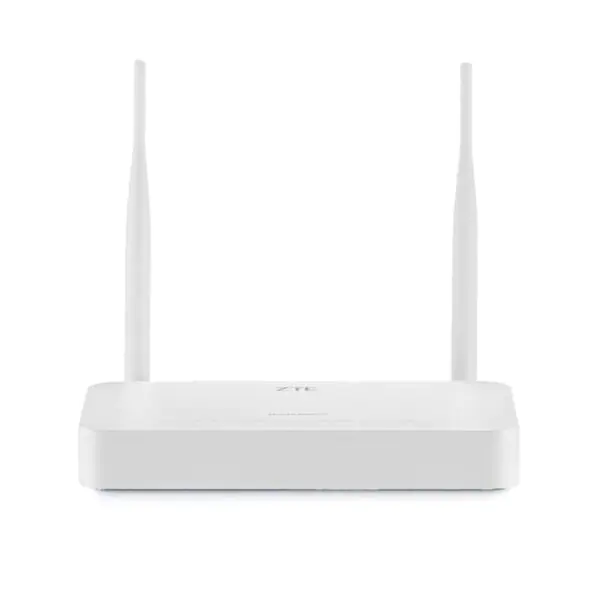

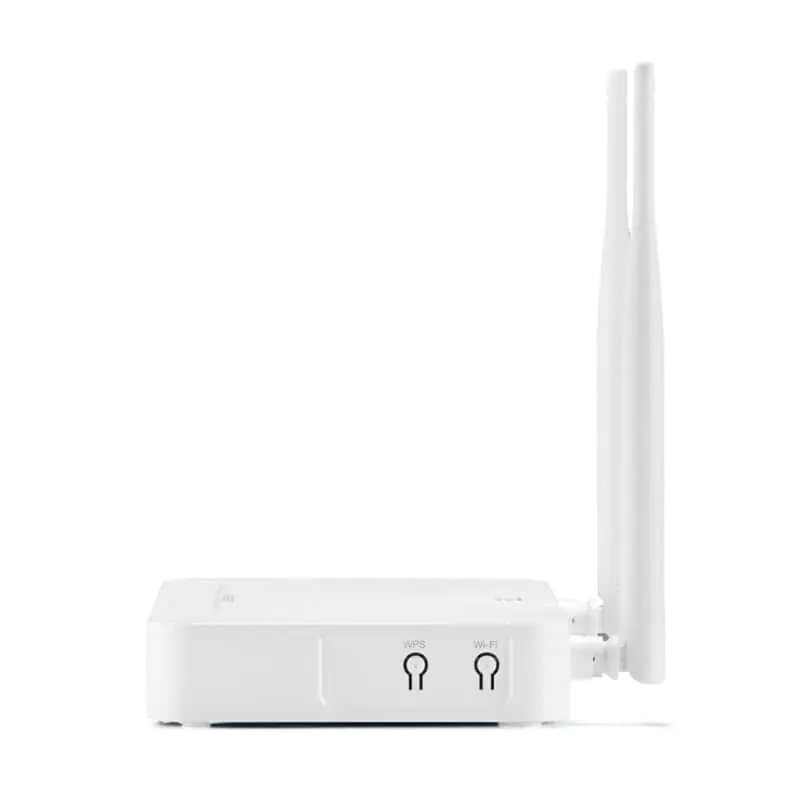

FTTH dual band wireless WiFi ZTE F670L F670 4GE GPON ONU ONT english firmware 2.4G 5G AC

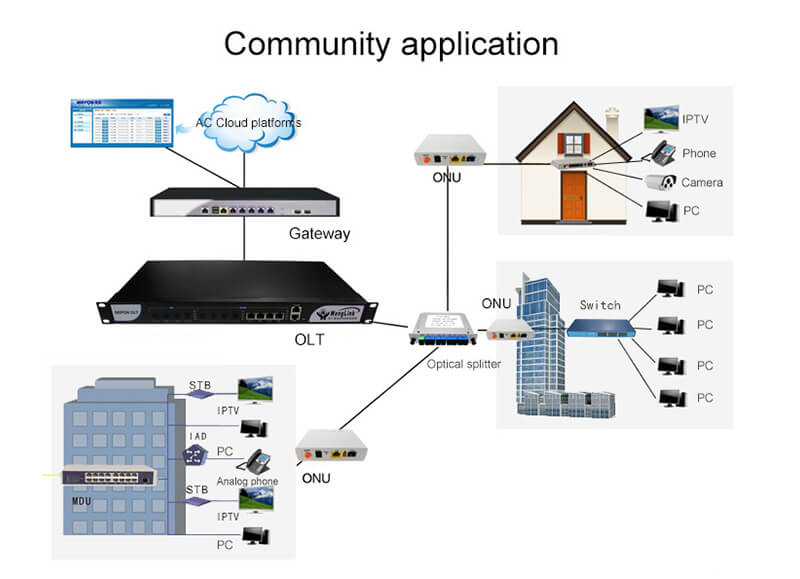

The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users. It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting.
The ZTE ZXHN F670L subscriber terminal is a dual-band Gigabit Premium Triple Play AC1200 GPON gateway. It features one GE and three FE LAN ports, one phone port, and next-generation multi-threaded Wi-Fi operating simultaneously in 2.4 GHz 2x2 over 802.11n and 5 GHz 2x2 over 802.11ac. Depending on customer requirements, antennas with a maximum gain of 5 dBi can extend Wi-Fi coverage and improve performance.

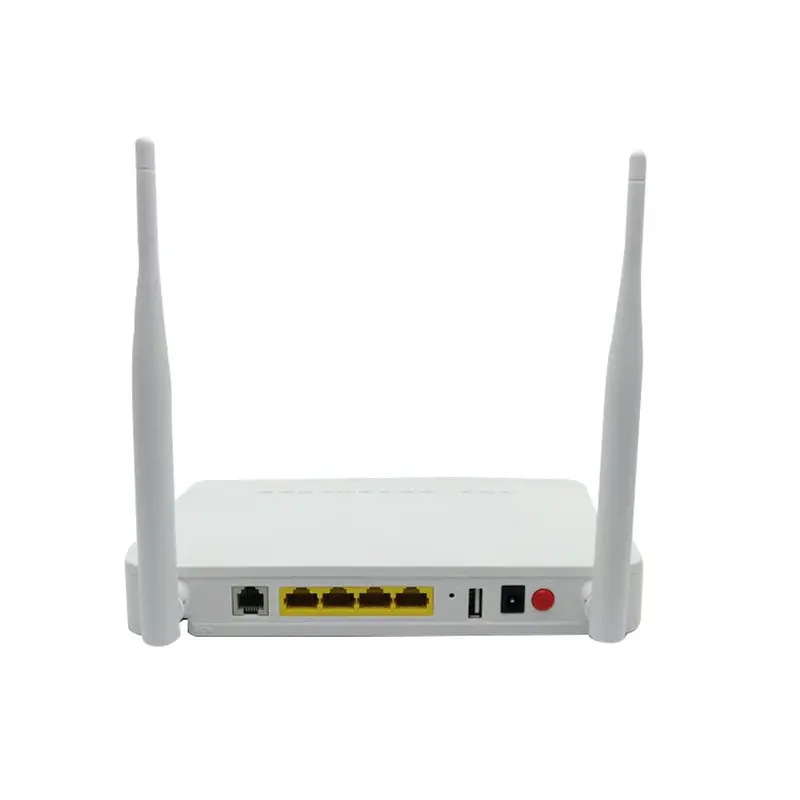

Interfaces
- 1 x SC / APC connector for GPON
- 4 x RJ-45 ports for GE interface
- 1 x RJ-11 port for VoIP
| Basic technical data | |
| Manufacturer | ZTE |
| Model | ZXHN F670L |
| PON interface | 1G/EPON port (EPON PX20 and GPON class B ) Receive sensitivity: ≤-28dBm Optical transmit power: 0 ~ 4dBm Transmission distance: 20km |
| Laser wavelength | Tx 1310nm Rx 1490nm |
| Optical interface | SC/UPC connector |
| LAN interface | 1 x 10/100/1000 Mbps 3 x 10/100 Mbit/s auto-adapter Internet interface. |
| Wi-Fi interface | IEEE802.11b/g/n compliant Operating frequency: 2.400-2.4835 GHz MIMO support, speed up to 300Mbps 2T2R, 2 external 5dBi antennas Support: Multiple SSID Channel: 13 Modulation type: DSSS, CCK and OFDM Coding scheme: BPSK, QPSK, 16QAM and 64QAM |
| CATV interface | RF, Optical Power: 2 ~ 18 dBm Optical reflection loss: ≥ 45 dB Optical receive wavelength: 1550 ± 10nm RF frequency range: 47 ~ 1000 MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV (-7dBm optical input) AGC range: 2 ~7dBm/-4 ~13dBm/-5 ~14dBm MER: ≥ 32dB(-14dBm optical input), >35(-10dBm) |
| Working condition | Temperature: 0 ℃ ~ 50 ℃ Humidity: 10% ~ 90% (non-condensing) |
| Storage conditions | Temperature: -30 ℃ ~ 60 ℃ Humidity: 10% ~ 90% (non-condensing) |

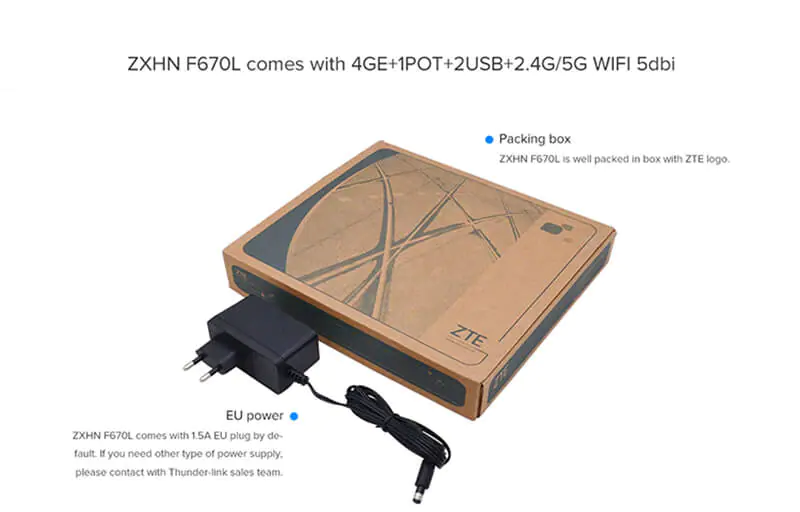

| Power supply | DC 12V/1.5A |
| Energy consumption | ≤ 6 W |
| Dimensions | 245 mm × 215 mm × 40 mm |
| Weight | 240 g |
At the network side, it supports 2.488 Gbps downlink and 1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2×2 2.4GHz & 802.11ac 3×3 5GHz concurrent. By using the ZXHN F670, the home users can access data, video and voice services, and enjoy high-speed internet connection.
