ZXDU88 S402 (V6.0) system is a DC power supply system with large capacity, consisting of multiple racks and providing –48 VDC
for switching equipment, data products etc.

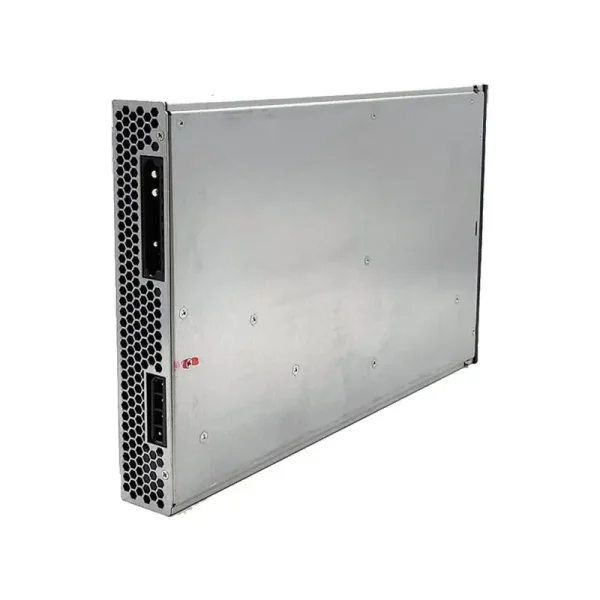

ZXD5000 rectifiers are installed in the rectifier rack (RECR), It uses advanced switching rectifier technology, with rated input three-phase AC 380VAC, and rated output power is 6kW. The rectifier peak efficiency is higher than 96.2%.
Features of Rectifier ZXD5000 Module:
High efficiency, saving more power
The peak efficiency of the module is higher than 96.2%,and in the sleep mode, the rectifier output power consumption is lower than 4W.
High power density, saving space and rental
The power density of the rectifier is 25.52W/in3 to save space, helping form a large-capacity power system up to 120kW in one rack.
High compatibility with Powerful expansion capacity
The full output is 360kW and the max configuration of ZXDU88 S402 system consists of four DC distribution racks, three rectifier racks and four AC distribution racks.
Digital design, high Reliability
Rectifier adopts DSP+MCU double digital circuit control and the system adopts CAN+RS485 double bus control. So the system is more reliable and the transmission speed is faster.
The peak efficiency of the module is higher than 96.2%,and in the sleep mode, the rectifier output power consumption is lower than 4W.
High power density, saving space and rental
The power density of the rectifier is 25.52W/in3 to save space, helping form a large-capacity power system up to 120kW in one rack.
High compatibility with Powerful expansion capacity
The full output is 360kW and the max configuration of ZXDU88 S402 system consists of four DC distribution racks, three rectifier racks and four AC distribution racks.
Digital design, high Reliability
Rectifier adopts DSP+MCU double digital circuit control and the system adopts CAN+RS485 double bus control. So the system is more reliable and the transmission speed is faster.
Specification：
Application
* GSM/CDMA center station
* Microwave repeat station
* Satellite BSC station
* Transmission equipment
* Other middle/large capacity situation
|
Key Features:
|
Benefits:
|
|
The hibernation power is less than 2W.
|
Saves electricity and reduces OPEX.
|
|
Wide operating temperature of rectifier modules range from -40 to 70°C
|
Highly adaptable to adverse environment saves expenditure for air conditioners.
|
|
Wide input voltage range from 80 to 300Vac
|
Adaptable to various and unstable power grids.
|
|
THD is less than 2.8%
|
Minimal interference to equipments on the same commercial power supply.
|
|
Space efficient cabinet with 400mm depth
|
Save 30% of space than that of the 600mm depth cabinet and reduces Capex
|
|
Front access design
|
Easy maintenance, the system can be positioned next to wall to save space.
|
|
RoHS conformed
|
Environmental-friendly
|
